Outdoor Fixed LED Display

Outdoor P10mm SMD 3535 LED Display

Model:LINSN-OF-P10-960X960
Outdoor LED Display
1 Years Warranty
CE,RoHs,FCC Approved
Product Description: P10mm Outdoor LED Display,Waterproof P10mm LED Display Screen
Inquiry Now

1.SMD LED with Best Color Uniformity and High Brightness.

2.High Refresh Rate and High Grey Grade with Reliable Driving IC.

3.Best Power Supply of Meanwell PSU of CE,UL Approved.

4.Waterproof IP65 LED Cabinet Can be Customized accroding to your LED Display Size.

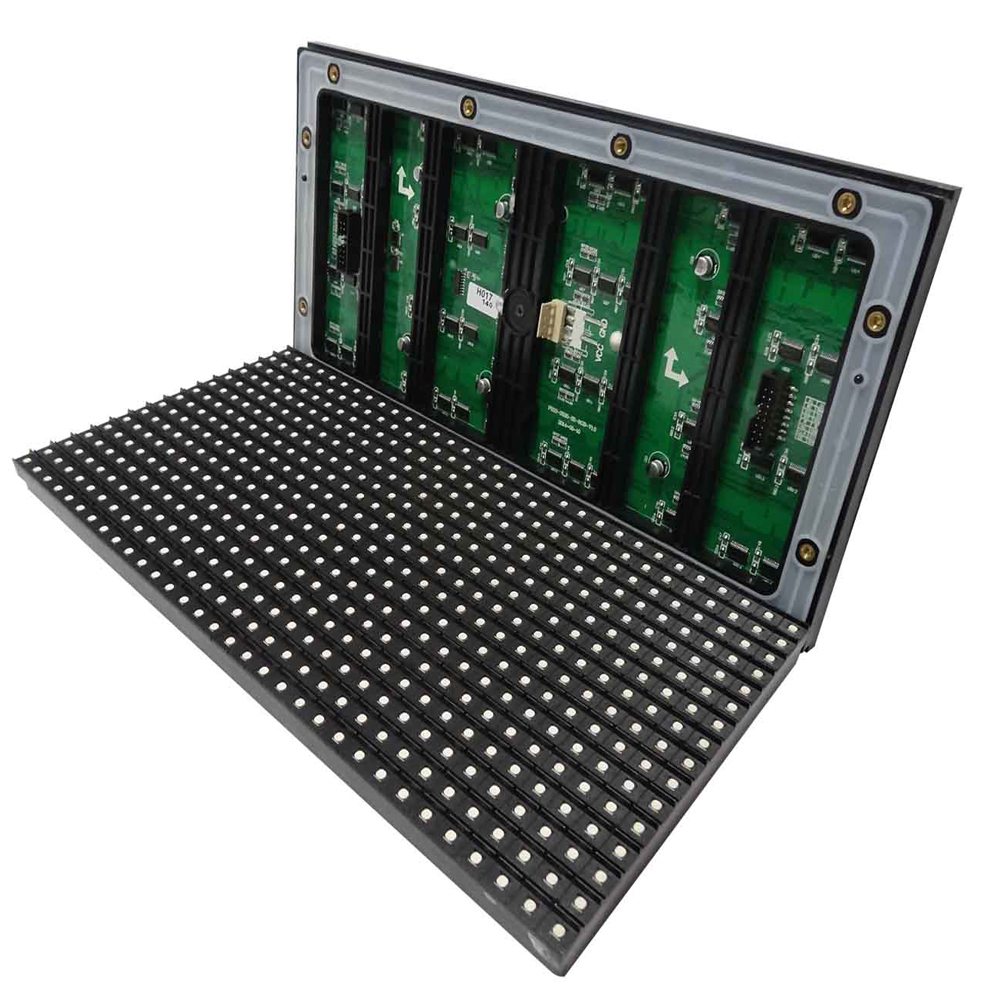

- Module P10 3in1 SMD 3535, module size 320x160mm, module resolution 32x16 pixels

- Power Supply 5V 40A

- Data Cable

- DC Cable

- 1 Year Warranty

LED Module
Pixel Pitch	10mm
Module Resolution	32(H)×16(V)
Module Size	320mm×160mm
LED Arrangement	3IN1 SMD 3535
Physical Density	10.000 dots/sqm (px/m²)
LED Cabinet
Cabinet Resolution	96x96 dots
Cabinet Dimension	960x960x140mm
Cabinet Weight	45 kg
Electricity Parameter
Optical Ratings
Brightness	6000-9000 cd/㎡
View Angle	140 degree (horizontal) 120 degree (vertical)
View Distance	10m
Gray Scale	16 bit
Display Color	16.7M
Brightness Adjustment	100 levels
Power Supply
Input Voltage	180V-240V
Maxim Power Consumption	650 W/m2
Average Power Consumption	300 W/m2
Operating Power Source	AC 110-220V 50-60Hz
Control System
Correction Scale Level	16bits
Frame Update Frequency	60-75Hz
Refresh Rate	1920Hz
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Transparent Rate	32%
Reliability
Operating Temp.	-40 ~ +60 Celsius degree
Operating Humidity	10-95% RH
Operating Life Span	100,000 hours
MTBF	8000 hours
Continuous Working Time	≥48 hours
Protecting Rating	IP65 (Waterproof)
Out of Control Pixel Rate	0.01%
