Outdoor:P4/P5/P6.67/P8/P10
Indoor:P2.5/P3.07/P4/P5/P10
Die-casting Aluminum LED Cabinet:640*960mm/960*960mm
Cabinet Weight:15kg/26kgs/pcs
Refresh Rate:2400
|
NO. |
Item |
Parameter |
|
1 |
Model |
Outdoor:P4/P5/P6.67/P8/P10 Indoor: P2.5/P3.07/P4/P5/P10 |
|
2 |
Pixel pitch |
Outdoor:4mm/5mm/6.67mm/8mm/10mm Indoor:2.5mm/3.07mm/4mm/5mm/10mm |
|
3 |
Pixel configuration |
1R1G1B |
|
4 |
LED type |
SMD 3in1 |
|
5 |
Module size |
320*160mm |
|
6 |
Cabinet size |
640mm*960mm/960*960mm |
|
7 |
Brightness |
Outdoor:≥5500 Nits Indoor: 900-1200 Nits |
|
8 |
Max. power consumption |
750W/m2 |
|
9 |
Ave. power consumption |
350W/m2 |
|
10 |
Cabinet Weight |
35kg/m2 |
|
11 |
Grey scale |
4096 level |
|
12 |
Colors |
6.87 billion |
|
13 |
Refresh rate |
1920Hz/2400HZ/3840HZ |
|
14 |
View angle |
Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20° |
|
15 |
Color temperature |
6500K |
|
16 |
Frame frequency |
≥60Hz |
|
17 |
Out of control pixel rate |
<1/10000 |
|
18 |
MTBF |
>5000 hours |
|
19 |
Lifespan |
50000 hours |
|
20 |
Control mode |
Synchronous display with control PC by DVI |
|
21 |
Working voltage |
AC 100/200v 50-60Hz |
|
22 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
23 |
Operation temperature |
-20 to +40 |
|
24 |
Operation Humdity |
10% to 80% |
|
25 |
Protection level |
IP65 Waterproof Outdoor/Indoor IP43 |

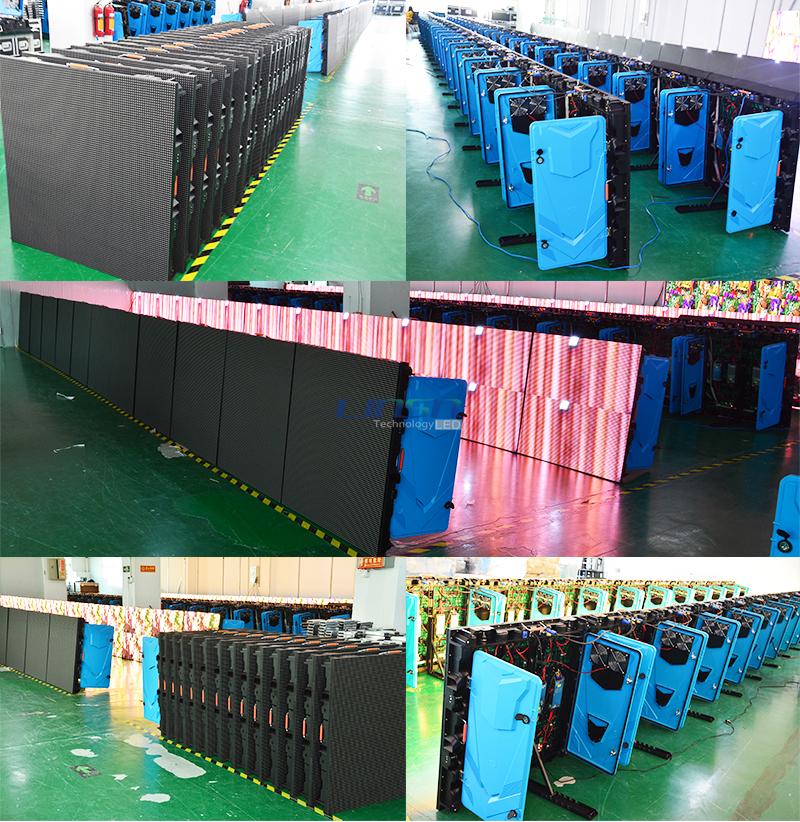

1.Multi-function usage: Available for both indoor and outdoor stadium perimeter application,also can be used for rental events LED screen.
2.Soft,replaceable, impact-resistant shaders protect LEDs from harm and will not injure players in the event of a collision.
3.Supler light design,with only 25kg/pcs,save both shipping costs and labor costs.
4.The display with two unique, rugged stands can be adjusted different angles showing a perfect image to live audiences and broadcast cameras.
5.The whole perimeter LED display system is designed according to the superior quality standard,Anti-interference security assurance.
1, Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The mask is designed with high capacity of impact resistence. Buffering arc-surface 'structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant
4, Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
5, Rubber protector for top of cabinet to protect the player from injury.
6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.
