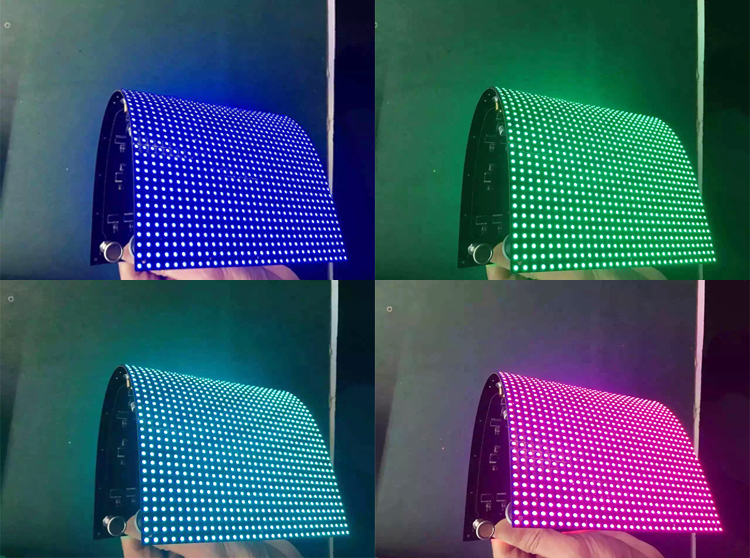

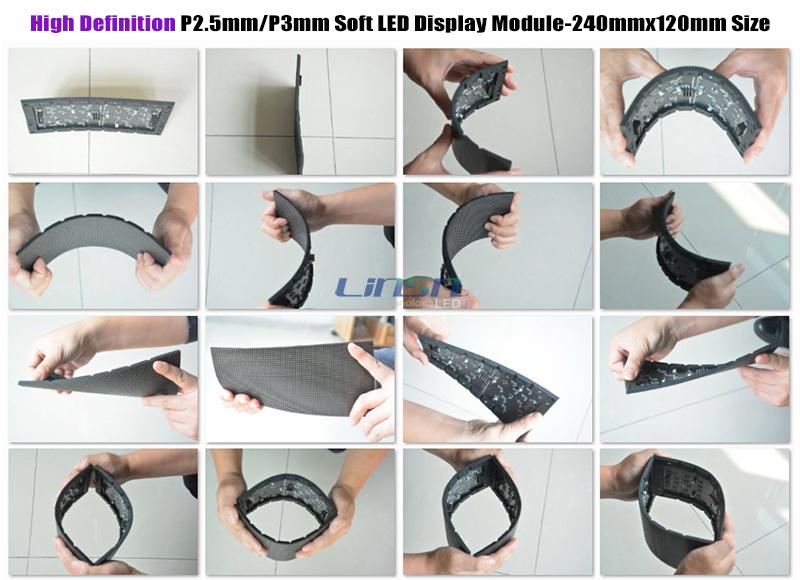

soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.
1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and effort,easy operation.
3.LED Modules with Soft Mask to achieve the best color uniformity and Grey grade and aslo protect the LEDs.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
6.Widely applied in shaped stage background/exhibition/shopping mall etc.
Flexible LED Display Screen Specifications:
|
Indoor Fixed Series -Parameters |
||||
|
Model |
LINSN-SL-P4 |
LINSN-SL-P5 |
LINSN-SL-P6 |
LINSN-SL-P8 |
|
Pixel Pitch |
4 mm |
5 mm |
6 mm |
8 mm |
|
LED Type |
SMD2121 |
SMD2121 |
SMD3528 |
SMD3528 |
|
Configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Module Size |
256*128 mm |
320*160 mm |
192*192 mm |
256*128 mm |
|
Pixel Density |
62500 pixel/㎡ |
40000 pixel/㎡ |
27777 pixel/㎡ |
15625 pixel/㎡ |
|
Refresh Rate |
≥ 1920Hz |
≥ 1920Hz |
≥ 1500Hz |
≥ 1920Hz |
|
Gray Scale |
16 Bit |
16 Bit |
16 Bit |
16 Bit |
|
Brightness |
≥ 1200 cd/㎡ |
≥ 1500 cd/㎡ |
≥ 1800 cd/㎡ |
≥ 1200 cd/㎡ |
|
Scan Way |
1/16 |
1/16 |
1/8 |
1/8 |
|
Frame Rate |
50HZ~60HZ |
50HZ~60HZ |
50HZ~60HZ |
50HZ~60HZ |
|
Viewing Angle |
H:140°, V:140° |
H:140°, V:140° |
H:140°, V:140° |
H:140°, V:140° |
|
Power Consumption |
20W/Panel |
20W/Panel |
15W/Panel |
20W/Panel |
|
Module Weight |
0.35kg/pc |
0.45kg/pc |
0.3kg/pc |
0.35kg/pc |
|
Control System |
Nova/Linsn/Dbstar |
Nova/Linsn/Dbstar |
Nova/Linsn/Dbstar |
Nova/Linsn/Dbstar |
|
Operation System |
Windows XP/7/10 |
Windows XP/7/10 |
Windows XP/7/10 |
Windows XP/7/10 |
|
Working-Temperature |
-20℃~60℃ |
-20℃~60℃ |
'-20℃~60℃ |
-20℃~60℃ |
|
Working Humidity |
10%~90% RH |
10%~90% RH |
10%~90% RH |
10%~90% RH |
|
Input Voltage |
AC 110~220 V |
AC 110~220 V |
AC 110~220 V |
AC 110~220 V |
|
Blind spot rate |
≤0.01% |
≤0.01% |
≤0.01% |
≤0.01% |
|
MTBF |
35000 Hour |
35000 Hour |
35000 Hour |
35000 Hour |
|
Lifespan |
100000 Hour |
100000 Hour |
100000 Hour |
100000 Hour |
|
Certification |
CCC,CE,RoHs,ETL |
CCC,CE,RoHs,ETL |
CCC,CE,RoHs,ETL |
CCC,CE,RoHs,ETL |
1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4.Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5.Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
