Flexible Soft LED Display

P5mm Flexible LED Display Panel,P5mm Soft LED Module

P5mm Flexible LED Display Panel,P5mm Soft LED Module

Model:LINSN-SL-P5
Soft LED Display Module
3 Years Warranty
In Stock For Sale
Product Description: P5mm Soft LED Display Module,P5mm Flexible LED Panel With MBI5124 Driving IC and Kinglight Gold Wire with High Refresh Rate and Best Color Uniformity
Inquiry Now

P5mm flexible led display Panel,P5mm soft led module With MBI5124 Driving IC and Kinglight Gold Wire with High Refresh Rate and Best Color Uniformity

soft led display Panel Features:

soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.

1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.

2.Assembling screen with soft led modules directly,saving time and effort,easy operation.

3.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.

4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.

5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.

6.Widely applied in shaped stage background/exhibition/shopping mall etc.

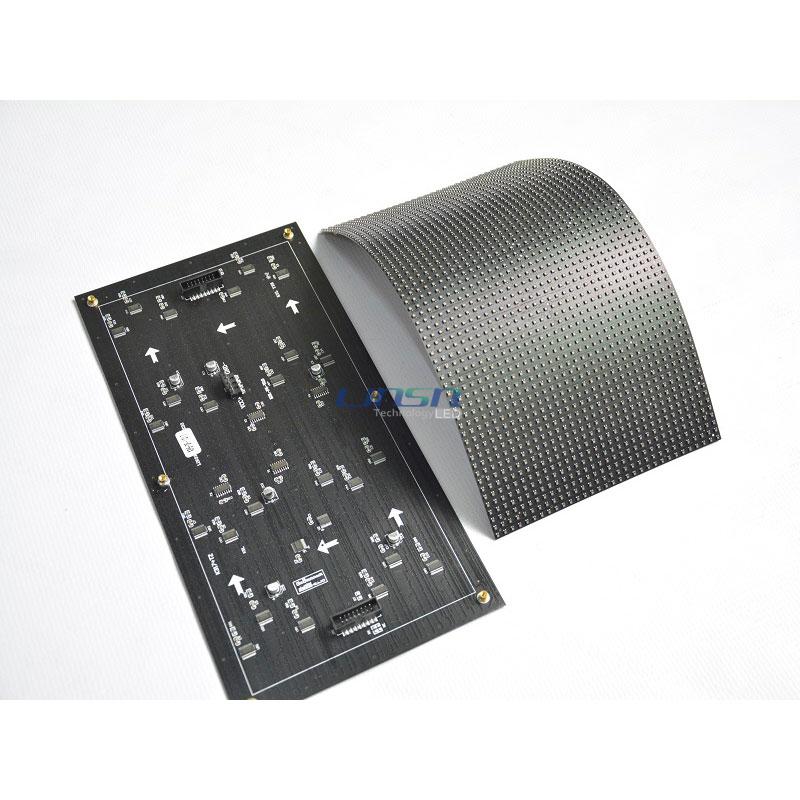

soft led display module

soft led panel

Flexible led display Screen Specifications:

Indoor Fixed Series -Parameters
Model	LINSN-SL-P4	LINSN-SL-P5	LINSN-SL-P6	LINSN-SL-P8
Pixel Pitch	4 mm	5 mm	6 mm	8 mm
LED Type	SMD2121	SMD2121	SMD3528	SMD3528
Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module Size	256*128 mm	320*160 mm	192*192mm	256*128 mm
Pixel Density	62500 pixel/㎡	40000 pixel/㎡	27777 pixel/㎡	15625 pixel/㎡
Refresh Rate	≥1920Hz	≥1920Hz	≥1500Hz	≥1920Hz
Gray Scale	16 Bit	16 Bit	16 Bit	16 Bit
Brightness	≥1200 cd/㎡	≥1000 cd/㎡	≥1200 cd/㎡	≥1200 cd/㎡
Scan Way	1/16	1/16	1/8	1/4
Frame Rate	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ	50HZ~60HZ
Viewing Angle	H:140°, V:140°	H:140°, V:140°	H:140°, V:140°	H:140°, V:140°
Max.Current	4A/Panel	4A/Panel	3A/Panel	4A/Panel
Avg.Power Consumption	20W/Panel	20W/Panel	15W/Panel	20W/Panel
Control System	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar	Nova/Linsn/Dbstar
Operation System	WindowsXP/7/10	WindowsXP/7/10	WindowsXP/7/10	WindowsXP/7/10
Working-Temperature	-20℃~60℃	-20℃~60℃	'-20℃~60℃	-20℃~60℃
Working Humidity	10%~90% RH	10%~90% RH	10%~90% RH	10%~90% RH
Input Voltage	5V DC input	5V DC input	5V DC input	5V DC input
Data Input	Hub75D (IDC16)	Hub75D(IDC16)	Hub75D(IDC16)	Hub75D(IDC16)
MTBF	35000 Hour	35000 Hour	35000 Hour	35000 Hour
Lifespan	100000 Hour	100000 Hour	100000 Hour	100000 Hour
Certification	CCC,CE,RoHs,ETL	CCC,CE,RoHs,ETL	CCC,CE,RoHs,ETL	CCC,CE,RoHs,ETL

Flexible LED Display Panel Advantages:

1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4.Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5.Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
