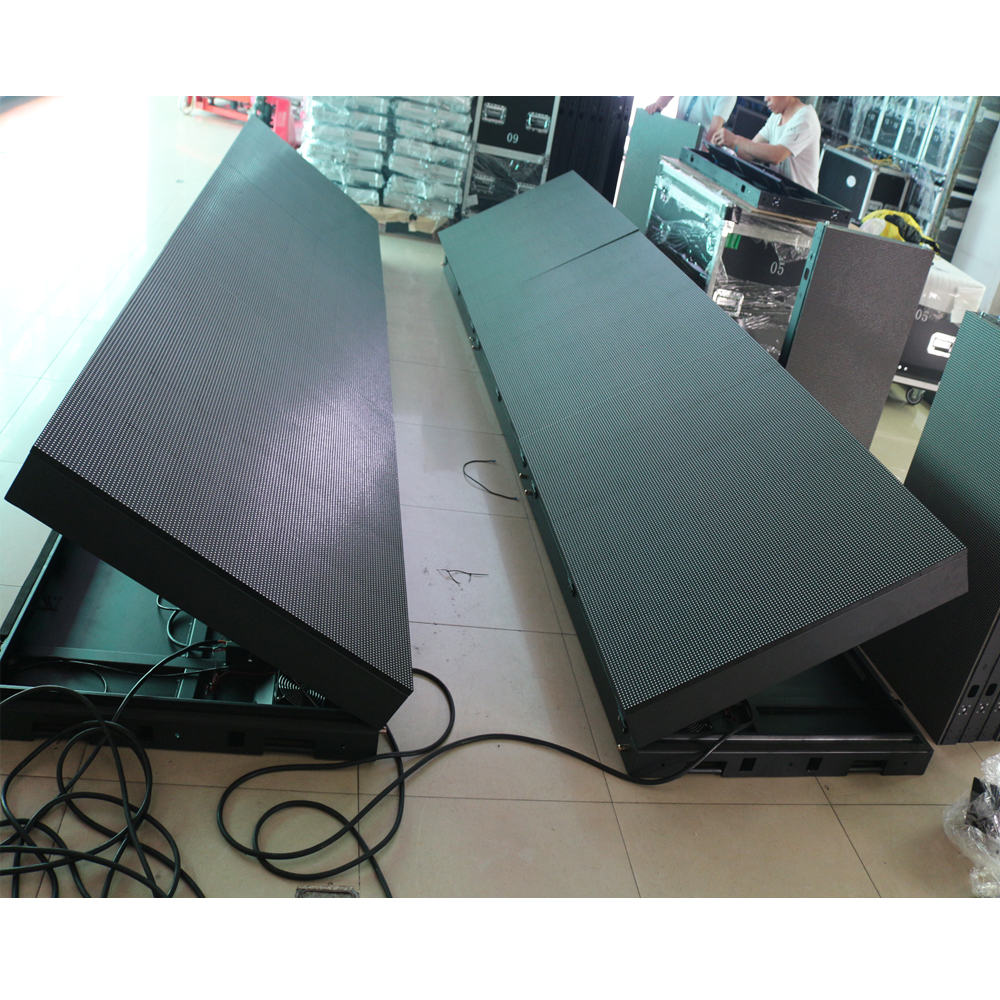

Outdoor Fixed LED Display

P8mm Front Access LED Video Wall

Model:UNIT-P8/O/F/-1280X768
Frontal Opening LED Display
CE,Rohs,FCC Approved
2 Years Warranty
Product Description: Ph8mm Frontal Access LED Video Wall 1280mmx768mm ,Outdoor Frontal Opening LED Display Screen of High Brightness
Inquiry Now

Ph8mm Frontal Access led video wall 1280mmx768mm ,Outdoor Frontal Opening LED Video Wall of High Brightness

Attention: Cabinet size can be Customized. Frontal Access Service,High Brightness & Outdoor Waterproof, 2 Years Warranty, linsn led Control System.

P8 SMD Outdoor LED Display Specification:

Item	Techinical Specifications
Pixel Pitch	8mm
LED Configuration	SMD 3-in-1
Pixel Density	15625 pixels/sq.m
Module Size	256mm*128mm
Module Resilution	32pixel*16pixel
Cabinet Size	1280mm*768mm
Cabinet Resolution	160pixels*96pixels
Cabinet Material	Iron/Aluminum
Cabinet weight	50kg/sqm or 40kg/sqm
Brightness	6500cd/sqm
Colour temperature	3500K-9500K(adjustable)
Viewing Angle	H:140°/V:140°
Brightness Uniformity	≥97%
Brightness Adjustment	Manual/Auto/Programmable
Ave. Power consumption	450 W/sqm
Max. Power consumption	800W/sqm
Input Voltage	AC220V/50HZ or AC110V/60HZ (±10%)
Output Voltage	5V,40A
Best Viewing Distance	8m~200m
Contrast ratio	5000:1
Frame rate	50/60 Hz/sec
Refresh rate	≥1200Hz
Grey scale levels	R(256bit) x G(256bit) x B(256bit)
Display Colors	R(1024) x G(1024) x B(1024)
Protection Level	IP65
Life-span	100,000 hours
MTBF	10,000 hours
Malfunction dot rate	< 0.0001
Storage Temp/Humidity	-30~+60℃/10~90%RH
Operating Temp/Humidity	-20~+50℃/10~90%RH
Drive Mode	1/4 scan
Control System	Synchronous for LINSN,Novastar/Asynchronous/Wifi/3G Wireless for choice
Input Signal	RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
PC Operating System	Microsoft Windows 7, 8, 98, 2000, XP and Vista

Outdoor Frontal Opening led display screen Product Features:

1. High resolution 15625pixels/sqm, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the high brightness, high definition, seamless and flatness
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span
4. Wide viewing distance, high definition, good uniformity
5. Brightness can be adjusted automatically according to different surroundings by ledstudio
6. Can be set to open and close the screen automatically by linsn ex901 led card
7. Can be mounted on the wall, by pole support on the street, on top of building, etc
8. Support all types of video, graphics, animation, message, etc, support PC online or offline control, also can remote control
with linsn asynchronous system, or Wifi control, 3G control.
9. Widely used for outdoor commercial advertising, shopping mall advertising, stage rental, traffic advertising, mobile truck
advertising, sports stadium advertising etc.
