Flexible Soft LED Display

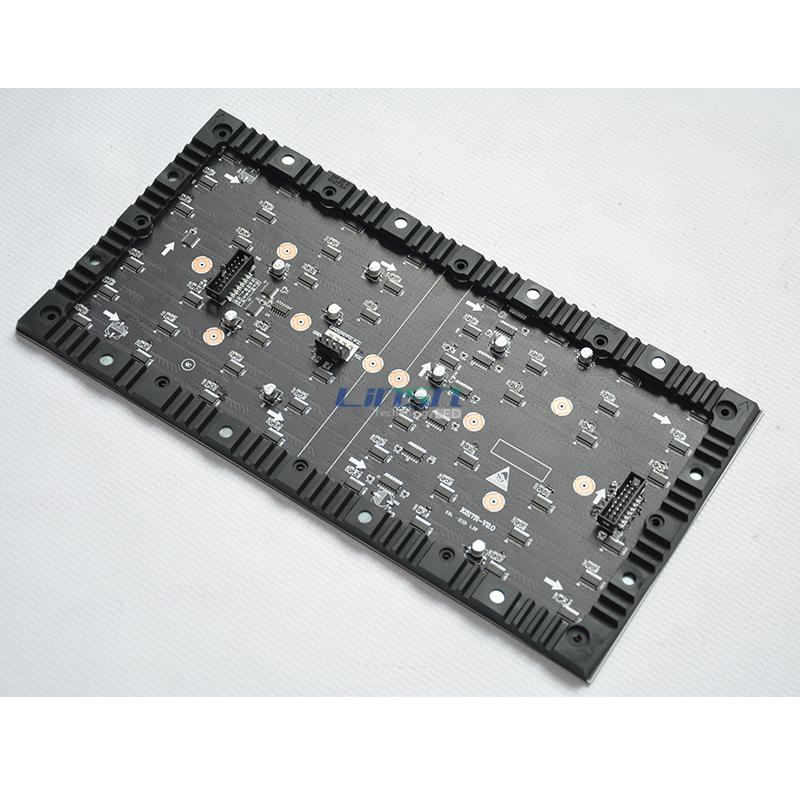

P2.5mm 320mmx160mm Soft LED Display Module

P2.5mm 320mmx160mm Soft LED Display Module

LINSN-SF-P2.5-M
Soft LED Display Module
3 Years Warranty
CE,RoHs,FCC Approved
Product Description: P2.5mm Super Flexible Soft LED Display Module with 320mmx160mm Flexible LED Panel size,Nationstar LEDs Best Color Uniformity,1920HZ High Refresh Rate.
Inquiry Now

P2.5mm Super Flexible Soft led display module with 320mmx160mm Flexible LED Panel size,Nationstar LEDs Best Color Uniformity,1920HZ High Refresh Rate.

flexible <a href=../index.html target='_blank'>led display screen</a>

P2.5 Indoor Flexible LED Display Module Features:
Module Specifications
1	Pixel Pitch	2.5mm
2	Pixel Configuration	SMD3in1
3	Module Resolution	128x64 pixels
4	Module Pixles	8,192 pixels/module
5	Module Size	320x160mm
Specifications
1	Screen Brightness	≥1000cd/m2
2	Driving Method	1/32 scan
3	Mini Viewing Distance	2.5m
4	Max. Power Consumption	580W/m2
5	Average Power Consumption	200W/m2
6	Gray Level	14bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥1920Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Screen Plainness	<±1mm
17	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
18	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
19	Control Mode	Synchronous display with control PC by DVI
20	Control System	DVI video card + full color control card + fiber system( optional)
21	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22	Interface	Standard Ethernet
23	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m

P2.5mm Super Flexible soft led display Panel Features:

Flexible LED Panel is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving, it won't break LEDs as well design of mask covers.

<a href=../flexible-soft-led-display.html target='_blank'>soft led panel</a>
1.Module with small-unit and flexible design,makes possiblity of more complicated shapes for the video show.
2.Assembling screen with soft led modules directly,saving time and effort,easy operation.
3.Magnet connection,easy to assemble & disassemble,it is frontal service maintenance.
4.No cabinet metal frame,drastically deducting the screen weight.we can design any shape of structure as you need.
5.Strict quality control and long-term application experience verified the stablity and excellent performance by using Epistar LED, and MBI5124 Driving IC for high refresh rate and performance.
6.Widely applied in shaped stage background/exhibition/shopping mall etc.

Flexible LED Display Panel Advantages:

1.High bright 3 in 1 LED SMD lamps with best plastic package suite are not easy to be damaged and ensures the best viewing angle.
2.Constant current chip driving IC MBI514 to reduces the power consumption and prompts the stability,Simple modular design for easy maintanence.
3Neat appearance,light weight,small size and safe 5V low voltage power supply system all make the module more attractive.
4.Due to its locating holes and 4 in bracket design,it can be used on indoor curved led display and circle led screen.
5.Besides,high definition effect comes with color uniformity and soft color is suitable for indoor close range viewing.
