Detachable Indoor NG500  Series rental led display

linsn led NG500  Series Rental LED Display New design incorporates many aesthetic elements, adopts High strength die-casting aluminum, only 7.5kg per cabinet.better performance with high definition visual display.

LINSN NG500 Series Can Mix Working With LINSN NG1000 Series

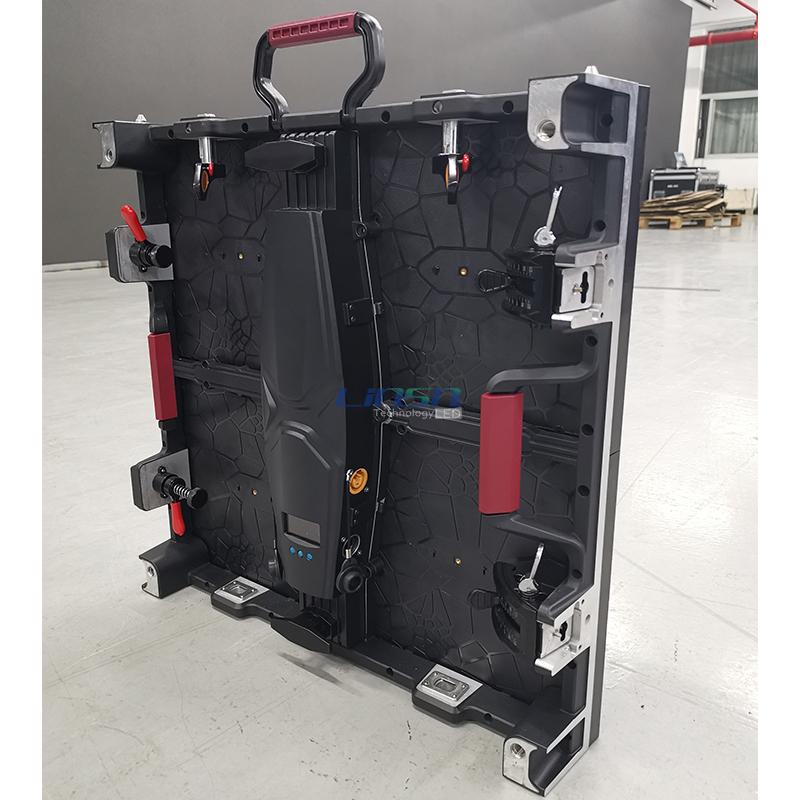

Lightweight and Thin

Linsn LED NG500 series rental LED display cabinet is portable and good stability with weight of 7.5kg/cabinet and thickness of 85mm.the feature of lightweight make the LED display is easy to carry, transport and install,
saving good amount of money on your labor costs.

LED Display Parameters

Pixel Pitch	2.604mm	2.84mm	2.976mm	3.91mm
Application	Indoor	Indoor	Indoor	Indoor
Pixel Density	147456	123904	112896	65536
Pixel Configuration	SMD1515	SMD2121	SMD2121	SMD2121
Scan	1/32	1/22	1/28	1/16
MAX Power Con	680w/Sq.m	640w/Sq.m	640w/Sq.m	620w/Sq.m
AVG Power Con	350w/sq.m	320w/sq.m	320w/sq.m	300w/sq.m
Module Dimension	250x250mm	250x250mm	250x250mm	250x250mm
Module Resolution	96x96 dots	88x88 dots	84x84 dots	64x64 dots
Cabinet Dimension	500x500x85mm	500x500x85mm	500x500x85mm	500x500x85mm
Cabinet Resolution	192x192 dots	176x176 dots	168x168 dots	128x128 dots
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg
Service Access	Front / Rear Detachable	Front / Rear Detachable	Front / Rear Detachable	Front / Rear Detachable
Rotation Angle	-15° and +15°	-15° and +15°	-15° and +15°	-15° and +15°
Brightness (nits)	≥1000	≥1000	≥1000	≥1000 / ≥5000
Refresh Rate (HZ)	1920-3840	1920-3840	1920-3840	1920-3840
Grey Scale (bit)	16	16	16	16
Viewing Angle (H/V)	160 / 160	160 / 160	160 / 160	160 / 160
IP Rate	IP54	IP54	IP54	IP54
Input Voltage (AC)	110 / 240V	110 / 240V	110 / 240V	110 / 240V

Perfect Structure

Linsn has the domestic top design team,the design innovation has its own unique philosophy,with a number of core technologies.Innovative structural design,avant-garde body lines,give you extraordinary experience.

Excellent Quality

LINSN NG500 Series Rental LED Display is a excellent LED display product with high performacne video output and uniformity color.The display delivers perfect visuals while keeping the framerate smooth and stable.

Full Front Maintenance

LINSN NG500 Series Rental LED Display is dual maintenance product, not only 100% front accessable but also can do rear service. .The LED panels are magnetic and can be removed by tools from front side in 5 seconds.
easy and convient, save you cost and labor

Seamless Display and Better Visual Effects

The advanced LED display cabinet structure produces seamless splicing image and video display, offering you the perfect visual experience you desire from any angles.The picture quality confronts viewers with an entirely new sensory experience.

Curved Installation

LINSN NG500 Series Rental LED Display is designed with cured lock to make the LED display has the ability of curved Installation to meet various requirement of installation.The cabinet can be curved with every 2.5° between -15°and 15°, which can make convex and concave.

INTELLIGENT MANAGEMENT

LINSN NG500 Series Rental LED Display cabinet backside with status display which can show the working conditionssuch as working temperature, working voltage, the screen lifespan and the DVI signal.

Excellent Heat Dissipation Performance

With a special heat dissipation structure, the heat dissipation is excellent. Fanless design, absolutely silent operation.

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.Seeing from any angles, it would be still the natural and clear image in an LED display.

High Refresh Rate, High Contrast, High Brightness

LINSN NG500 Series Rental LED Display features high brightness, high contrast, high refresh rate and high gray scale,the LED display with vivid image, clean video display and gorgeous picture quality.
