Outdoor Rental LED Display

Die Casting Alu P4.81mm Outdoor Rental LED Display

Model:LINSN-OR-P4.81-500X500
Outdoor Rental LED Display
3 Years Warranty
CE,RoHs,FCC UL Approved
Product Description: Die Casting Alu P4.81mm Outdoor Waterproof Rental LED Display,High Brightness 4.81mm 500x500mm Rental LED Screen With 104x104 dots For Each Rental LED Panel
Inquiry Now

Die Casting Aluminum P4.81mm Outdoor Waterproof rental led display,High Brightness 4.81mm 500x500mm rental led screen With 104x104 dots of Each rental led panel

LED Cabinet Specifications:
Pixel Pitch	4.81mm
Pixel Constitution	SMD 3IN1
LED Encapsulation	SMD 1921
Module Size	250mm*250mm
Die Casting Aluminum LED Cabinet Size	500mm*500mm
LED Cabinet Resolution	104*104 dots
LED Cabinet Weight	7.5kg/cabinet
LED Display Parameters:
Display Resolution	43,264 dots/sqm
Brightness	5000-5500 cd/m2 (nits)
Recommended Viewing Distance	≥4m
Optimum Viewing Angle	140°/140°
Power Supply Voltage	110V/220V Switchable
Max Power Consumption	850W/sqm
Driving Method	1/13 Scan
Gray Scale	≥16.7M colors(Synchronized)
Refresh Frequency	≥1920Hz
Frame Frequency	≥60-75Hz
Weather Protection	IP65
Operating Temperature	-20~50(-40~60optional)
Operating Humidity	10%-90%
Average No Falure Time	≥5000hours
Life Span	≥100,000hours
LED Control System	Linsn/Novastar/Colorlight/Huidu/Xixun etc
Warranty	3 Years Warranty
Certificates	CE,RoHs,FCC,UL,CCC

The LEDs we use for outdoor rental led screen that have the high brightness and high reliability and contrast,wide view angle and good consistency which meet the need of high refresh rate,high gray scale and keep natural color at one time with best color uniformity.
rental led chips
To achieve the best visual performance of indoor rental led display,we use the best Driving IC,such as MBI5124,ICN2038 MY9868 with high refresh rate >1920HZ,high grey level with latest technology.
high refresh rate led screen

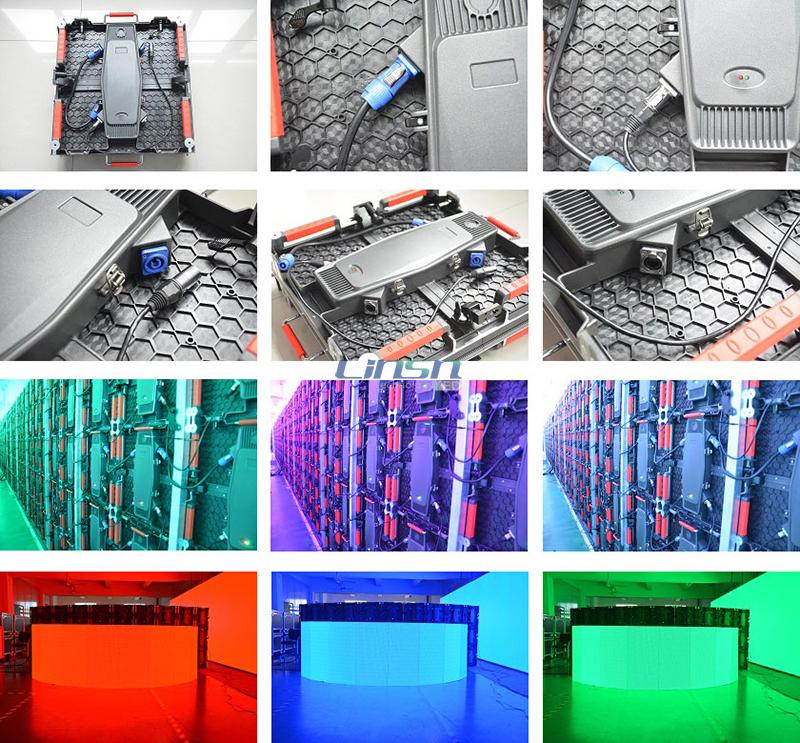

Latest Die Casting Aluminum Cabinet Design,it can be used for indoor 2.98mm,3.91mm,4.81mm,and outdoor 3.91mm,4.81mm.

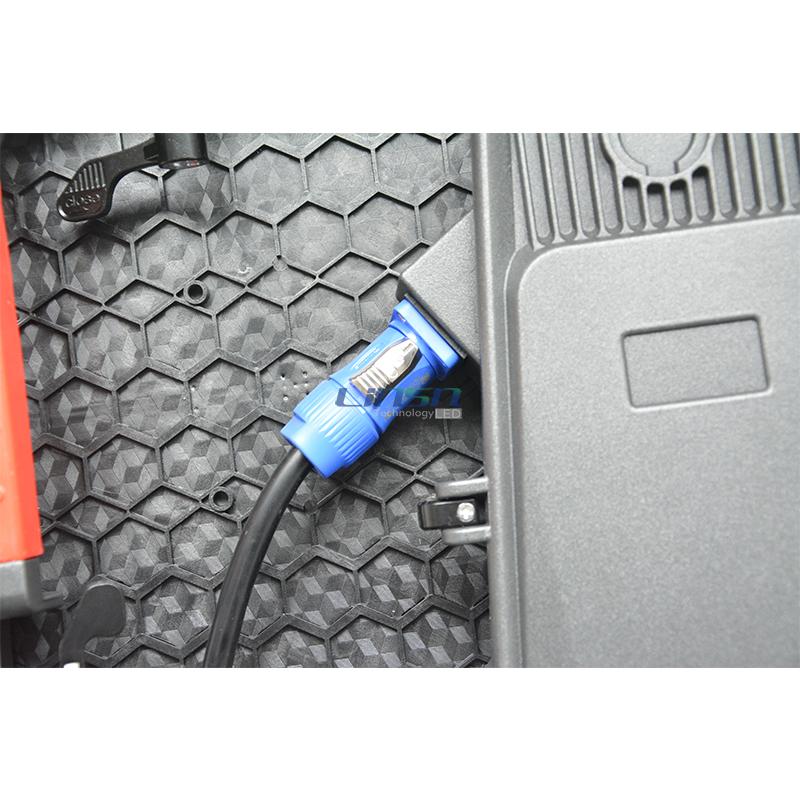

LED Cabinet Size: 500mmx500mm ,LED Cabinet Weight:7.5kg,Frontal and Rear Service,Curved or Straight Installation.

led video processor can receive different signals like HDMI,SDI,VGA from DVD or other video player,to show the best video effects for your led display applications.

Noramlly, Rental LED Display Cabinet packed by Flight Case Packing, For some special purpose linsn led provide Carton Packing and Wooden Box Packing to save your cost.

led display packing
LINSN LED has builded a long term relationship with LED Display Material Supply,such as Nichia,Cree,Epistar LED,aslo the Nationstar LED,Meanwell LED Power Supply,Linsn,Novastar etc.
led display partner
LINSN LED has the Strictly LED Display Quality Control From the Materials, Such as LED Chips,Driving IC,LED Module and LED Cabinet to LED Display Panel. To Achieve The Best Effects For LED Screen and LED Display Control System Solutions.
