Outdoor Fixed LED Display

Outdoor P4mm SMD LED Display Screen

Model:LINSN-OF-P4-1024X768
Outdoor LED Display
3 Years Warranty
CE,RoHs,FCC Approved
Product Description: P4mm Outdoor LED Video Wall,Waterproof P4mm LED Display Screen
Inquiry Now

1.SMD LED with Best Color Uniformity and High Brightness.

2.High Refresh Rate and High Grey Grade with Reliable Driving IC.

3.Best Power Supply of Meanwell PSU of CE,UL Approved.

4.Waterproof IP65 LED Cabinet Can be Customized accroding to your LED Display Size.

Ph4mm Outdoor LED Video Wall Specifications:

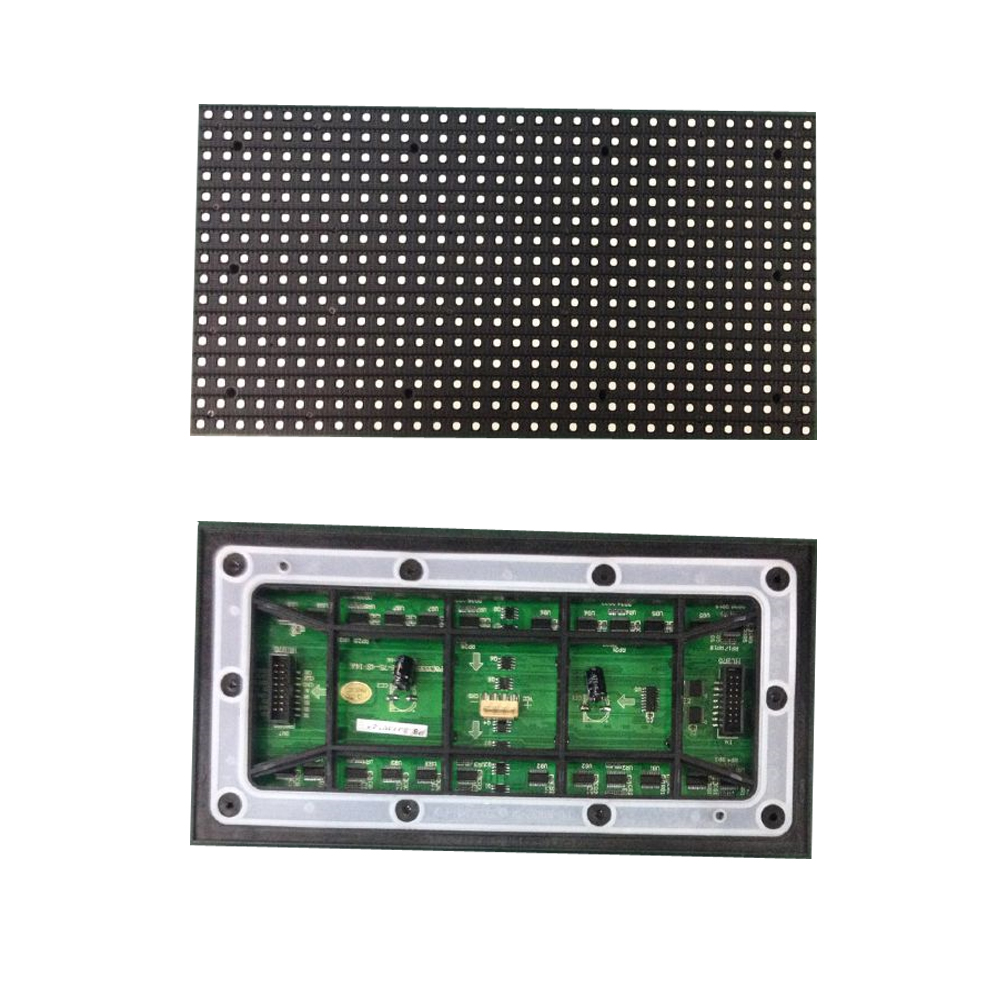

LED Module
Resolution	64(H)×32(V)
Pitch	4mm
Density	62500 pixels/㎡
LED Arrangement	SMD2727
Driver Mode	Dynamic 1/8 Duty constant current
Size	256mm×128mm
Mask	Pure Black mask-high contrast screen
LED Cabinet
Cabinet Size	768mm,1024mm,1280mm are Avaliable
Cabinet Material	Steel or Aluminum
Weight	About 55 kg/m2
Electricity Parameter
Optical Ratings
Brightness	≥6000cd/㎡
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	4m-40m
Gray Scale	8bits input, correction with 14bits
Display Color	16.7M
Brightness Adjustment	100 levels
Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	1150 W/m2
Average Power Consumption	650 W/m2
Control System
Correction Scale Level	16bits
Frame Update Frequency	60Hz
Screen Refresh Frequency	480Hz
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.	-20-60 Celsius degree
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Continuous Working Time	≥48 hours
Protection Level	IP65 Waterproof
Out of Control Pixel Rate	0.01%
