Outdoor Rental LED Display

Outdoor P10mm DIP RGB Rental LED Cabinet

Outdoor P10mm DIP RGB Rental LED Cabinet

Model:UNIT-P10-RGB-640X640
Rental LED Display
CE,Rohs,FCC Approved
2 Years Warranty
Product Description: Outdoor P10mm DIP RGB Rental LED Display 640mmx640mm Outdoor Rental LED Video Wall
Inquiry Now

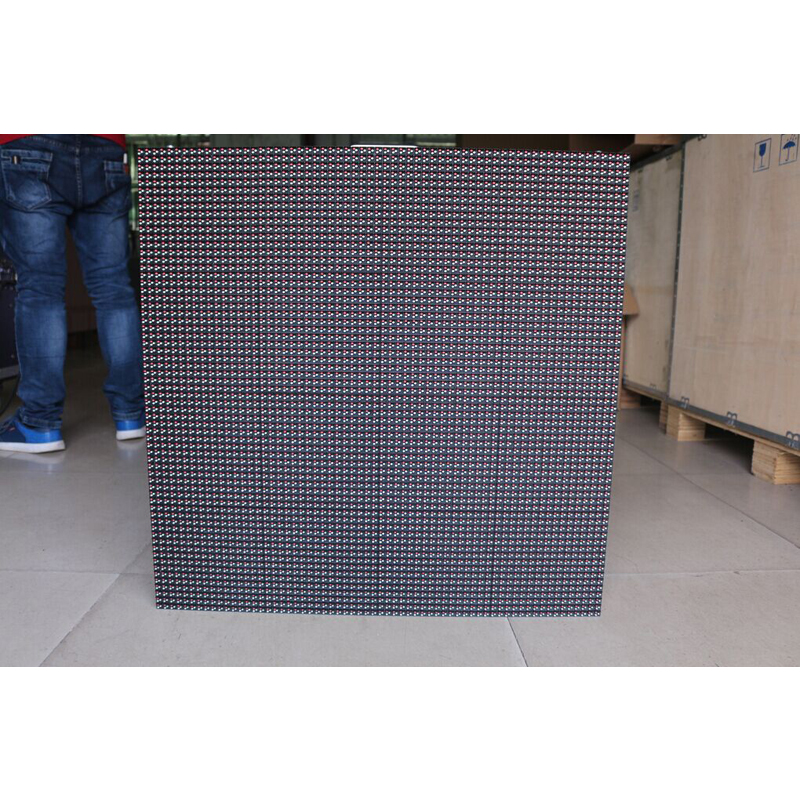

Outdoor P10mm DIP RGB rental led display 640mmx640mm Outdoor Rental led video wall

Ph10mm RGB LED Display is the most popular outdoor led display, NOW we have Ph10mm Die-Casting Aluminum LED Cabinet with less weight, 12.5kg.

The Cabinet size is: 640mmx640mm, 64x64 dots. it is the best solution for Outdoor rental led display!

High Refresh,Die Casting Aluminum Cabinet,High Grey Grade,Low Consumption. including linsn led receiving card.

Ph10mm Outdoor Die-Casting Aluminum LED Cabinet:

Features:
Cabinet Resolution	64(H)×64(V)
Pitch	10mm Outdoor
Density	10000 pixels/㎡(real density)
LED Arrangement	DIP RGB
Driver Mode	Dynamic 1/4 Duty constant current
Size	640mm×640mm
Mask	Pure Black mask-high contrast screen
Warranty	2 Years Warranty

Electricity Parameter
Brightness	≥7000cd/㎡
View Angle	140 degree ( horizontal) 140 degree(vertical)
Best View Distance	6m-100m
Gray Scale	8bits input, correction with 14bits
Display Color	16.7M
Brightness Adjustment	100 levels
Control System
Correction Scale Level	16bits
Frame Update Frequency	60-80Hz
Screen Refresh Frequency	480Hz
Gamma Correction	-5.0—5.0
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Color Temperature	5000-9300 adjustable
Brightness Correction	dot by dot, module by module, cabinet by cabinet

LINSN LED Terms:

Delivery time: within 10 working days after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: Wooden Box or Flight Case packing
Warranty: 2 Years Warranty.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.
