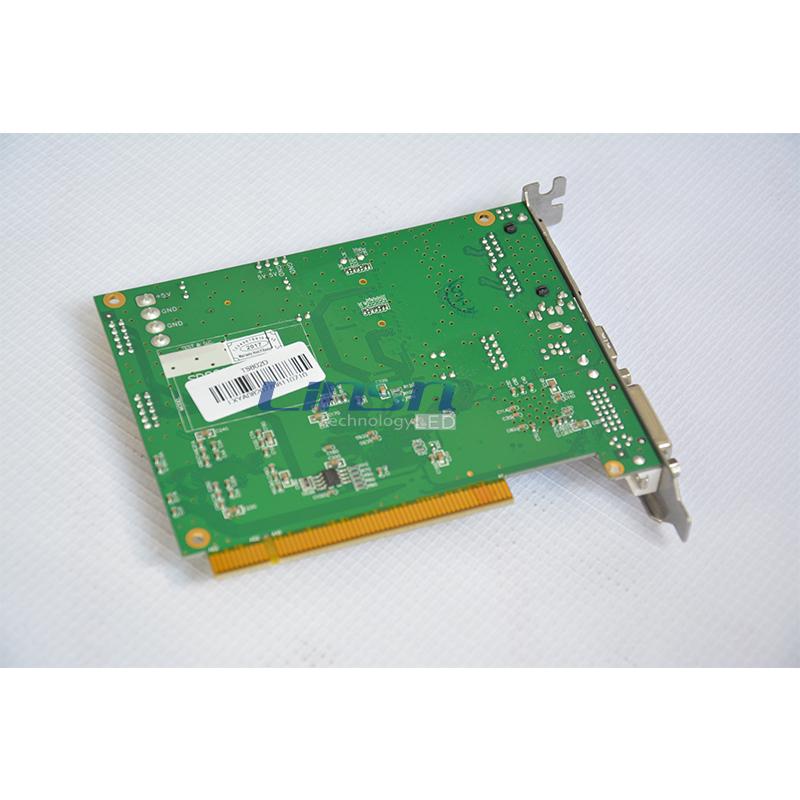

Linsn TS802D LED Sender Card,LINSN L202 Sending Card

Linsn TS802D LED Sender Card,LINSN L202 Sending Card

Model:LINSN-TS802D
LED Sending Card
2 Years Warranty
In Stock For Sale
Product Description: Linsn TS802D LED Sender Card,LINSN L202 D LED Sending Card Work with Linsn LED Receiving Card for Full color LED Display Module
Inquiry Now

linsn ts802D led sender Card,linsn L202 led sending card Work with linsn led Receiving Card for Full color led display module

Linsn TS802D Full Color LED Display Sending Card Synchronous.

Model 802 can max support 2048*1152pixels.

Product features:

Display type	supports full-color, dual-color and single color led display
Display mode	640480 800600 1024768 1280768 1280800 12801024 1440900 14401080 16001200 16801050 17281296 19201080 19201200 20481152 2048*1280
Pixel	802 sending card max supports 2048*640
Cascade function	Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led display
Audio Transmission Function	802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.
Sending card rotation function	In Sender setting, sending card has 0, 90, 180, 270 degree rotation function
Sending card U/D port flexibility for carrying half width or half height	For example, TS801 can max support 1280*1024 with two ports
Sending card zoom in/out function	In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out
Multi-display synchronous and combination functions	One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.
Supporting 10-bit colors	The seventh supports 8-bit colors: 256256256=16777216 kinds of colors. The eighth supports 10-bit colors: 102410241024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.
Matching Software	led studio V9.0 or above

What is Included:
1 x linsn sending card
1 x DVI cable
1 x USB cable

Factory Price For LINSN LED:

Linsn LED provide the best price for LED Control card and LED Display Module, Factory Price with no other cost.All items are brand New. So you can bid the led project with lower price!
