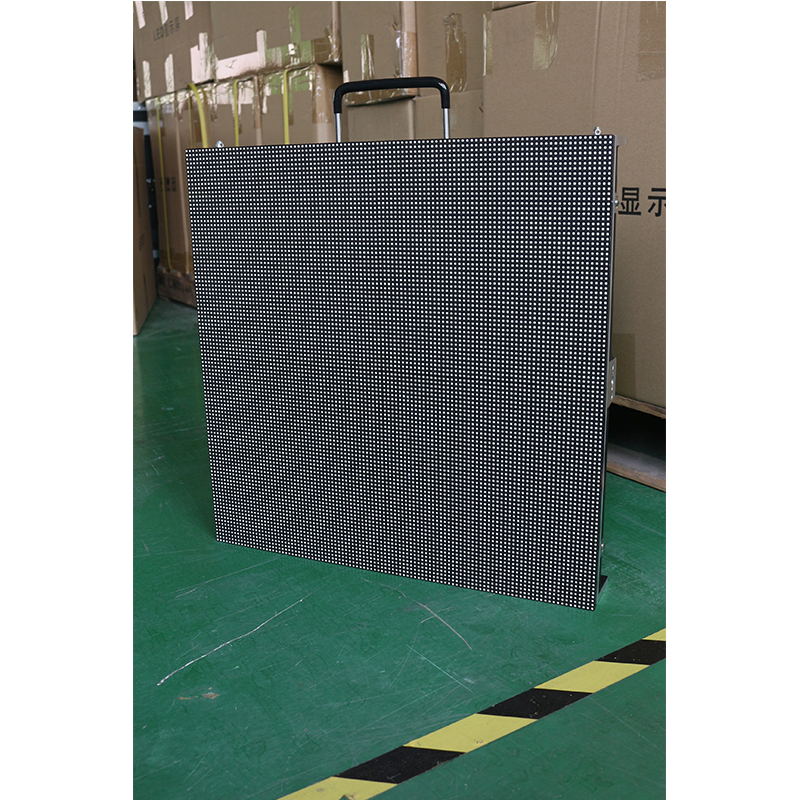

Ph 4.81mm Outdoor Rental LED Display Specifications:
|
|
|
Technique |
SMD |
|
Pixel structure |
1R1G1B 3in1 |
|
Pixel pitch |
4.81mm |
|
Pixel density |
43,222 dots |
|
Luminance |
6,500cd |
|
Module dimension |
250mm(W) * 250mm(H) |
|
Module resolution |
52 pixel(W) * 52pixel mm(H) |
|
Cabinet dimension |
500mm * 500mm, 500mmx1000mm |
|
Cabinet resolution |
104* 104 dots, 104*208 dots |
|
Cabinet area |
0.25sq. meter, 0.5sqm |
|
Optimal visual distance |
>4.81m |
|
Visual angel |
140 degree (H/V) |
|
Max power consumption |
≤1000w /m2 |
|
Average power consumption |
≤550w /m2 |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
1/16 dynamic scan, constant current |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥1920HZ |
|
Input voltage |
AC 110~240 volts |
|
Operation temperature |
- 40℃~ +60℃ |
|
Operation humidity |
10%~90% |
|
Input signal |
video, s-videl, RGB digital signal etc. |
|
Inout signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate |
IP65-outdoor waterproof |
|
Cabinet material |
Epoxy paint coated, aluminum / iron |
|
Application: |
Rental / Permanent installation available |
The unique hexagon structure design, flat and firm
The back of the cabinet led display module adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.
HD image brings you more perfect visual experience
The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor led display installation perfectly.
Fast installation, high precision and less weight
Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.
High IP grade and applicable to rainy weather
It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.
