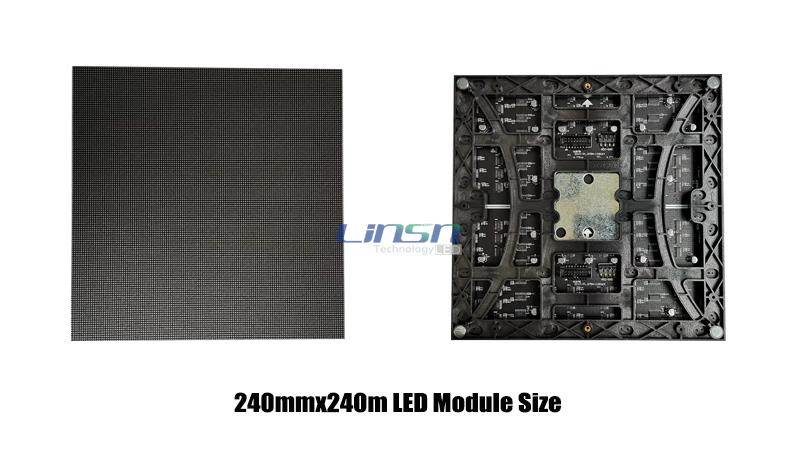

LED Cabinet With 240mmx240mm LED Module,Big Size Module to make the cabinets more flatness, Best Contrast to show the videos.
Main Specifications:
|
LED |
SMD 3in1 |
|
LED Type |
SMD1515 |
|
Pixel |
2mm |
|
Module size |
240mm*240mm |
|
Module resolution |
120*120dots |
|
Density |
250000 pixels/sqm |
|
LED Cabinet Size |
480*480*55(mm) |
|
Cabinet Weight |
6.5kg/pc |
|
Material |
Die Casting Aluminum |
|
Brightness |
800-1000 cd/m2 (Nits) |
|
Average power consumption |
350w/m2 |
|
Maximum power consumption |
750w/m2 |
|
Grey Level |
16 bits |
|
Fresh frequency |
2400-3840HZ |
|
Protective grade |
IP54 |
|
Certificates |
CE,RoHs,FCC |
|
Warranty |
3 Years |
P2.5mm LED Module with Mask to achieve the best Contrast. P1.875mm,P2mm,P2.5mm with Hub75 interface easy to control by LED Control System.

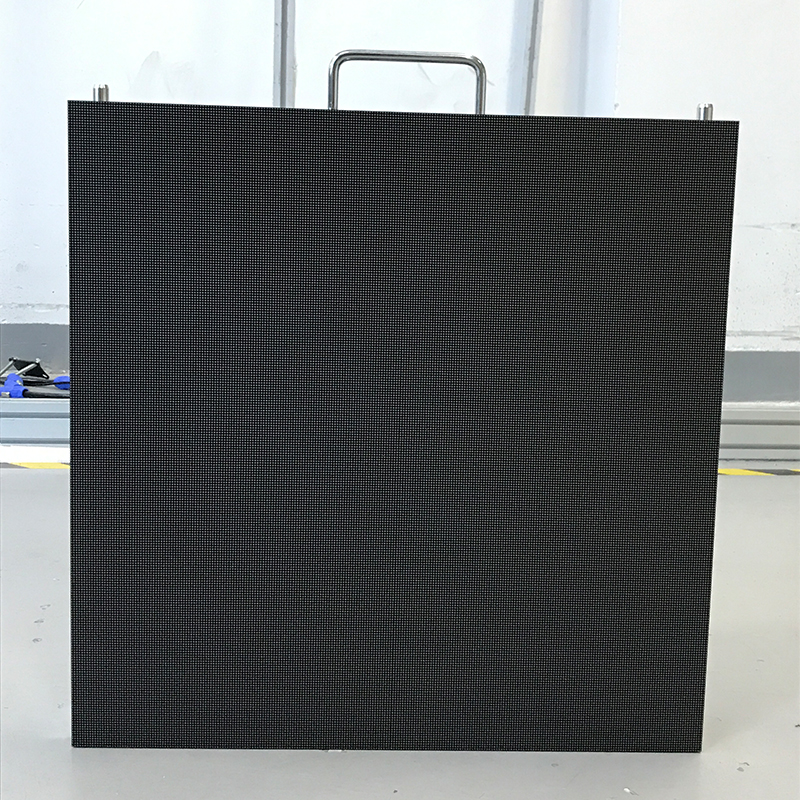

Die Casting Aluminum Material LED Cabinet With Magnets For Frontal and Backside Dual Maintainance Service.
