Parameter |
Specification |
|
Physical parameter |
Pixel configuration |
1010 3in1 SMD black light |
|
Pixel pitch(mm) |
1.923 |
|
|
Cabinet pixels |
208×156 |
|
|
Module Size(mm) |
200×150 |
|
|
Cabinet Size(mm) |
400×300×95 |
|
|
Cabinet material |
Aluminum |
|
|
Module weight (KG) |
0.4 |
|
|
Cabinet weight (KG) |
6.7 |
|
|
Electrical parameters
|
Depth of color processing (Bit) |
14 |
|
Grey Levels |
16384 |
|
|
Refreshing rate(Hz) |
3840 |
|
|
Driving mode |
1/26 |
|
|
Picture frame frequency(Hz) |
50/60 |
|
|
Signal transmission distance (mm) |
HSYV:<100m100m; single mode fiber:<10Km10Km |
|
|
Optical parameters |
Brightness(cd/m²) |
1000 |
|
Color temperature (K) |
7500 |
|
|
Contrast |
3300:1 |
|
|
horizontal viewing angle |
170 |
|
|
vertical viewing angle |
170 |
|
|
Electrical parameters |
AC input voltage(V) |
100~240 |
|
AC input frequency(Hz) |
50/60 |
|
|
Power factor |
>0.9 |
|
|
Maximum value of the AC input power(W/sq. m. ) |
515 |
|
|
Average value of the AC input power(W/sq. m) |
170 |
|
|
Environmental parameters |
Storage temperature(°c) |
-40~+60 |
|
Working temperature(°c) |
-10~+40 |
|
|
Storage Humidity(RH) |
10%~90%Without dew |
|
|
Working Humidity(RH) |
10%~90%Without dew |
|
|
Grade of Protection |
IP40/IP21 |
|
|
Typical value of life(hrs) |
100000 |
1.The gray scale in low brightness is almost perfect, can show more image details.
2.The brightness down to 20% can still achieve the perfect gray performance.
3. Own unique technology to successfully solve the problem of first line dimming.
4. High definition effects, with no color casts, no smear.
5. Large viewing angle, 160°/160° no color cast.
6.5000:1 Ultra high contrast.
7.3840HZ refresh frequency can be adapted to high speed camera and HD LED TV need.
1.Using shrapnel-type connectors cabinets without cable connection, reducing the failure rate.

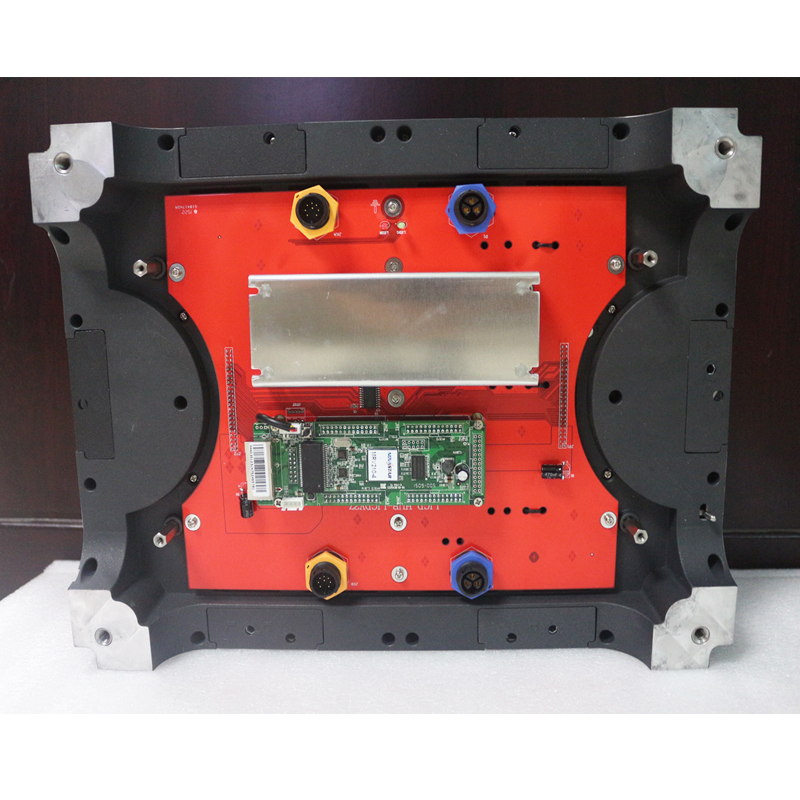

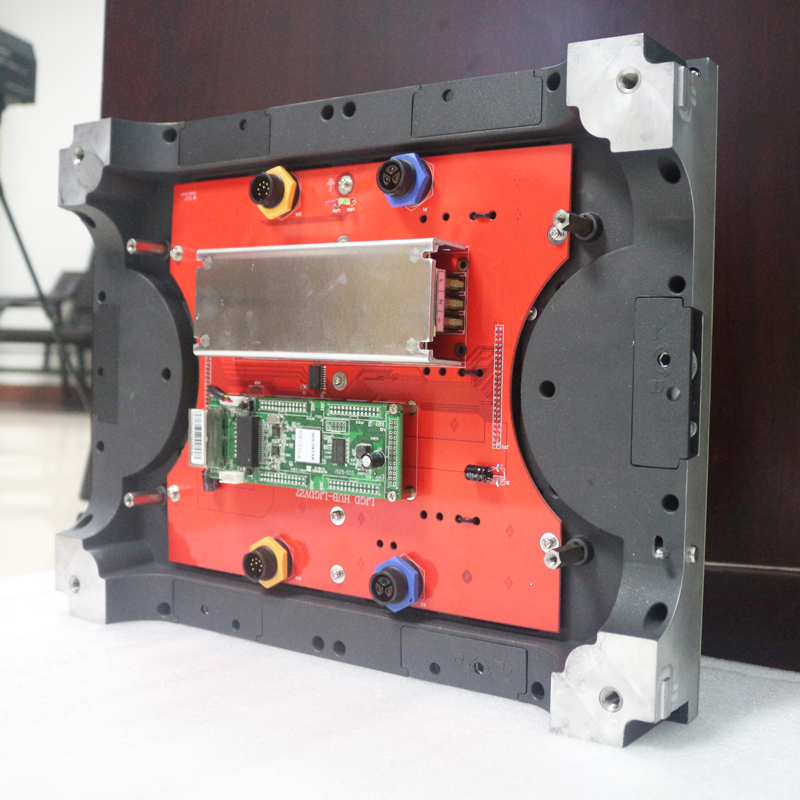

2.led receiver, power and hub panels integrated in die-cast aluminum cabinet rear cover enclosure for easy maintenance
3.The entire screen no fan design offers a quiet working environment
4.The modular design of wireless, power and wire designed as a module, easy plug and play
5.Connectors for military level shrapnel type connector, increased by 10 times more than traditional connection speed.
