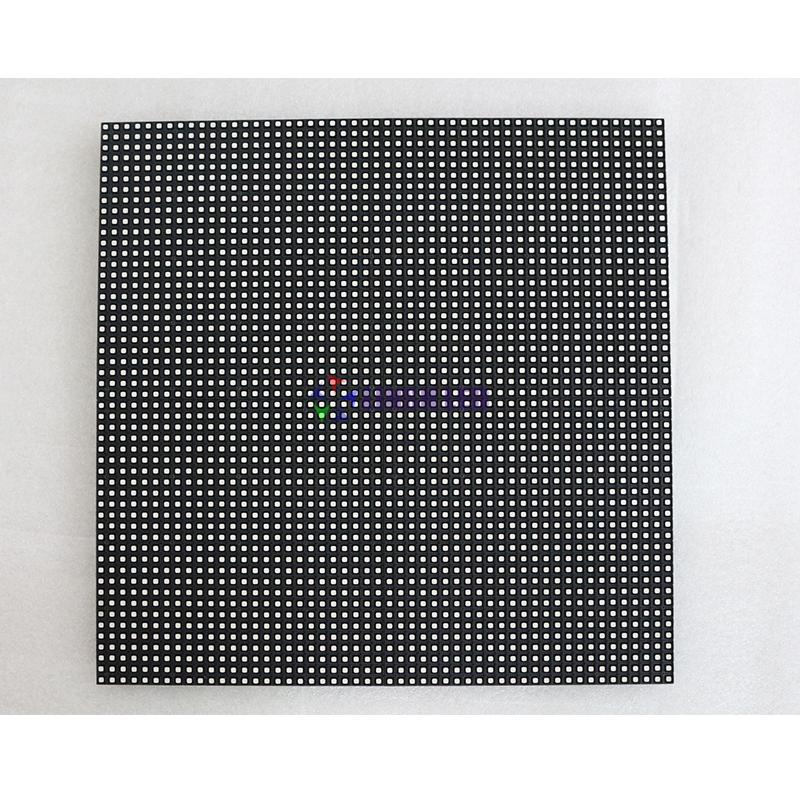

P4.81mm Outdoor LED Display Module

Model:UNIT-OS-P4.81-250X250
Outdoor LED Display Module
2 Years Warranty
CE,RoHS,FCC Approved
Product Description: P4.81mm Outdoor LED Display Module 250mmx250mm with 2 Years Warranty and 5500Nits High Brightness
Inquiry Now

Remark:

1. SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.

2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

P4.81mm outdoor led module specifications
Items	Parameter
Product Model	P4.81 Full Color Led Module
Module size	250x250mm
resolution ratio	52*52dots
Pixel pitch	4.81 mm
Pixel density	43264dots/sqm
Pixel configuration	RGB 3 in 1
Driving method	Constant Current Driving,1/13 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD2727
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	5000-5800 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤400W/m2
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	2m-15m
Input Voltage	110V/60HZ-220V/50Hz Switchable
