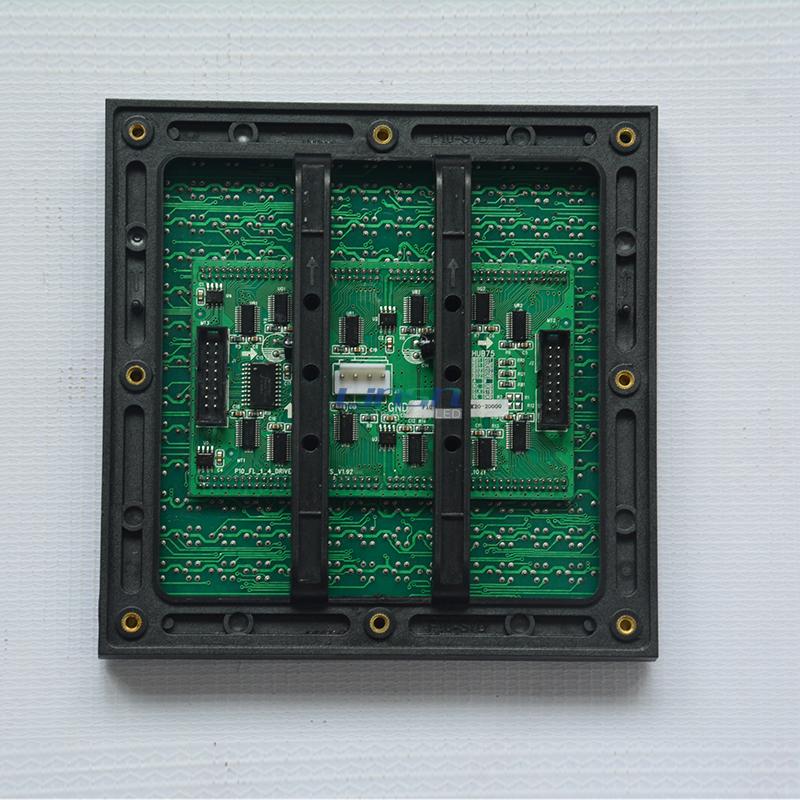

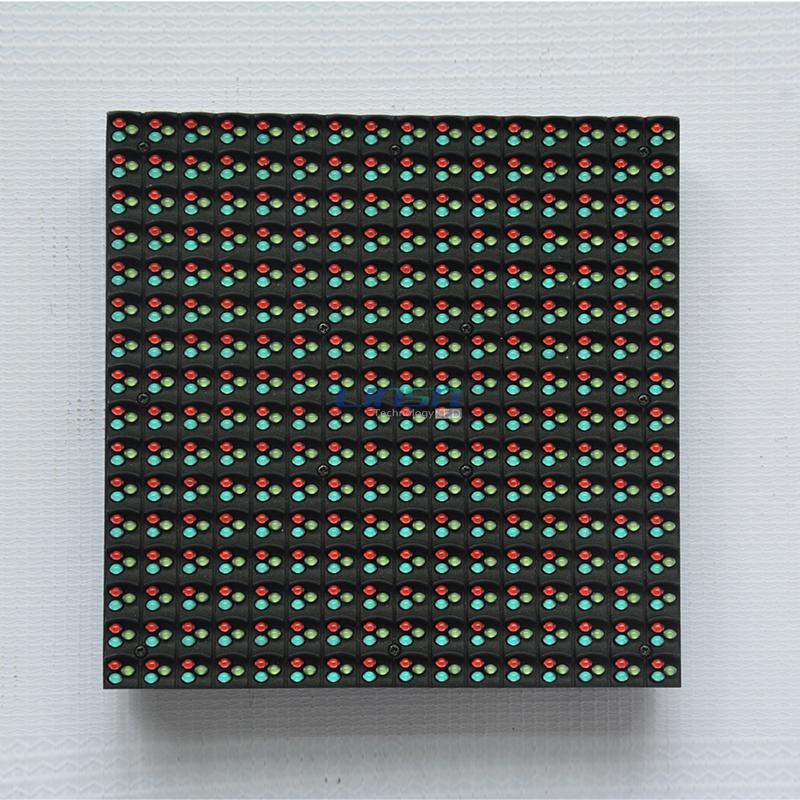

LED Module:

Pixel Pitch:

10mm DIP LED

Module Size:

160mmx160mm

Module Resolution:

16x16 dots

Driver Mode

1/4 Scan

Warranty Time:

2 Years

Certificates:

CE,RoHS

Electricity Parameter:

Physical density:

10000 pixels/m2

Brightness:

6500 - 6800 nits

Brightness adjusted:

100 grade by software, or by Auto-optic induced

Best view distance:

≥ 6m

Best view angle:

Horizontal ±110°, Vertical ±110°

Color processing:

16bit

Color temperature(k):

5000 — 9500 (choice by user)

Whole display flatness:

≤ 1mm juncture

Working temperature:

-20°C ~ +50°C

Refresh frequency:

≥ 300Hz

Humidity(RH):

≤ 90 ~ 95%

Protection grade:

IP65 Waterproof

Working Voltage:

DC 5V

Power supply:

AC 110 / 220V, 50/60Hz

Average power consumption:

550 w/m2

Max power consumption:

800 w/m2

Screen lifetime:

100000 hours
