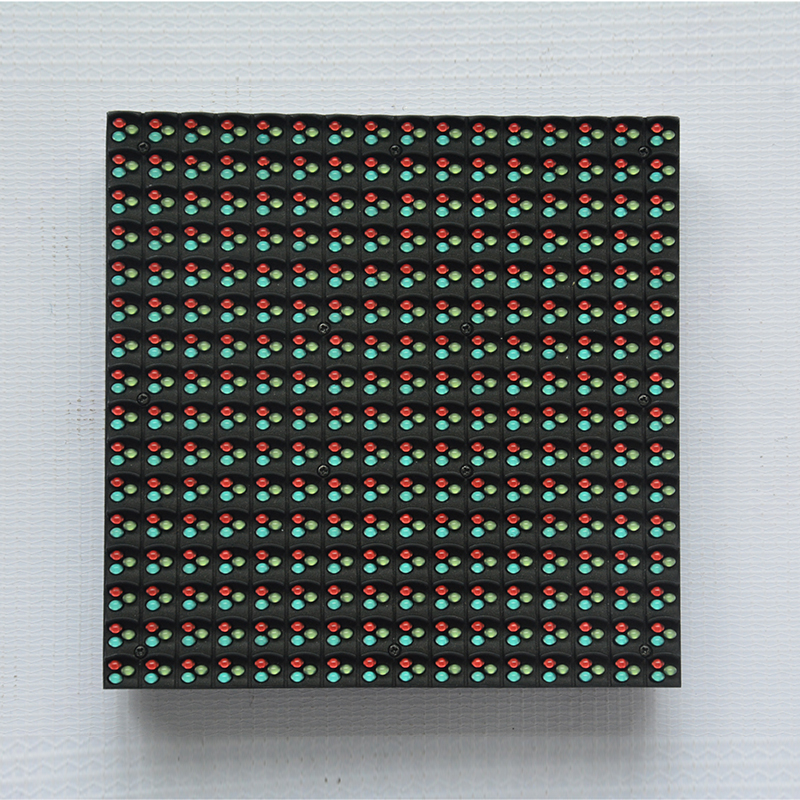

Outdoor LED Display Module

P8mm Best Contrast Nationstar LED P8mm Outdoor LED Display Module

Module:UNIT-OF8
Outdoor LED Display Module
3 Years Warranty
CE,RoHs,FCC Certificates
Product Description: Best Contrast Nationstar LED P8mm Outdoor LED Display Module With High Brightness and Best Color Uniformity
Inquiry Now

Best Contrast Nationstar LED P8mm Outdoor led display module With High Brightness and Best Color Uniformity

P8mm outdoor led module Main Specifications:

LED Module
Resolution	32(H)×16(V)
Pitch	8mm
Density	15625 pixels/㎡
LED Arrangement	SMD3535
Driver Mode	Dynamic 1/4 Duty constant current
Size	256mm×128mm
Mask	Pure Black mask-high contrast LED Mask

1.High Quality LEDs

The Outdoor LEDs we choose Nationstar LED that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

2.LED Module Mask

We use the best Pure Black Mask With Louvre, NO Glossy With Best Contrast.it will inrease the brightness in the daylight for outdoor led display application when directly to the sunshine.

3.Driving IC

To achieve the best visual performance of our indoor and outdoor led display,we use the Best Driving IC,such as MBI5124,SUM16136 with high refresh rate,high grey level with latest technology. and config the bestBrightness Efficiency by the LED Screen Software.

4.High Brightness >8000 nits LED Display

After finished the led module,we will have 48 hours for the led module aging.then do the Cabinet Assembly-Software Configuration-LED Display Inspection-Labeling-High Voltage Test-Ground Resistance-Test-QC-Packing. After Packing,We will arrange the shipment to the worldwide Customers.UNIT LED with their own technology,can make the SMD Outdoor led display screen with 8000 nits (cd/m2) Brightness.
