P2.5mm 160x160mm Outdoor LED Display Module

P2.5mm Outdoor led display module,Outdoor P2.5mm LED Display Panel High Brightness and High Resolution.

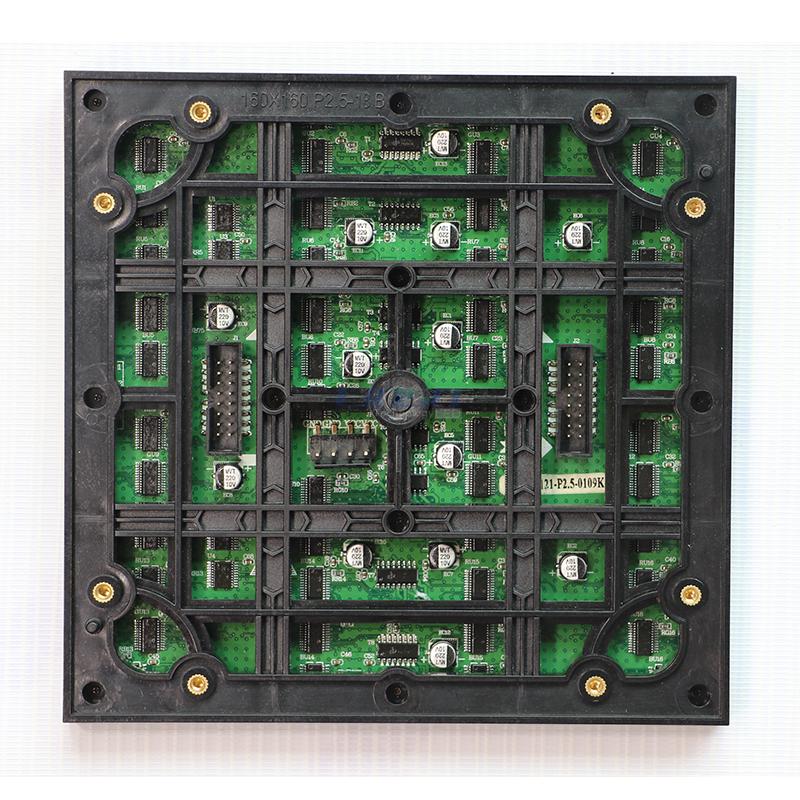

The Pixel Pitch P2.5mm outdoor led display Module

High Quality LEDs

The Outdoor LEDs we choose SMD LED 1415 that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

1.SMD Outdoor LED Module Including the Data & Power Cables, Waterproof Rubber Ring.

2.Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

3.LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

P2.5mm outdoor led module Specs:

P2.5mm outdoor led panel Parameter:
LED ModuleDimension	160mm（W）*160mm（H）
Pixel pitch	2.5mm
Pixel Density	160,000dots/ M2
Pixel configuration	1R1G1B
LED specification	SMD1415 LED
Pixel resolution	64（W）*64（H）
Average power	30W
Panel weight	0.35KG
Humidity	10%-95%RH
Hub connecting	HUB75
Best viewing angle	Horizontal >170  Vertical>120
Best viewing distance	2.5-25M
Working temperature	-20-+60
Panel power supply	5V40A/5V60A
Screen power supply	220VAC/50HZ+_10%
Max power	<1180W/M²
Average power	<550W/M²
Driving device	Constant current driver
Drive type	1/16 Scanning
Refresh frequency	>1920HZ/S
Display color	16.7M
Brightness	5000-5500cd/M2
Life span	100000Hours
Communication distance	<100M
Warranty	2 Years
Certificates	CE,RoHs,FCC

Reliable Driving IC

To achieve the best visual performance of our outdoor led display,we use theBest Driving IC,such as MBI5124,ICN3028S with high refresh rate,high grey level with latest technology. and config the bestBrightness Efficiencyby theled screen Software.

LED Display Module aging and testing is refers to imitate the long time operation without working problems,it is the most important to ensure the reliability of the LED display. LED display can be more stable after aging, and it can help the use of the efficiency. led screenaging test is a very important link in quality control.

The LED aging test is based on the product's failure rate curve, which is the characteristics of the bathtub curve, and the countermeasures are adopted to improve the reliability of the product.The indoor led module aging method includes constant current aging and constant pressure aging. A constant current source is that the current is constant at any time. The frequency is not constant. That's communication or pulsating current. The communication or pulsating current source can be described as the effective value stable, but this power supply cannot be called "constant current source".Constant current aging is the most consistent feature of LED current operation and is the most scientific method for the aging of LED displays. Over current impact aging and manufacturers the latest clothing design school chooses an aging technique, after using the frequency adjustable, current adjustable constant current source for such aging, in order to judging the quality of the outdoor led module in a short time and can pick out the dangerous LEDs make sure the led display module working well after installation.

The aging of LED display is divided into white balance aging (2x24 hours) and video aging (24 hours).totally 72 hours before packing.

Aging test process of led display screen:
1.Check the led display module to install all correct.
2.Check whether there is a short circuit or not.
3.Check whether the module is flat and neat.
4.Check whether the appearance is intact or not.
5.Use the online led control system to light up.
Make sure the testing time is continuously light for more than 72 hours

After the aging test, please check the quality control group for parameters.Test content: white balance, red, green, blue,gray gradient,video effect,text effect.after 72 hours aging test,the problem should be reported to the manager of the engineering department in a timely manner.replace or repair the broken leds. making sure all parts will be working well stably before packing.
