Outdoor Fixed LED Display

Outdoor Dual Service 960x960mm LED Display Screen

Outdoor Dual Service 960x960mm LED Display Screen

LINSN-OFS-960X960
Outdoor LED Display
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: LINSN LED Latest Outdoor Energy Saving LED Display Screen, 960X960mm LED Cabinet Size with 320x320mm front & rear service LED Module from P4mm to P10mm.
Inquiry Now

linsn led Outdoor Dual Service 960x960mm Energy Saving led display screen

LINSN LED Latest Outdoor energy saving led display Screen, 960X960mm LED Cabinet Size with 320x320mm front & rear service LED Module from P4mm to P10mm.

Energy Saving >50% Desgin:

Energy saving is power supplied separately with R and GB, which means that the voltage and current are accurately distributed to the red, green and blue lamp beads.The current passes through the lamp beads and then to the negative electrode of the IC.
The separate power supply scheme effectively reduces the power consumption and greatly reduces the heat generated during the operation of the display screen.

energy saving led display
1. Using R / GB to separate power supply, current is accurately distributed to the lamp beads, reducing power consumption.
2. Reduce the temperature, no need for air conditioning, save cost.
3. Reduce power consumption, save electricity and energy, reduce costs greatly.
4. Uniform heat distribution, constant color temperature, no color deviation, no color block, good consistency.
5. The screen cabinet has low heat, which is about 16 ℃ lower than the common LED display product.
960x960mm led display cabinet

960X960mm Standard Perfect Structure

Energy saving LED display is made by hard magnesium alloy led cabinet, fashion design and top class product structure for better heat dissipation and low heat.The heat of the display is uniform, the color temperature is constant, and no color block in the display at all, and the picture display effect is excellent.energy consumption is maximized without reducing LED display brightness and contrast .
less weight led display cabinet

Standard Size LED Module-Dual Mode Service

960*960mm standard cabinet design with 320*320mm LED module panel. led display module size is 320x320mm dimension with frontal & Rear Service,ultra low heat and has excellent performance in improving energy efficiency and environment protection.
front and rear service outdoor led display cabinet

front and rear service outdoor led display cabinet

Energy Saving LED Display Screen Specifications:(ES means Energy Saving)

Pixel Pitch	P4mm	P5.33mm	P6.67mm-ES	P8mm-ES	P10mm-ES
LED	SMD1921	SMD1921	SMD2727	SMD3535	SMD3535
Module size	320*320mm
Module resolution (dot)	80*80	60*60	48*48	40*40	32*32
Density	62500	35156	22477	15625	10000
LED Cabinet Size	960*960mm (Customized Size Avaliable)
Cabinet Weight	26kg/Magnesium Alloy LED Cabinet
Material	Magnesium Alloy/Steel/Aluminum
Brightness	>5000 nits	>5000 nits	>5500 nits	>5500 nits	>5500 nits
Avg power consumption	380W	360W	280W	240W	280W
Max power consumption	950W	900W	650W	600W	650W
Best Viewing Distance	4-40m	5-55m	6-66m	8-80m	10-100m
Fresh frequency	1920-3840HZ
Protective grade	Waterproof IP65 Front and Back
Maintain Way	Frontal & Rear Service-Dual Mode
Scan Method	1/16S	1/7S	1/6S	1/5S	1/2S
Certificates	CE,RoHs,FCC
Warranty	3 Years Warranty

Less Weight Cabinet Design

Less weight led display cabinet with quick locks,delicate structure for easy installation without Gaps.
magnesium alloy led display cabinet

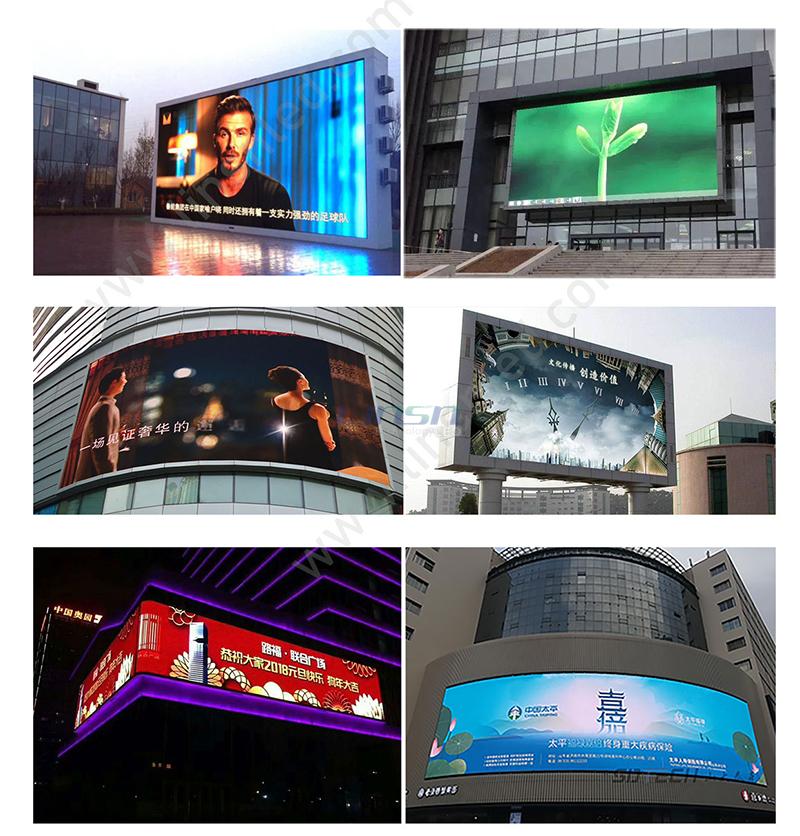

Widely Outdoor Application

With Energy Saving and Dual Service Maintenance,LINSN 960X960mm Series LED Display are possibly to installed for more application,where there is no enough space to install, or where there is no enough power, you can choose LINSN LED Energy Saving LED Display Screen.
