Outdoor Fixed LED Display

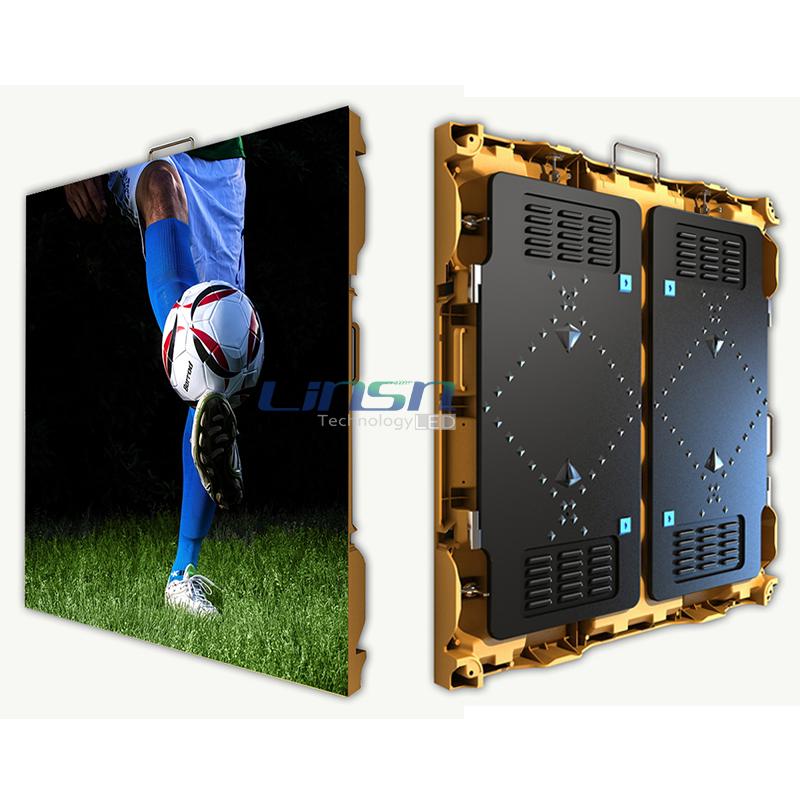

960X960mm P5mm Outdoor LED Display Standard Size LED Panel

960X960mm P5mm Outdoor LED Display Standard Size LED Panel

Model:LINSN-P5-OF-960X960
Outdoor LED Display
1 Year Warranty
CE,RoHS,FCC Approved
Product Description: P5mm Outdoor LED Display with Standard Size 960mmx960mm,Less Weight P5mm Outdoor LED Screen
Inquiry Now

New Design P5mm outdoor led display Standard Size 960mmx960mm,Die Casting Aluminum Less Weight Magnesium Alloy LED Display Panel For Fixed LED Screen Installation

Main Specifications:

Model	LINSN-P5-OF-960X960
LED Type	SMD 2525
Pixel Pitch	5mm
Structure Feature	LED and IC in same PCB
Driving IC	Constant Current Driving IC
Driving Mode	1/8 scan
Density	40000 pixels/sqm
Module Size	320*160mm
Module Resolution	64*32dots
Module Weight	0.46kg
Max Current	8.69A
Mask	Pure Black mask-high contrast screen
LED Cabinet Size	96096085(mm)
Cabinet Resolution	192(H)x192(V)
Cabinet Weight	26kg/pc
Cabinet Material	Die Casting Magnesium Alloy
Operation Power	AC100-240V 50-60HZ Switch-able
Screen Power Consumption	679w/m2
Average Power Consumption	450w
Maximum Power Consumption	950w
Brightness	≥5500 cd/m² (Nits)
Brightness Adjustment	0-100 levels
Brightness Correction	dot by dot, module by module, cabinet by cabinet
View Angle	149 degree (horizontal) 130 degree (vertical)
Optimal Viewing Distance	5m to 50m
Attenuation	≤15%
Grey Level	13 bits
Refresh Rate	≥1920Hz
Display Color	16.7M
Gamma Correction	-5.0 ~ 5.0
Color Temperature	5000-9300 adjustable
Operating Temperature	-20℃~+60℃
Operating Humidity	10% ~ 95% RH
MTBF	≥10000 hours
Continuous Working Time mode	≥48 hours
Defective Rate	< 0.00001 it's 0 before delivery
Protective grade	IP 65 (front side)
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
Warranty	1 Year

1.High Quality LEDs

The Outdoor LEDs we choose Nationstar LED that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

2.Driving IC

To achieve the best visual performance of our indoor and outdoor led display,we use the Best Driving IC,such as MBI5124,SUM16136 with high refresh rate,high grey level with latest technology. and config the best Brightness Efficiency by the LED Screen Software.

3.Standard outdoor led display module Advantage:

less weight led display

1).Unify the standard led display Module Size: 320mmx160mm.
2).Unify the Standard LED Display Cabinet Screw Holes for all Kinds of standard led module.
3).Pay more attention to the standard led screen display performance.
