Outdoor Fixed LED Display

P3mm Outdoor LED Display Screen

Model:LINSN-OF-P3-960X960

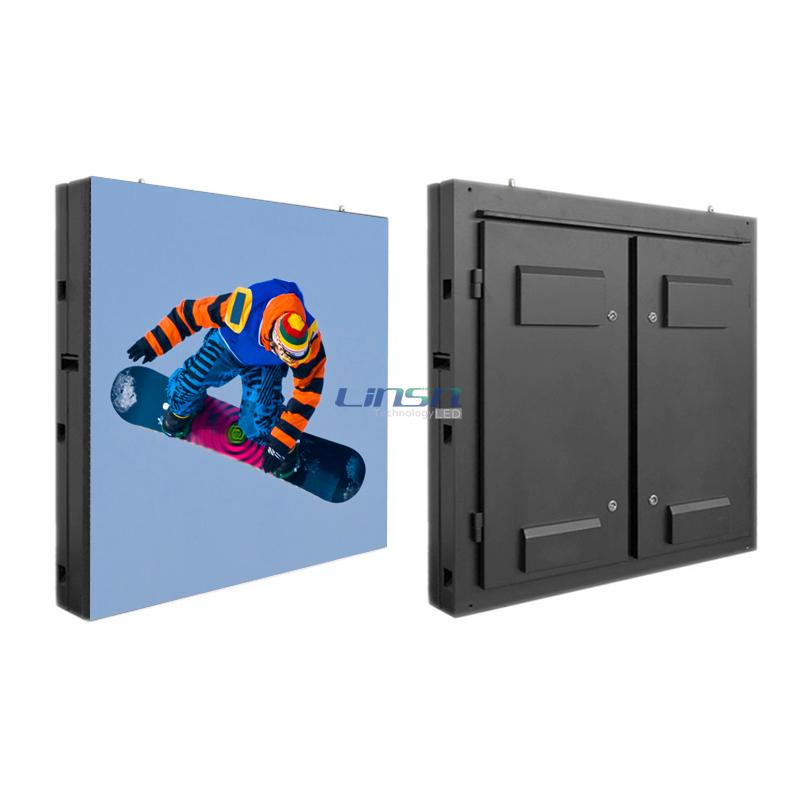

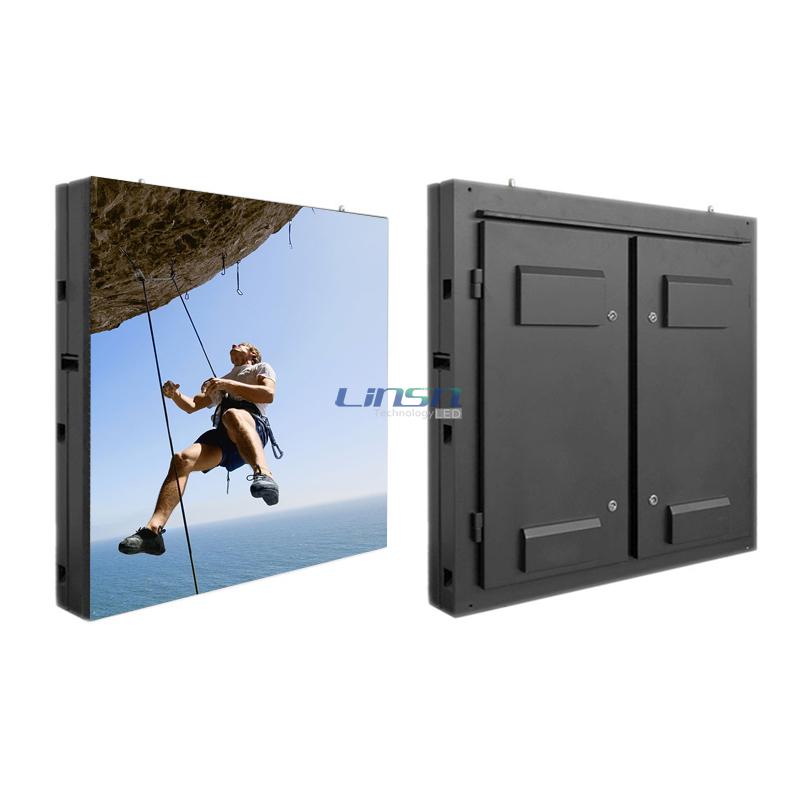

Outdoor LED Display Screen
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: High Resolution P3mm Outdoor LED Display Screen High Brightness P3mm Outdoor LED Panel
Inquiry Now

1.SMD LED with Best Color Uniformity and High Brightness.

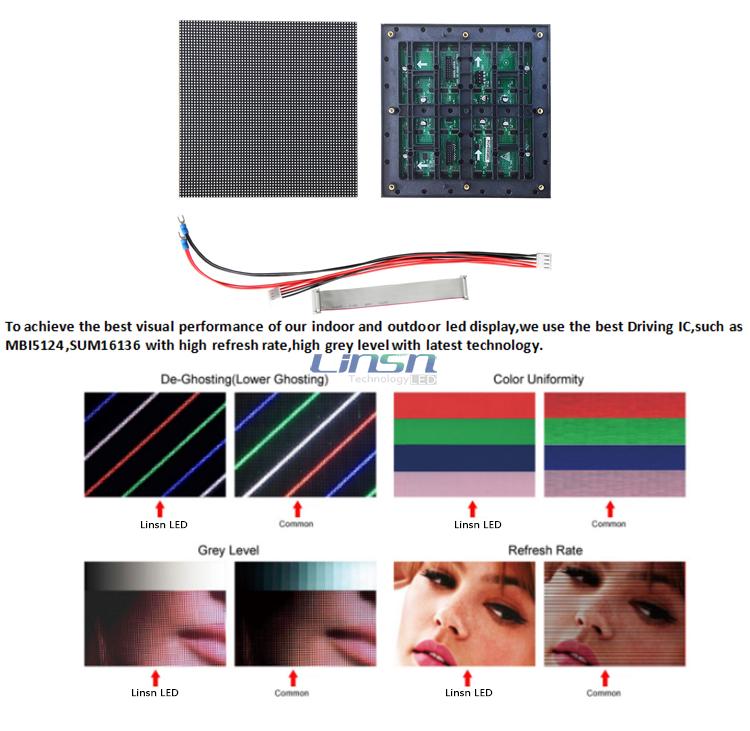

2.High Refresh Rate and High Grey Grade with Reliable Driving IC.

3.Best Power Supply of Meanwell PSU of CE,UL Approved.

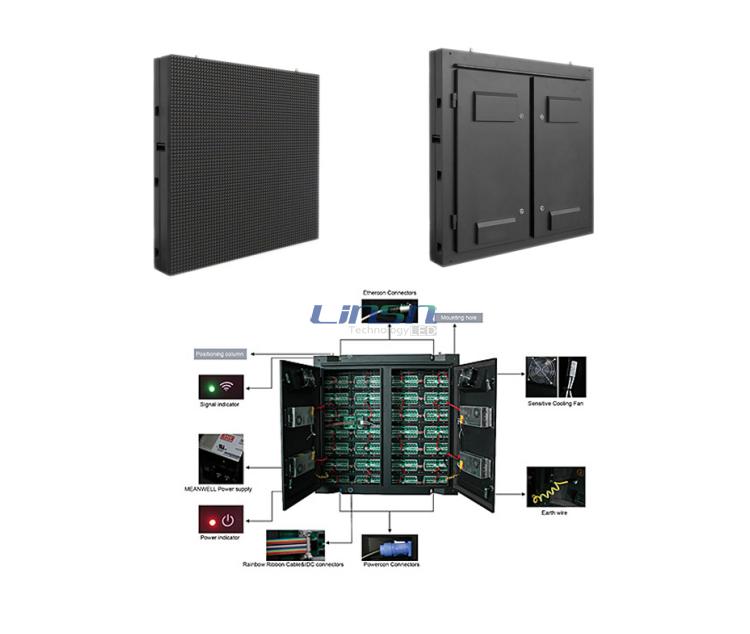

4.Waterproof IP65 LED Cabinet Can be Customized accroding to your LED Display Size.

P3 outdoor led panel Parameter:

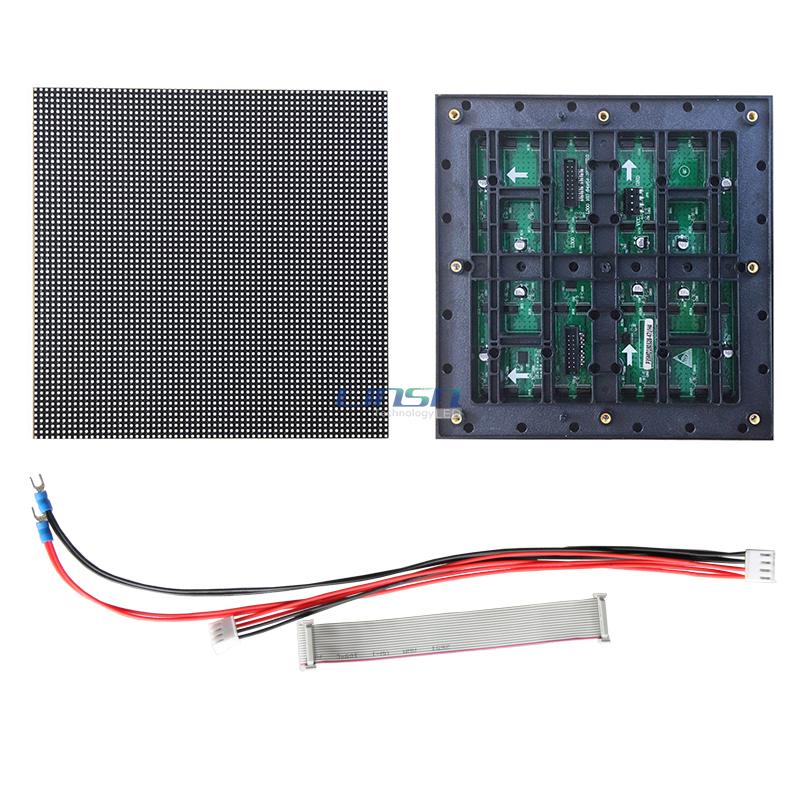

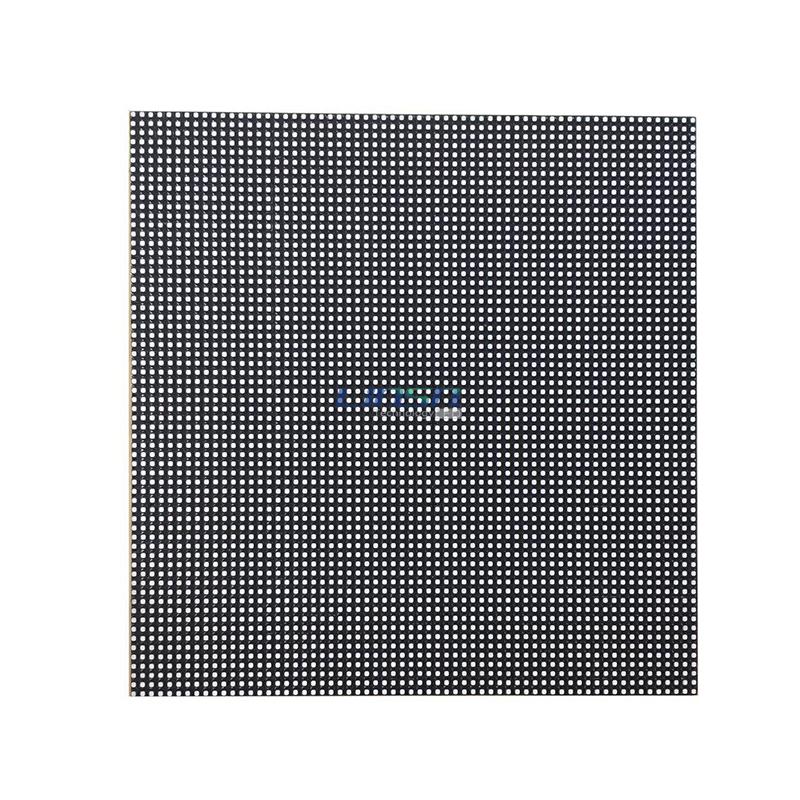

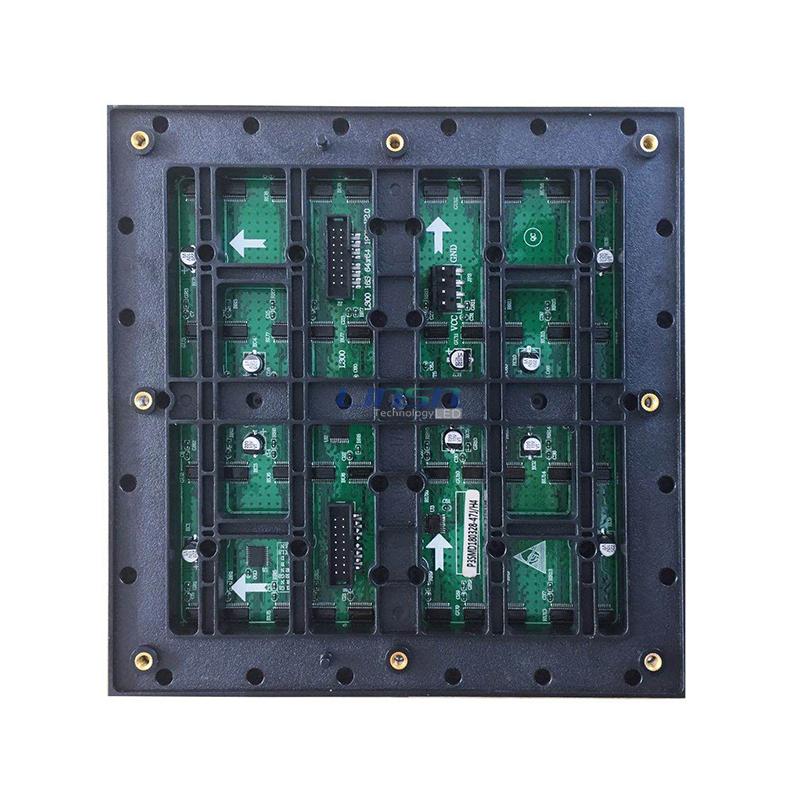

LED ModuleDimension	192mm（W）*192mm（H）
Pixel pitch	3mm
Pixel Density	111111/ M2
Pixel configuration	1R1G1B
LED specification	SMD1921 LED
Pixel resolution	64（W）*64（H）
Average power	35W
Panel weight	0.35KG
Humidity	10%-95%RH
Hub connecting	HUB75
Best viewing angle	Horizontal >170 Vertical>120
Best viewing distance	5-30M
Working temperature	-20-+60
Panel power supply	5V40A
Screen power supply	220VAC/50HZ+_10%
Max power	<950W/M²/PANEL
Average power	320W/M²/PANEL
Driving device	MBI5124/16237Constant current driver
Drive type	1/16Scanning
Refresh frequency	960-1920HZ/S
Display color	16.7M
Brightness	5200-5800cd/M2
Life span	100000Hours
Communication distance	<100M
Warranty	2 Years
Certificates	CE,RoHs,FCC
