Fine Pitch LED Display

P1.875mm Fine Pitch LED Display Screen

Model:LINSN-FP-P1.875-600X337
Fine Pitch LED Display
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: P1.875mm Fine Pitch LED Display Screen,16:9 Ratio Small Pixel LED Video Wall
Inquiry Now

P1.875mm Fine Pitch led display screen,Small Pixel led video wall

New Product LINSN 16:9 Golden Ratio LED Display with 600×337.5mm size, this product will be targeting small pixel led display market. Excellent desgin, Top quality, perfect visual performance, better Color consistency. Dual Backup design for power supply and control system, front service installation to save labor and cost, and more.
It delivers an image which is super subtle and without getting tired after a longtime watchin.Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.Front Serviceable Module allows easy Maintenance, Saving Time & Spac.16 Bit Grey Grade Processing, the color transition will be more natural.

1: True High Definition Display

Linsn latest technology promises ‘the maximum high-definition experience’ and guarantee you a flat and seamless screen with good uniformity and true 8k, 4k display.

2: 16:9 Golden Ratio Design

16:9 Golden Ration Design Cabinet with 600mm×337.5mm size, unique style and perfect cabinet for various evenet. Dot-to-dot correction technology provide you pure image with great gradation.

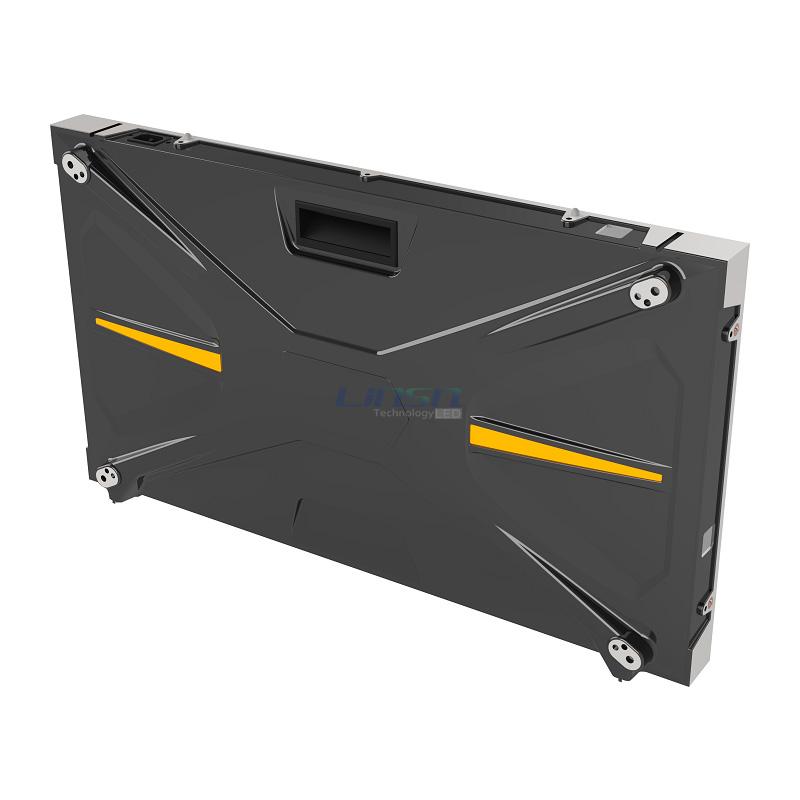

3: Perfect Cabinet Structure

Unique Cabinet Design with elegant appearance and human layout, easy installation and maintenance, pleasing to the eye with great visual experience.

4: High quality LED Panel

Support smart modules, support correcting data storage, Support module temperature detection, Support voltage detection, Support dot to dot correction.

5:Front maintenance design

there is no need for maintenance channel behind the screen. It can be attached to the wall to save time and space.

6: Dual Backup Design

Supporting dual backup control system, dual backup power supply, automatically switch the picture in an LED screen when it occures any problems to make sure a stable and reliable image.

7: Seamless Splicing

Seamless splicing design with better cabinet connectors, top / down fast locks, and left/ right fast locks, offering the audience excellent visual experience without any gaps and the LED display with ultra high flatness.

Fine Pitch LED Display Main Specifications:

ITEM	UNIT	1.25	1.5625	1.875	2.5
LED Type	N/A	SMD1010	SMD1010	SMD1515	SMD1515
Pixel Pitch	mm	1.25	1.5625	1.875	2.5
Ingress Protection	IP	IP54
Viewing Distance	meter	1.25	1.5	1.8	2.5
Scan Way	N/A	1/30	1/32	1/30	1/30
Module Dimension	mm	200*168.75
Module Pixel	Pixel	160×135	128×106	160×90	80×68
Cabinet Dimension	mm	600337.560
Cabinet Resolution	Pixel	480*270	384*216	320*180	240*135
Module Maintenance	N/A	Front
Cabinet Material	N/A	Die-Casting Aluminum
Cabinet Weight	KG	5.4
Brightness	Nits	800~1000
Refresh rate	Hz	1920/3840
Digital Processing	Bit	14/16
Gray Scale	Level	16384
Colors	Million	687
Color Temperature	Deg.K	4,500-8,500 Adjustable
Brightness Control	N/A	255
Contrast Ratio	N/A	4000:1
Viewing Angle H	Deg.	140
Viewing Angle V	Deg.	140
AC Speration	V	AC90~264
Power Consumption(Max/Avg)	W/m2	800/250 ( Estimate )
Storage Tem.	F/C	-4 ~ 140F/-20C ~ +60C
Storage Humidity	RH	10% ~ 85%
Operating Tem.	F/C	-4F ~ 140F/-20C ~ +60
Operating Humidity	RH	10% ~ 85%
Lift time(50% brightness)	Hour	100,000
Control Mode	N/A	Video Sync
