LED Cabinet Specifications:

Pixel Pitch

2.5mm/3.07mm/4mm/5mm/10mm

Pixel Constitution

SMD 3IN1 2121 Black LED

Module Size

320mm*160mm

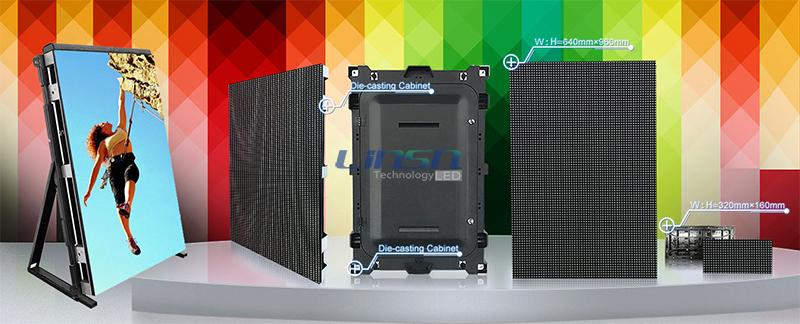

Die Casting Aluminum LED Cabinet Size

640mm*960mm

LED Cabinet Resolution

256*384/ 208*312/160*240/128*192/64*96 dots

LED Cabinet Weight

15kg/cabinet

LED Display Parameters:

Brightness

800-1200 cd/m2 (nits)

Optimum Viewing Angle

140°/140°

Power Supply Voltage

110V/220V Switchable

Gray Scale

≥16.7M colors(Synchronized)

Refresh Frequency

≥1920Hz

Frame Frequency

≥60-75Hz

Weather Protection

IP43

Operating Temperature

-20~50(-40~60optional)

Operating Humidity

10%-90%

Average No Falure Time

≥5000hours

Life Span

≥100,000hours

LED Control System

Linsn/Novastar/Colorlight/Huidu/Xixun etc

Warranty

3 Years Warranty

Certificates

CE,RoHs,FCC,UL,CCC
