Detachable P3.91mm Outdoor rental led display 500mmX500mm Waterproof outdoor led screen

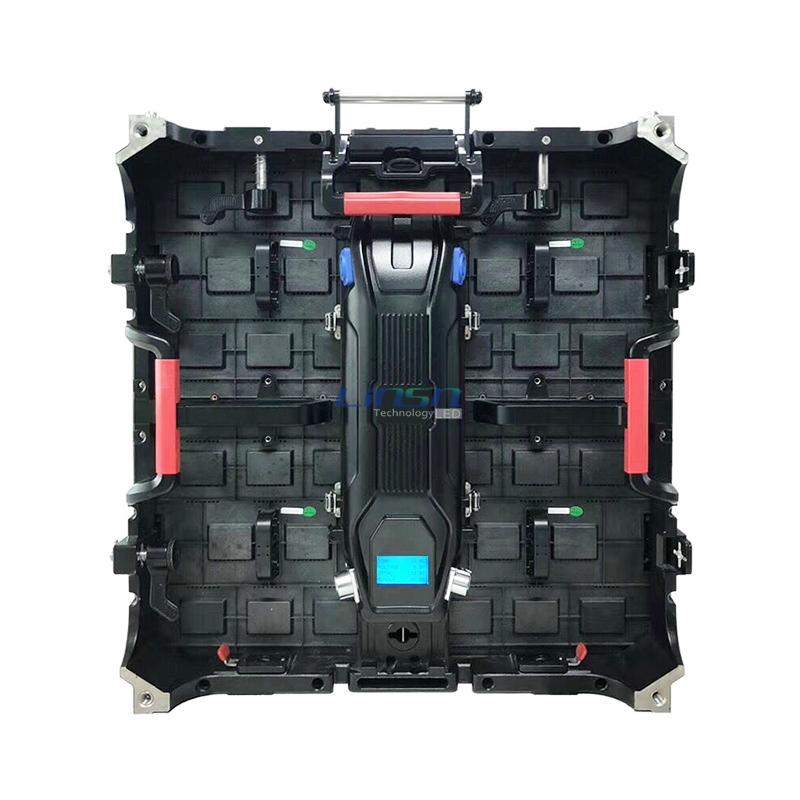

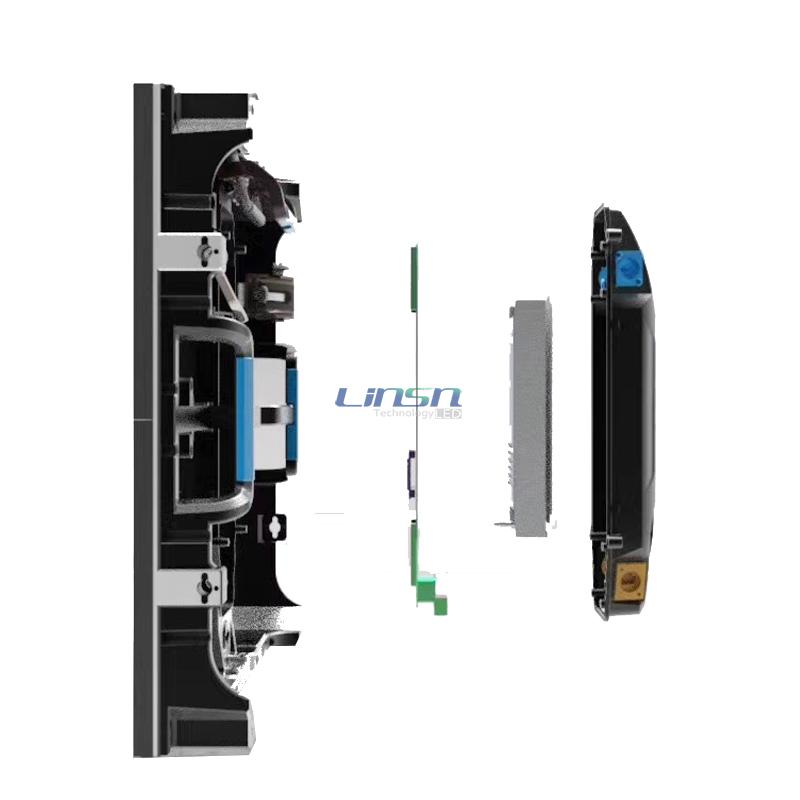

Detachable Power & Control Backside

LED Cabinet’s backside power & receiving card control box can fast changed for easy maintenance.

Climb ladder Lock design

Each cabinet backside have 2 handle can be climbed like a ladder.The handle can be use to lock the up and down cabinet.

UI LCD display

The rear box has LCD display that it shows voltage, temperature, cabinet usage timing for every time used and total hours of usage. Power and signal lamps indicates cabinet status.

Front & Rear Maintenance

It makes you remove the modules without any tools and maintain the screen in front side as well as rear side easily.

Each side have 2 set fast locks

LED Cabinet with Left and right side also use 2 set fast lock to make your screen more stable.

P3.91mm Rental LED Display Specifications:

Main Specifications:

Model	LINSN-OR-P3.91-500X500-D
LED	SMD 3in1
Pixel	3.91mm
Module size	250*250mm
Module resolution	64*64dots
Density	65536 pixels/sqm
LED Cabinet Size	500*500*75(mm)
Cabinet Weight	8.5kg/pc
Material	Die Casting Magnesium Alloy
Brightness	5000-5500 cd/m2 (Nits)
Average power consumption	480w/2
Maximum power consumption	950w/2
Optimal Viewing Distance	3.91m to 39m
Grey Level	14 bits
Fresh frequency	1920-3840HZ
Humidity-operating	10% ~ 95%
Temperature-operating	-20℃~+50℃
Screen life	≥100000 hours
Controlling mode	Synchronization or Asynchronous
Controlling system	Novastar/Linsn/Huidu
Protective grade	IP65 Waterproof
Certificates	CE,RoHs,FCC
Warranty	3 Years

Curved Installation

Curved LED Cabinet Design between -15°and 15°, which can make convex and concave.

High Refresh Rate & Ultra Fast Response

The response speed exceeds the response limit of the naked eyes, while playing the high speed dynamic images in an LED Screen,it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.Seeing from five directions, it would be still the natural and clear image in an LED display.

Enough Accessories

linsn led provide enough accessories for Rental LED Display.

Reliable Packing to protect your LED Display

Flight Case Packing or Plywood Case Packing For your choice
