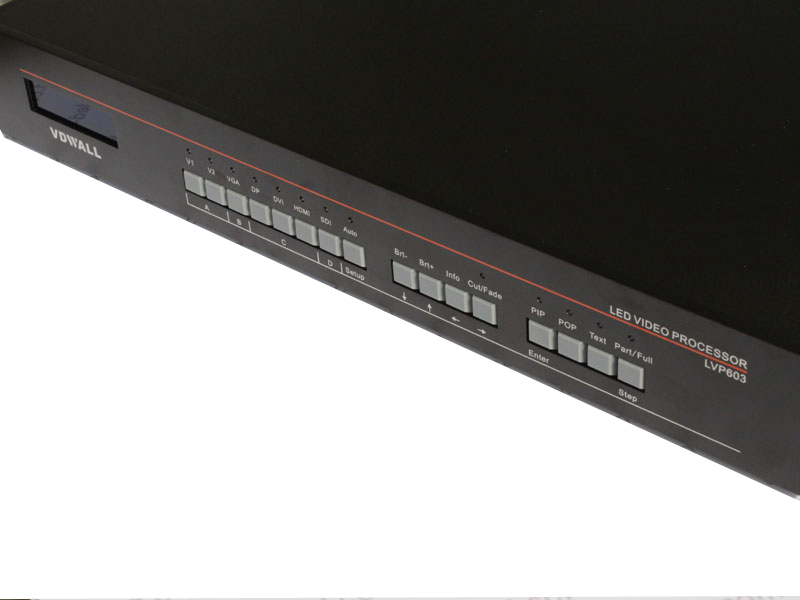

VDwall LVP603S LED Video Processor

Model:VDWALL-LVP603S
LED Video Processor
2 Years Warranty
In Stock For Sale
Product Description: VDwall LVP603S LED Video Processor With SDI HD Module,LVP603S Video Controller work with linsn ts802 sending card
Inquiry Now

VDWALL LVP603S LED Video Processor with SDI / HDSDI input interface.(Free of DHL shipping)

No included the sending card,Perfect compatibility with Novastar Sending card, linsn sending card , Colorlight sending card, Dbstar sending card.

Application
TV broadcast center,high-end meeting,large-scale stage and theatre,Rental performance,exhibition etc

Note to Model

Model	CVBS	S-Video	Ypbpr/ YcbCr	VGA	DVI-I	DVI/ HDMI	DP	SDI/ HD-SDI	VGA	DVI	Max resolution of single port output
LVP603	×2			×1		×2	×1		×1	×2	1920×1080@60Hz
LVP603S	×2			×1		×2	×`	×1	×1	×2	1920×1080@60Hz

LVP603 Series Product Features:

10+ Bit Faroudja® DCDI Cinema Processing
Seamless Switching,Fade-in / Fade-out
New Faroudja® Real Color®
HD Text, Flash, Graphics & Logo Overlay
Advanced 4x4 Pixels Interpolation Scaling Algorithm
Unrestricted HD Picture-In-Picture ( PIP ) & Picture-Off-Picture( POP )
Independent H & V Scaling Ratios
Easy setup and adjustment through keys on the panel
HDMI 1.3a with HDCP, HD 1080p input
SDI / HD-SDI / 3G-SDI ( 1080p ) Input
Multi-machine in parallel, 6 x 6 in parallel can connect 11520 x 6480 LED screen
1920 x 1080p or 1600 x 1200 output for single machine
Fast 64-level output brightness adjustment
Press keys on frontal panel to directly select 7-channel input signal source, including:
1 x VGA 1 x DP( DisplayPort ) 2 x CVBS
1 x SDI / HD-SDI 1 x HDMI( with HDCP ) 1 x DVI
2 LED Transmission Cards Built-in ability （The processor does not include the Transmission card ）
2 channels can be configured to connect external stereo audio, plus DP, HDMI and SDI audio, there are 5-channel audio for synchronous switch

Product Specifications :

Outputs
VGA /DVI Format	1920×1080@50Hz / 60Hz 1600×1200@60Hz 1280×1024@60Hz / 75Hz 1024×768@60Hz / 75Hz
Nums / Type	2×DVI 1×VGA( RGBHV )
Output Connectors	DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D VGA：15pin D_Sub ( female )
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
Inputs:
Video System	PAL / NTSC
Nums / Type	1×DVI 1×HDMI 1×VGA（RGBHV） 1×D/P (Display Port) 1×SDI / HD-SDI 2×Composite video
Composite Video Scope / Impedance	1V（p_p）/ 75Ω
VGA Scope / Impedance	R、G、B = 0.7 V（p_p）/ 75Ω
VGA Format	PC（VESA )	≤1600x1200@60Hz
DVI Format	SD / HD（CEA-861): PC（VESA)	≤1920x1080@60Hz ≤1600x1200@60Hz
Input Connectors	VGA：15pin D_Sub( Female ) DP: display Port SDI / HD-SDI ：BNC DVI：24+1 DVI_D Composite：BNC
DP Format	SD / HD（CEA-861) PC（VESA)	≤1920x1080@60Hz ≤1600x1200@60Hz
HD-SDI 3G-SDI format	SMPTE 274M/296M HDSDI-SMPTE 292M SMPTE 424M/425M	≤1080i @50HZ/60HZ
HDMI Format( HDCP )	PC（VESA) SD / HD（CEA-861)	≤1600x1200@60Hz ≤1920x1080@60Hz
SDI format	SDI-SMPTE 259M-C	576i @50Hz 480i @60Hz
Other
Humidity	15-85%
Input Voltage	100-240VAC 60W 50/60Hz
Operating Temp	5-40 ℃
Control	Panel Button
Dimensions（Package)	510mm（L）x350mm（W）x135mm（H）
