Indoor Rental LED Display

P6mm HD Rental LED Video Wall

Rental LED Display
Price: USD 410/pc
CE,Rohs,FCC Approved
2 Years Warranty
Product Description: P6mm HD Rental LED Video Wall 576mmx576mm 96x96dots Indoor LED Display
Inquiry Now

P6mm HD Rental led video wall 576mmx576mm 96x96dots indoor led display

High Refresh,Die Casting Aluminum Cabinet,High Grey Grade,Low Consumption. including linsn led receiving card.

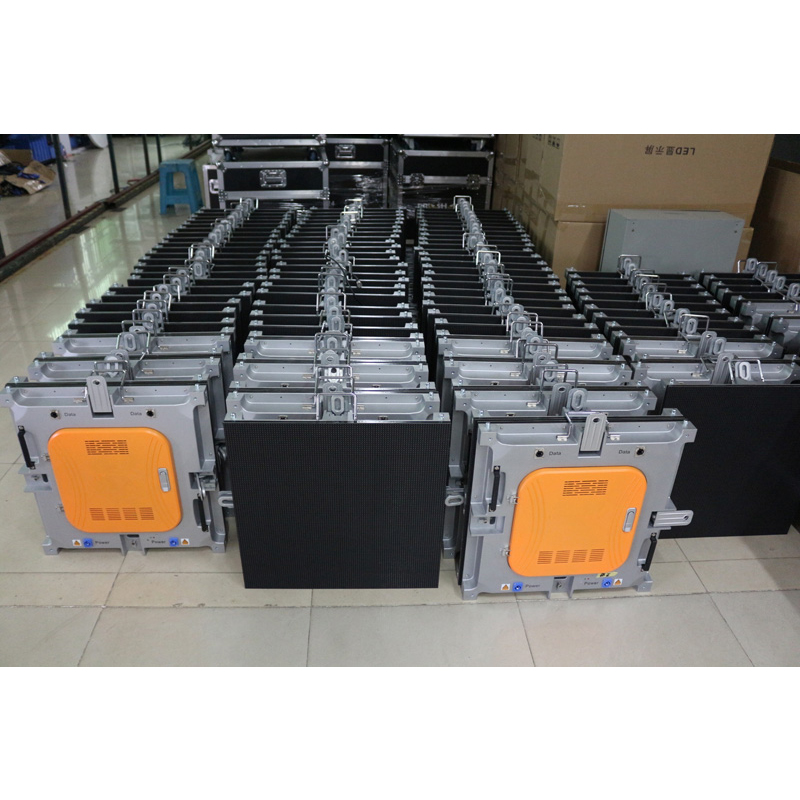

Ph6mm Die Casting Aluminum LED Cabinet

Item	Parameter	Remark
Pixel Pitch	6 mm
Cabinet Material	Die-cast aluminum
Color	Silver gray
Cabinet Size	576*576 mm
Cabinet Resolution	96*96 pixels
Module quantity	2*2
Density	27778 pixels/㎡
White balance brightness	≥1500CD/㎡
Color temperature	6500K——8000K
Viewing angel	H:120;V:120
Protection grade	Front/Rear:IP30/IP30
Non-Flatness	＜0.5mm
Module interval	＜0.5mm
Cabinet Weight	13.5kg/Cabinet	With power supply
Packaging Gross Weight(KG)	110kg(Estimated data)	6pcs / Case
Packaging dimension	780780940mm(Estimated data)	6pcs / Case
Maximal power/㎡	600W/㎡
Average power/㎡	320W/㎡
Frame frequency	≥60Hz
Refresh frequency	1920Hz	Depending on the selected drive chip and control system
Gray grade	13bit	Depending on the selected drive chip and control system
Brightness adjusted	256 grade by auto-optic/color &8 grade by hand
Input signal	RF,S-video,RGB,RGBHV, YUV,YC&Composition,etc
Control system	Novastar / Linsn /
system supports	Windows XP,WIN 7，
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0002

Ph6mm Rental LED Cabinet Advantages:

(1) Light. Cabinet size of 576*576mm and light weight of only 13.5 kg enable one-person installation easier and simpler, save installation time. But traditional HD stage led screen is over 35 Kg with the same size.
(2) Thin. Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.
(3) Quick. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
(4) Easy. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
(5) Compatible. New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor led module such like P4, P5.33,P6.4,P8,P10.66,P12.8,P16 are compatible.
(6) Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
