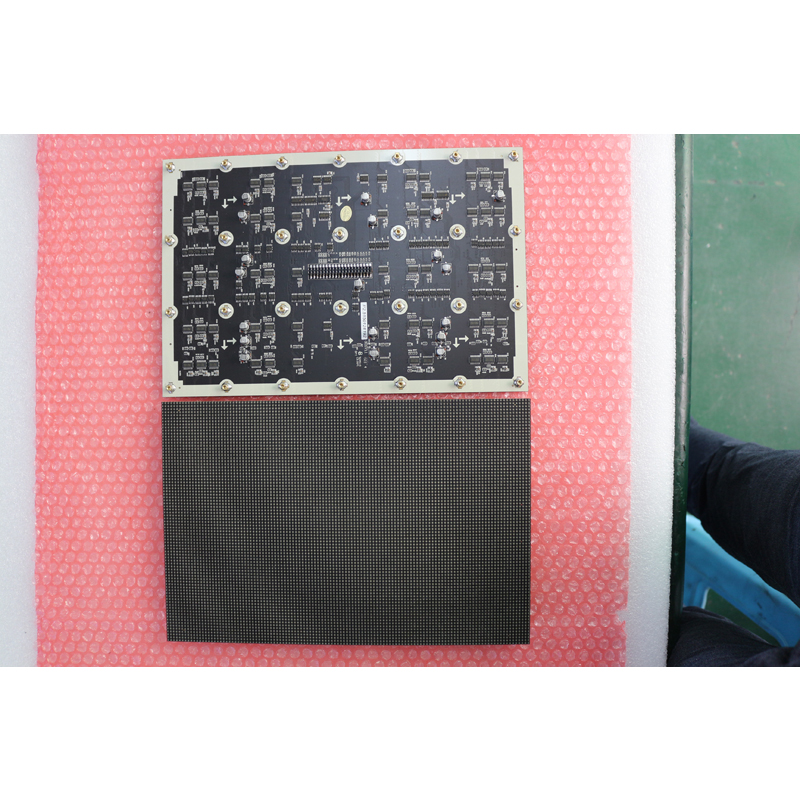

P2.5mm Die-Casting Aluminum LED Module

P2.5mm Die-Casting Aluminum LED Module 80x120dots,200x300mm High Resolution LED Module for die casting aluminum led display screen

P2.5mm Die Casting Aluminum LED Module Specification:

1) LED Package: SMD1010
2) Pixel Pitch: 2.5mm
3) Pixel Configuration: 1R1G1B
4) Density: 160000 pixels/㎡
5) Module Size:200*300mm
6) Cabinet Size: 400*300mm
7) Cabinet Material: Die-cast aluminum
8) Cabinet Weight: ≈5.5KG
9) Brightness: ≥1200cd/㎡
10) Viewing Angle: 120°(Horizontal); 120°(Vertical)
11) Driving Mode: Constant current, 1/30 duty
12) Refresh Frequency: ≥900Hz
13) Max. Power Consumption: 2000W/㎡
14) Working Temperature: -20°C～+60°C
15) Life Time: more than 100,000 hours

Ph2.5mm Aluminum LED Module Features:

1. Ph2.5mm SMD LED Module use SMD1010 black body LED, can get very high contrast rate: 9000: 1 with best color uniformity.
2. High resolution, Up to Pitch 2.5mm. 160000pixels in 1 square meter. With high density, it is able to produce high quality graphic & video.
3. Large viewing angle, Up to 140° (Horizontal & Vertical).
4. Work with Novastar and linsn led control system, guarantee very high refresh rate, no scaning line when taked photos or videos.
5. UNIT SMD LED Display takes with fast heating spread, to protect screen effectively and increase the use life largely.
6. ENBON P2.5 LED screen is designed as slim body & light weight, Easy maintenance.
7. This display can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats synchronously with PC.
8. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.Technical Prameters
9.Signal & power aviation connectors are water & dust proof, stable and reliable.
10.Cushion under the cabinet can protect the modules from being damaged.
11.Good color and brightness conformity. The LED chip is sorted by 2.5mm, while the chip brightness difference is within 10%.

UNIT LED Suggestion:

You can buy the outdoor led module,led control card, led display parts and other led display accessories from UNIT LED, and then assemble them into a complete outdoor led display at your workshop. In this way, you can not only save the expensive import tax for the led video wall, but also provide your customers with the local-made led display screen,which are easily accepted by local customer who do not believe the made-in-china led video wall.

UNIT LED Factory Stock

UNIT LED usually keep 2000 pcs of outdoor led module for each model in stock for sale. we can ship the led display module to your customers by express within 5 days after received the payment.then your customer will enjoy the fast delivery!

UNIT LED Terms:

Delivery time: within 3 working days after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: strong cardboard carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the outdoor led module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.

UNIT LED Provide the 2 Years Warranty for indoor led display module, all indoor led module with high quality control production. each led pixels has been tested for 72 hours. it has best color uniformity and colors. indoor led sign module widely used for high resolution led display to show the HD videos. the normal led brightness is 1500-2500 nits (cd/m2).if you are looking for high quality in stock indoor smd led module. please contact UNIT LED.
