| Unit Module | |
| Pixel Pitch | 2.5mm |
| LED Arrangement | SMD2121-black led |
| Driver Mode | Dynamic 1/32 Duty constant current |
| Pixel Configuration | 1R1G1B |
| Density | 160.000 dots/m2 |
| Size of Block Module | Max. 360mm x 200mm |
| Module Resolution | 144(H)×80(V) |
| Mask | Pure Black mask-high contrast screen |
| Size Screen | Max. 3600mm x 2800 mm |
| Resolution of Screen | 1440 x 800 pixel |
| Brightness | ≥1200cd/㎡ |
| Best Viewing Distance | >2M |
| View Distance | 2.5m-25m |
| Best Viewing Angle (V) | ≤120 degrees |
| Gray Scale | 14bits input, correction with 16bits |
| Display Color | 16.7M |
| Brightness Adjustment | 0-100 levels |
| Operation Power | AC100-240V 50-60HZ Switch-able |
| Frame Update Frequency | 60-75Hz |
| Screen Refresh Frequency | 960-2000Hz |
| Gamma Correction | -5.0—5.0 |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Support VGA Mode | 800×600,1024×768,1280×1024,1600×1200 |
| Color Temperature | 5000-9300 adjustable |
| Operating Temp. | -20-60 Celsius degree |
| Operating Humidity | 10-95% RH |
| Operating Life | 100,000 hours |
| Continous Working Time | ≥48 hours |

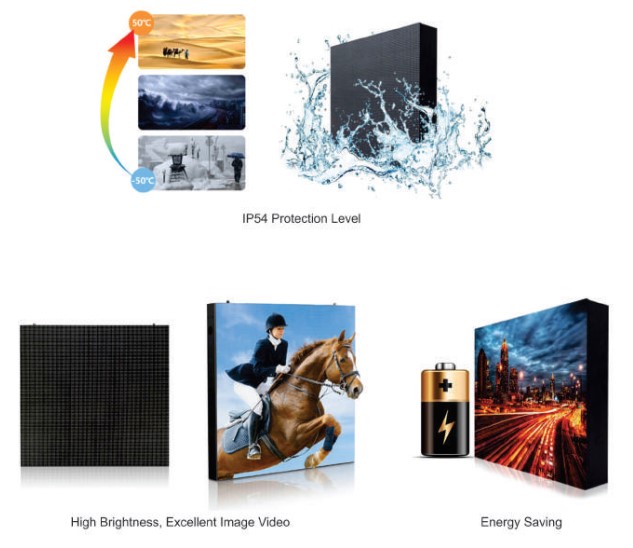

| Protection Level | IP54 |
| Out of Control Pixel Rate | 0.01% |
| Hub Port | Hub75 |
