Outdoor Frontal Service LED Module

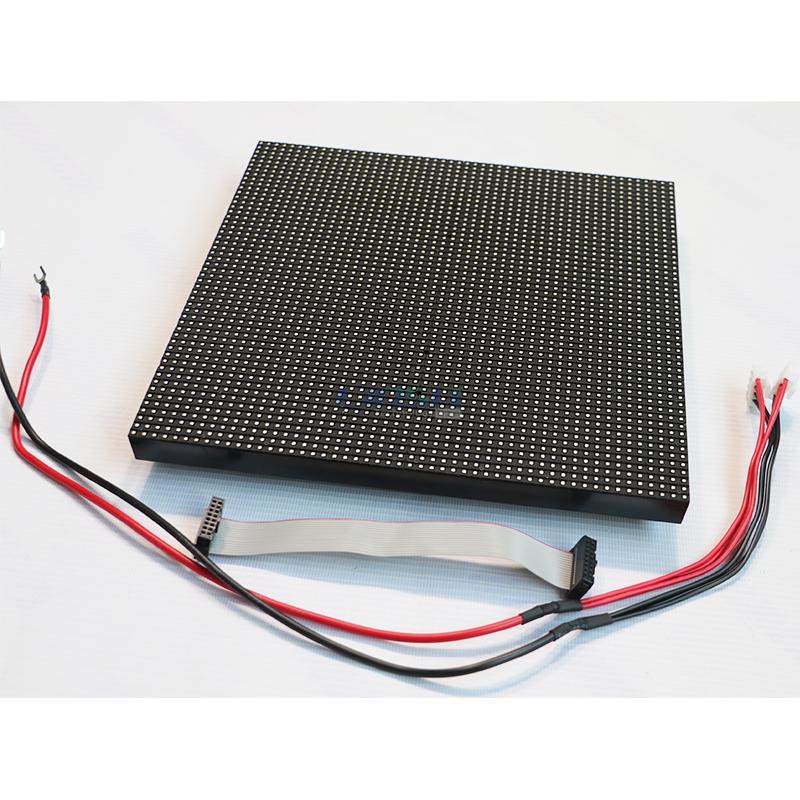

Outdoor P4.81mm Frontal Service LED Display Module

Outdoor P4.81mm Frontal Service LED Display Module

LINSN-OFS-4.81-250X250
Outdoor LED Module
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: Outdoor P4.81mm Frontal Service LED Display Module, Dual Service LED Panel Size is 250mmx250mm With 52x52 dots.
Inquiry Now

Outdoor P4.81mm Frontal Service led display module, Dual Service LED Panel Size is 250mmx250mm With 52x52 dots.

P4.81mm Outdoor Frontal Service LED Module Specifications:

Items	Parameter
Product Model	P4.81mm Dual Service LED Module
Module size	250x250mm
resolution ratio	52*52dots
Pixel pitch	4.81 mm
Pixel density	43264dots/sqm
Pixel configuration	RGB 3 in 1
Driving method	Constant Current Driving,1/7 scan
Working voltage	DC5V
Module maximum power consumption	55W/Pc
Led Lamps	SMD1921
Electrical Parameters
Frame rate	60Hz/Second
Refresh rate	≥1920HZ
Brightness in White Color (cd/m2):	6000-6500 CD/m2
Contrast ratio	≥4000:1
Life time	≥100000 hours
Operating humidity	10%-90%RH
Average power consumption	≤400W/m2
Viewing Angle	120(Horizontal),120(Vertical)
Best Viewing Distance	4.8m-48m
Input Voltage	110V/60HZ-220V/50Hz Switchable

P4.81mm Outdoor Front and Rear Service LED Module with 250mm x 250mm

Specially developed for dual maintenace on both front and back sides of the LED Display with limited space.

Dual-maintenance led module design

outdoor frontal service led module

outdoor frontal maintanence led display module

From both the front side and the rear side. People usually use its front maintenance function.Easy maintenance, easy to take the modules with a hexagonal screwdriver.No screws, easier to take the modules and mount the modules on the cabinet.superior solution in application for outdoor branding and adveritising.

LED Display Cabinet with best design for easy connnection and easy assembling, aslo the Monitoring Function to check the working status of LED Display Parts. Customer Logo is avaliable for Your Brand Building.

front maintanence led display

Where there is no space behind of led screen,you can choose our waterproof ip65 front service led module,the cabinet is still with back doors,but that is only for easy assembly in UNIT LED factory.when the ip65 led display installed,it is no longer necessary to open the back doors,becasuse you can take out the ip65 frontal service led display module from the front side.

frontal access led display panel
