(Pixel to pixel display,equal of 3 led video processor, 4Kx2K HD video input, 4Kx1K high resolution output, preview and program output, DP loop out, freeze mode,can extend 3G/HD SDI)

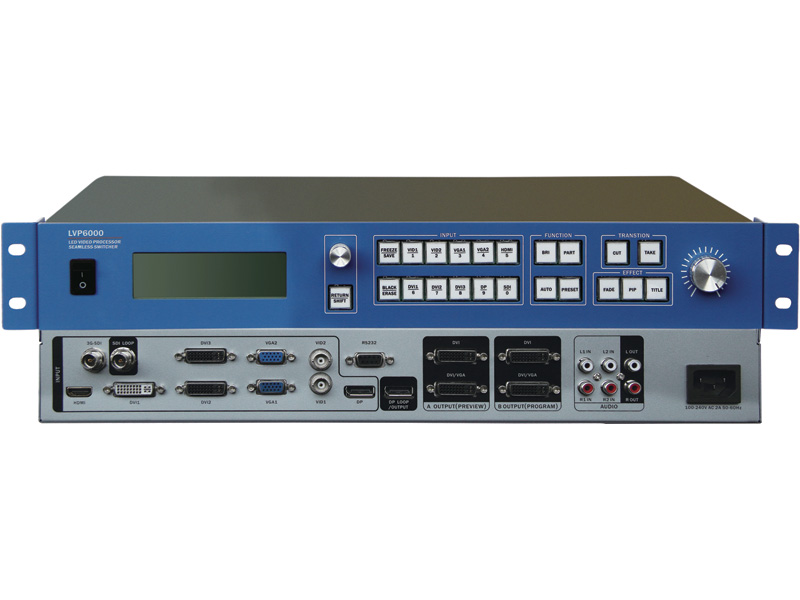

LVP6000 is a mixing equipment of seamless switcher and high-end LED video processor. It can support 10 video inputs and 2 outputs, up to 4Kx2K (4096x2160)ultra HD video input and 4Kx1K(3840x1080)high resolution output. LVP6000 support preview and program output, it can achieve the dynamic seamless switching in all the channel, it also contains a variety of transition effects, knob style T-Bar manual switch function. LVP6000 can meet the pixel to pixel requirement of auto show and high-end presentation, etc.
|
INPUT
|
||||
|
Interface
|
Quantity
|
Connector
|
Spec
|
|
|
DP
|
1
|
DP
|
DP1.2
VESA Standard , PC to 4096x2160
|
|
|
HDMI
|
1
|
HDMI
|
HDMI1.4, DVI1.0
VESA Standard , PC to 1920x1200, HD to 4Kx2K@30Hz
|
|
|
DVI
|
3
|
DVI-I
|
DVI1.0 , HDMI1.3
PC to 1920x1200, HD to 1080p
|
|
|
VGA
|
2
|
DB15
|
R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level：300mV Sync-tip：0V
VESA Standard , PC to 1920x1200
|
|
|
VIDEO
|
2
|
BNC
|
PAL/NTSC/SECAM 1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm Resolution : 480i, 576i
|
|
|
3G-SDI
|
1
|
BNC
|
3G-SDI:1080p 60/50/30/25/24 1080i 60/50, 720p 60/50 625/525 line
Support signal loop out
|
|
|
OUTPUT
|
||||
|
Interface
|
Quantity
|
Connector
|
Spec
|
|
|
DP
|
1
|
DP
|
DP1.2
Resolution : Up to 4096x2160
|
|
|
A OUTPUT
(PREVIEW)
|
VGAx1,
DVIx2
|
DVI-I
|
VGAStandard： R、G、B、Hsync、Vsync:0 to1Vpp±3dB (0.7V Video+0.3v Sync ) 75 ohm black level：300mV Sync-tip：0V
DVI Standard : DVI1.0
Resolution: 1280x1024@60Hz 1920x1080@60Hz
3840x1200@Hz(A+B) 2304x1920@Hz(A+B)
User Timing(A+B)
|
|
|
B OUTPUT
(PROGRAM)
|
VGAx1,
DVIx2
|
DVI-I
|
||
|
GENERAL
|
||||
|
Weight
|
4.5kg
|
|||
|
Dimensions
|
6.5cm(H)x44cm(W)x32cm(D)
|
|||
|
Power supply
|
100VAC – 240VAC 50/60Hz
|
|||
|
Power consumption
|
35W
|
|||
|
Working temperature
|
0°C～45°C
|
|||
|
MODLE
|
PRODUCT DESCRIPTION
|
|||
|
LVP6000
|
Standard models
|
|||
|
LVP6000S
|
SDIx1 module
|
|||
|
LVP6000A
|
AUDIOx1 module
|
|||
|
LVP6000SA
|
SDIx1 module+AUDIOx1 module
|
|||
