Indoor LED Display Module

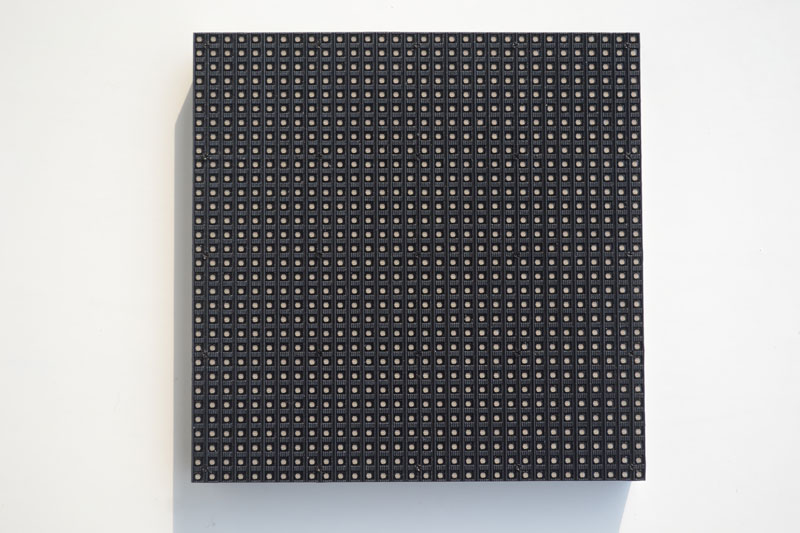

Indoor P3.9mm 250mmx250mm LED Module

Unit Module
Pixel Pitch	3.9 mm
LED Type	3 in 1 Black SMD
LED encapsulation	SMD 2121
Pixel Configuration	1R1G1B
Brightness	≥ 850nits/m²
Pixel Density	65.536 Pixels/m2
Module Size	W250mm x H250mm
Module resolution	64 x 64dots
Environment	Indoor
Panel Size	W500mm x H1000mm x D63mm
Pixel per panel 128x256 pixels
Material	Die-cast Aluminum
Weight	≤11 kg/panel (max 11 kg/panel)
Maintenance	Back Service
Aspect Ratio	1:2
Contrast Ratio	3.000:1
Area panel	0.5m²
Planeness	≤0.25mm
Ingress Protection	IP30
Recommended View Distance	≥3.9m
Calibration	Support Brightness and Chroma
Brightness Control	Manual/Automatic
Color Temperature	6.500 - 9.300k adjustable
View Angle Horizontal	140◦
View Angle Vertical	120◦
Power Consumption (Max)	300w/panel
Power Consumption (Typ)	100w/panel
Input Voltage	200-240 VAC
Process depth	14 bit
Scan Method	1/16
Refresh rate	3840 Hz
Video Frame Rate	50/60 Hz
Input Power Frequency	50-60 Hz
Input signal	DVI,VGA,SDI,HDMI
LED Life Time	≥95.000 Hours (min 95.000 hours)
Storage Temperature / Humidity	-20ᵒC + 50ᵒC/10 - 80%RH
Operating Temperature / Humidity	-10ᵒC + 45ᵒC/10 - 80%RH
Operation temp	-20℃~+60℃
Operation Humidity	10%～90%
Strength status	Diagnostic LEDs
Standard installation configuration	Hanging, Stacking
