Indoor LED Display Module

P2.976mm Indoor LED Module 250mmx250mm

Model:LINSN-LM-P2.976-I-84X84
SMD LED Display Module
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: P2.976mm Indoor LED Module 250mmx250mm Best Color Uniformity High Refresh Rate 84x84 Pixel for Each Panel
Inquiry Now

P2.976mm indoor led module 250mmx250mm Best Color Uniformity High Refresh Rate 84x84 Pixel for Each Panel

Remark:

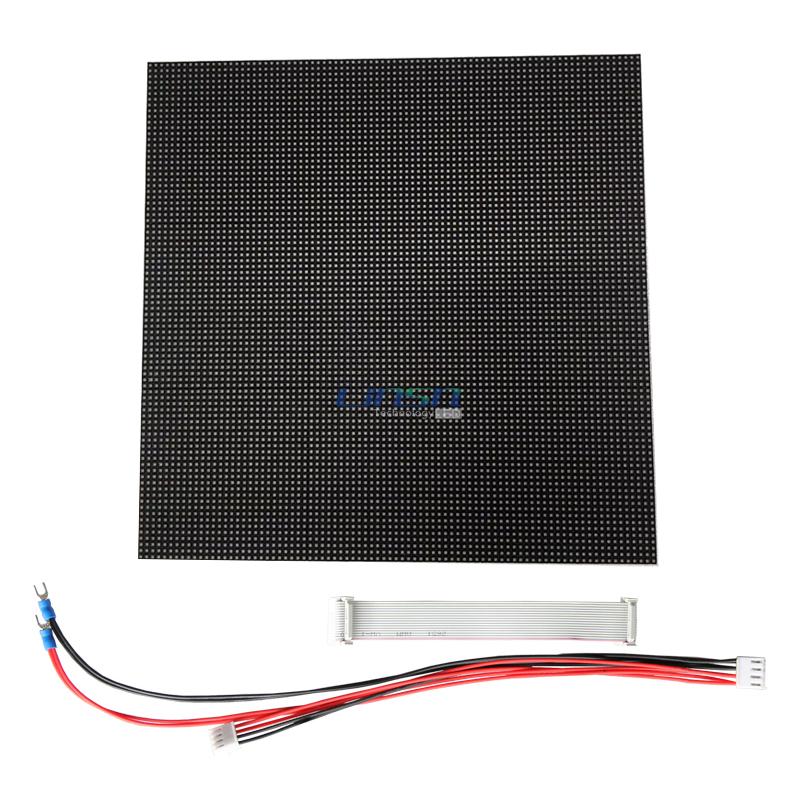

1. LED Module Including the Data & Power Cables.

2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

Model					LINSN-P2.976-I-84X84
1.LED

Color	Package		Intensity		View Angle	Wavelength	Test Cond.
Red	SMD 2121		150mcd		140/140	620nm	25℃,20mA
Green	SMD 2121		400mcd		140/140	520nm	25℃,20mA
Blue	SMD 2121		100mcd		140/140	470nm	25℃,20mA
2.LED Module
Resolution		84(H)×84(V)
Pitch		2.976mm
Density		112896 pixels/㎡
LED Arrangement		SMD2121
Driver Mode		Dynamic 1/28 Duty constant current
Size		250mm×250mm
Mask		Pure Black mask-high contrast screen
3.Electricity Parameter
Optical Ratings
Brightness				≥1000cd/㎡
View Angle				140 degree ( horizontal) 140degree(vertical)
View Distance				3m-40m
Gray Scale				8bits input, correction with 16bits
Display Color				16.7M
Brightness Adjustment				100 levels
Power Supply
Operation Power				AC100-240V 50-60HZ Switch-able
Maxim Power Consumption				750 W/m2
Average Power Consumption				360 W/m2
Control System
Correction Scale Level				16bits
Frame Update Frequency				60Hz
Screen Refresh Frequency				960-1920Hz
Gamma Correction				-5.0—5.0
Support Input				Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance				Ethernet cable 100m, optical fiber 5km
Support VGA Mode				800×600,1024×768,1280×1024,1600×1200
Color Temperature				5000-9300 adjustable
Brightness Correction				dot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.				-20-60 Celsius degree
Operating Humidity				10-95% RH
Operating Life				100,000 hours
MTBF				5000 hours
Continuous Working Time				≥48 hours
Protection Level				IP54
Out of Control Pixel Rate				0.01%

Shipping & Payment Terms:

Delivery time: Deliver in 24 hours after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: Strong Cardboard Carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the led display module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.

led display module aging and testing is refers to imitate the long time operation without working problems,it is the most important to ensure the reliability of the LED display. LED display can be more stable after aging, and it can help the use of the efficiency. led screen aging test is a very important link in quality control.

The LED aging test is based on the product's failure rate curve, which is the characteristics of the bathtub curve, and the countermeasures are adopted to improve the reliability of the product.The indoor led module aging method includes constant current aging and constant pressure aging. A constant current source is that the current is constant at any time. The frequency is not constant. That's communication or pulsating current. The communication or pulsating current source can be described as the effective value stable, but this power supply cannot be called "constant current source".Constant current aging is the most consistent feature of LED current operation and is the most scientific method for the aging of LED displays. Over current impact aging and manufacturers the latest clothing design school chooses an aging technique, after using the frequency adjustable, current adjustable constant current source for such aging, in order to judging the quality of the outdoor led module in a short time and can pick out the dangerous LEDs make sure the led display module working well after installation.

The aging of LED display is divided into white balance aging (2x24 hours) and video aging (24 hours).totally 72 hours before packing.

Aging test process of led display screen:
1.Check the led display module to install all correct.
2.Check whether there is a short circuit or not.
3.Check whether the module is flat and neat.
4.Check whether the appearance is intact or not.
5.Use the online led control system to light up.
Make sure the testing time is continuously light for more than 72 hours

After the aging test, please check the quality control group for parameters.Test content: white balance, red, green, blue,gray gradient,video effect,text effect.after 72 hours aging test,the problem should be reported to the manager of the engineering department in a timely manner.replace or repair the broken leds. making sure all parts will be working well stably before packing.
