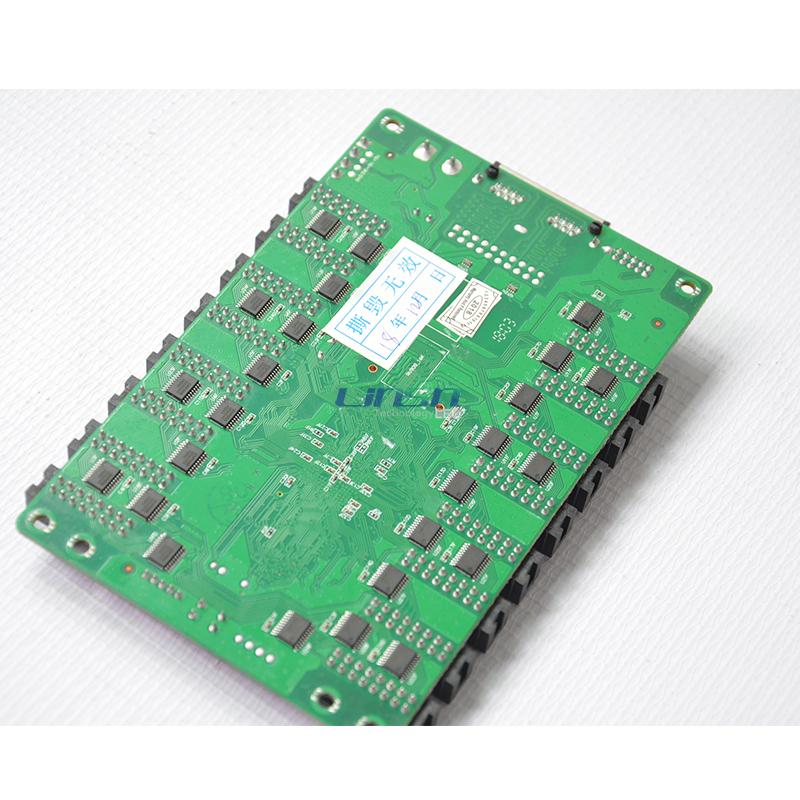

LINSN RV916 led receiving card Support 1/32 Scan For HD Indoor led display module with 16 pcs HUB75E Interface

The RV916 LED Receiving Card have 16 PCS HUB75E and Support 1/32 Scan way for the indoor led module such as p2.5mm,p3mm.

It has the Features compared with RV801:

1.It has 16 pcs HUB75E of 16P interface,Hub card is no need anymore.support 32 groups RGB Data,512*512.
2.support 12-bit color HDMI inputs (need to send cards with nine generations)
3.using 18 signal processors, maximum support RGB each 18 (260,000) gray
4.single card maximum support 1024X256 pixels, 1,024 single-point color correction
5.supports single-card color space conversion
6.Support configuration file readback
7.support program to copy
8.hot backup support dual receiver card for demanding performances Screen
9.support pixel fault detection (to be supported by a dedicated chip)
10.Support the network cable BERT
11.Support for cable fault detection
12.support cabinet door switch monitoring
13.Two fan speed monitoring
14.three-way voltage monitor, all the way for the system, two external power supply box
15.temperature monitoring
16.Humidity Monitor (need humidity sensor)
17.Smoke Monitor (need smoke module)
18.CE-EMC standards in line with EU
