Indoor Rental LED Display

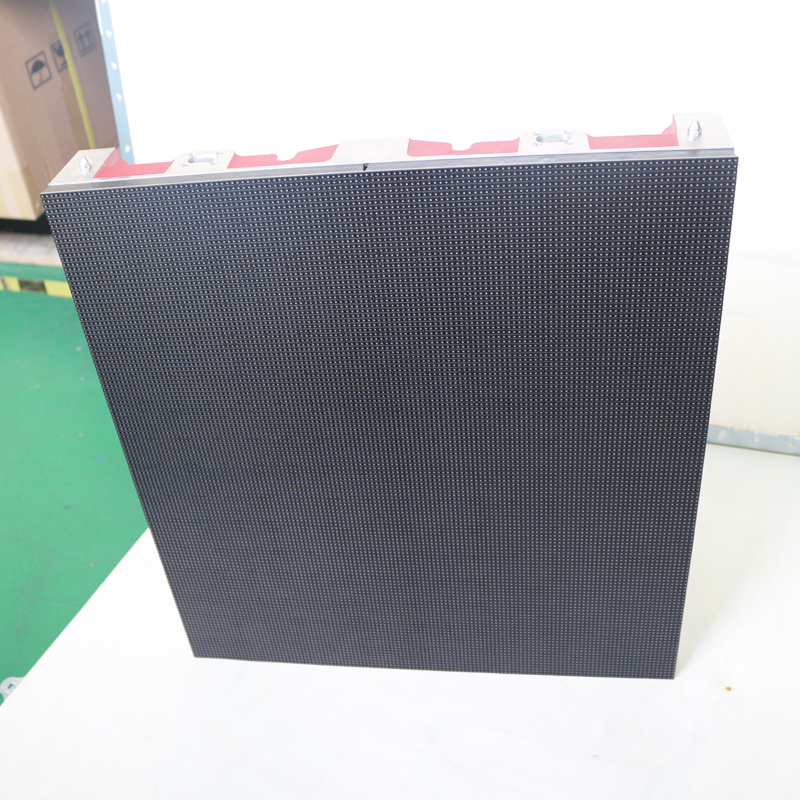

Indoor P3.91mm Rental LED Video Wall

Model:UNIT-P3.91/I/500X500-R
Rental LED Display
2 Years Warranty
CE,RoHs,FCC Approved
Product Description: P3.91mm Rental LED Video Wall,500mmx500mm HD Indoor LED Display Screen 500mmx1000mm Rental LED Display
Inquiry Now

P3.91mm 500mmx1000mm Rental led video wall,500mmx500mm HD Indoor led display screen

<a href=../rental-led-display.html target='_blank'>rental led display</a>

<a href=../linsn-led-display.html target='_blank'><a href=../rental-led-display.html target='_blank'><a href=../rental-led-display.html target='_blank'>rental led screen</a></a></a>

rent led display

rent led display panel

rental led wall

<a href=../rental-led-display.html target='_blank'><a href=../rental-led-display.html target='_blank'>rental led panel</a></a>

stage rental led display

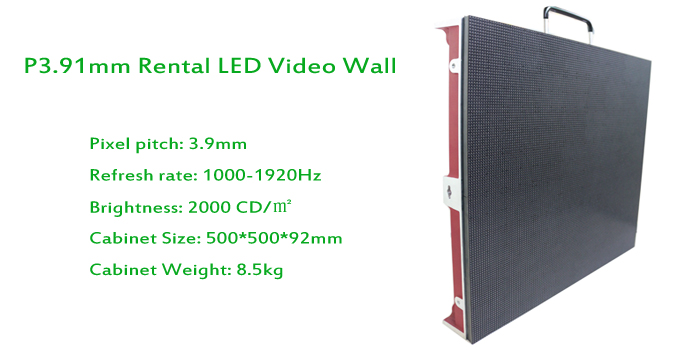

Ph3.91mm LED Video Wall Specification:

Pixel Pitch(mm)	3.91mm
LED Package	SMD2121
Module Pixel (dots)	64dots×64dots
Module Size (mm)	250mm(W)*250mm(H)
Cabinet Size (mm)	500mmx500mm
Input Voltage（AC）	220V±10% or 110V ±10%
Current Leakage to Ground (mA)	< 3
Average Power Consumption (W/㎡)	320
Max. Power Consumption (W/㎡)	850
Control Mode	Synchronization
Control System	VAG+DVI Card＋Control Cards＋Transmission Cables
Scan Mode	1/16
LED Drive Mode	Constant Current
Brightness (cd/㎡)	2000
Pixel Density	65746dots/㎡
Viewing Distance(m)	3~25m
Hor. Viewing Angle(degree)	160°
Ver. Viewing Angle(degree)	120° or 160°
Brightness Calibration	256 grade
Gray Calibration	256～4096 grade
Using Life	100,000 Hours
MTBF	>10,000 Hours
Scatter OOC Point	<0.01%
Continuous OOC Point	1‰
Working Temperature	-20℃～+40℃
Working Humidity	10～60%

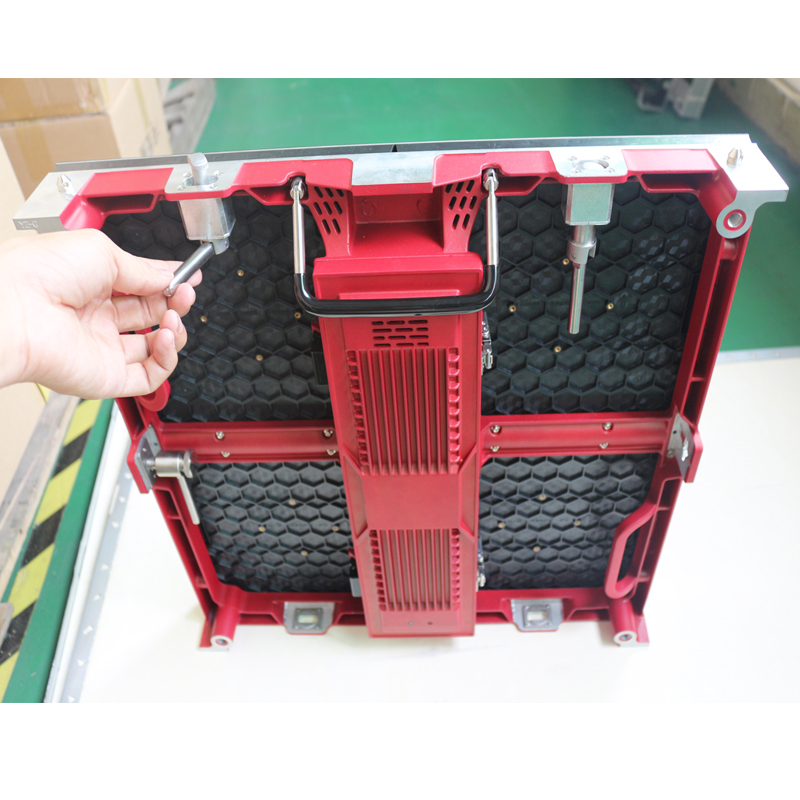

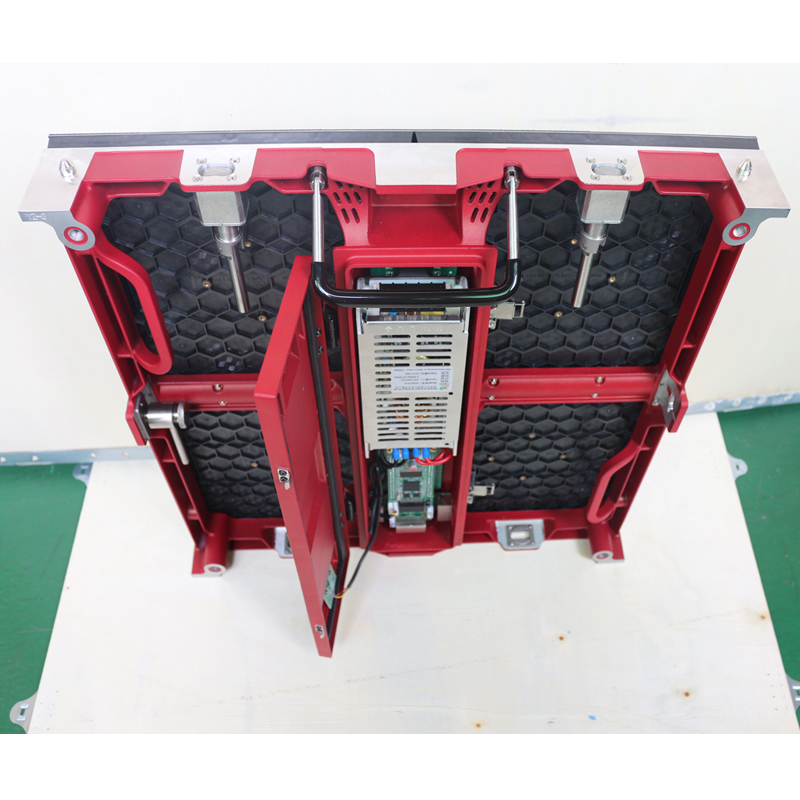

Features of HD Ph3.91mm Rental led video wall die-cast aluminum cabinet

(1) Light. Cabinet size of 500*500mm and light weight of only 8.5 kg enable one-person installation easier and simpler, save installation time. But traditional HD stage led screen is over 25 Kg with the same size.
(2) Thin. Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.

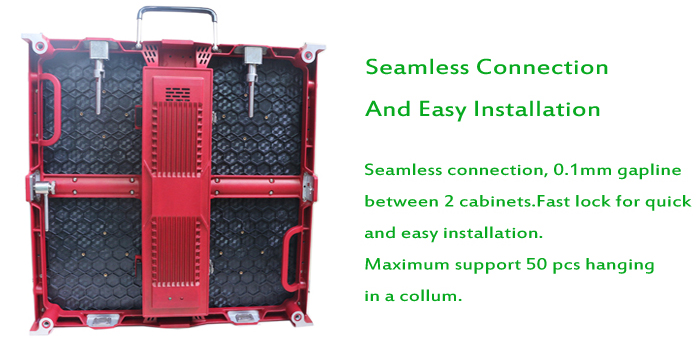

(3) Quick. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
(4) Easy. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
(5) Compatible. New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor led module such like P4, P5.33,P6.4,P8,P10.66,P12.8,P16 are compatible.
(6) Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
