Magnesium Alloy P2.604mm 500mmx1000mm Indoor rental led display With Rear & Front Service.Easy Maintanence and Easy Installation

Main Specifications:

Model	LINSN-IR-P2.604-500X1000
LED	SMD 3in1
Pixel	2.604mm
Module size	250*250mm
Module resolution	96*96dots
Density	147456 pixels/sqm
LED Cabinet Size	500*1000*75(mm)
Cabinet Weight	12 kg/pc
Material	Die Casting Magnesium Alloy
Brightness	800-1200 cd/m2 (Nits)
Average power consumption	450w/m2
Maximum power consumption	900w/m2
Optimal Viewing Distance	2.6m to 26m
Grey Level	14 bits
Fresh frequency	1920-3840HZ
Humidity-operating	10% ~ 95%
Temperature-operating	-20℃~+50℃
Screen life	≥100000 hours
Controlling mode	Synchronization or Asynchronous
Controlling system	Novastar/Linsn/Huidu
Protective grade	IP54
Certificates	CE,RoHs,FCC,UL
Warranty	3 Years

1.High Quality LEDs

The Indoor LEDs we choose Kinglight or Nationstar LED that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

2.Driving IC

To achieve the best visual performance of our indoor and outdoor led display,we use the Best Driving IC,such as MBI5124,SUM16136/MBI5153/2038S with high refresh rate,high grey level with latest technology. and config the best Brightness Efficiency by the led screen Software.

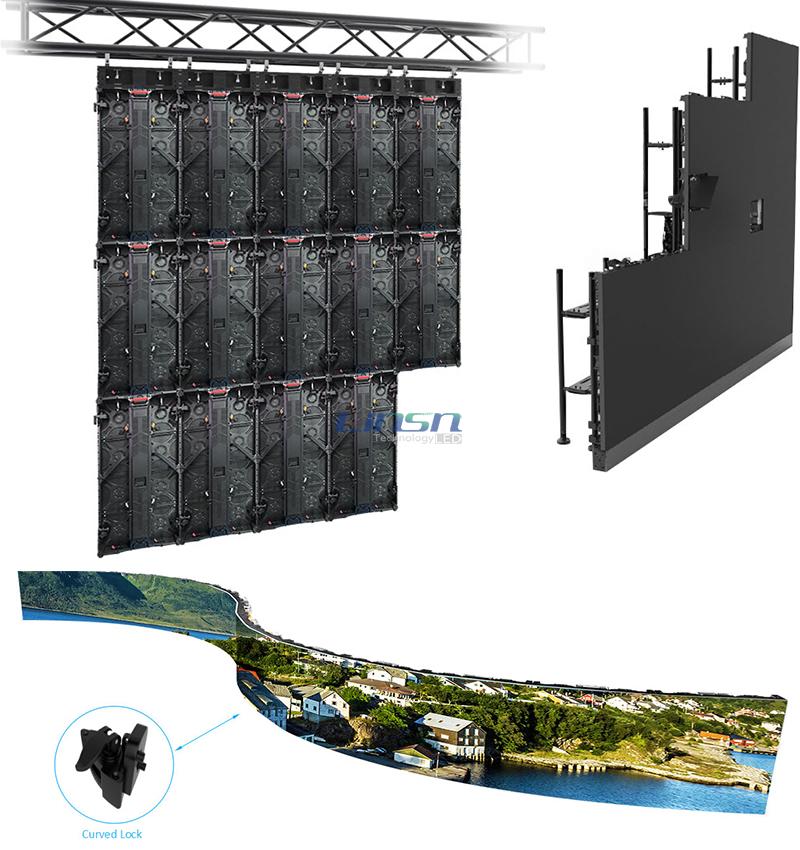

3.Double Maintanence Service,Easy Installation

Latest Die Casting Magnesium Alloy LED Cabinet Design,it can be used for indoor 2.604mm,2.98mm,3.91mm,4.81mm,and outdoor 3.91mm,4.81mm.it can be rear service or frontal maintanence for easy installation.

4.Curved LED Cabinet Design for creative led display

The Cabinet is curved design for 20 degree adjustment. You can use it for Creative LED Display such as Around LED Screen,Curved LED Display For Any Sharp

5. HDMI,SDI,S-Video,DVI singal input.

led video processor can receive different signals like HDMI,SDI,VGA from DVD or other video player,to show the best video effects for your led display applications.

6.Carton Packing,Wooden Box Packing,Flight Case Packing

Noramlly, Rental LED Display Cabinet packed by Flight Case Packing, For some special purpose linsn led provide Carton Packing and Wooden Box Packing to save your cost.

7.LINSN LED Factory View

LINSN LED has builded a long term relationship with LED Display Material Supply,such as Nichia,Cree,Epistar LED,aslo the Nationstar LED,Meanwell LED Power Supply,Linsn,Novastar etc.
