2.Super thin,save space,same volume truck could load more 50%,reduce the cost of rental businessman.
3.Easy maintaining,any one of the screen happen fault could easy push out to change,no need high altitude maintenance.
4.Fast installation,installation speed is 2 times of traditional screen with patent frame structure.
5.More Ceative installation,could do any letters,numbers heart shaped and any other shapes,as well as light screen combination.
6.New Nano material,using polymer nano composite material,first class with flatness and strength,100kg guys stand on the cabinet aslo will no broken.
7.Quick turnaround,no need screws and wrench when installation,more efficient,is not lost when transition.
8.Unique hand pull the power cord design,reduce 50% plug times when installation,power cable will not lose when transition.
9.Patent magnetic frame carrier,quick lock design,quick installation,unarmed fix,no need tool.
4.Hidden thermal windows design
Neither leak dust,Circulation heat,Cooling effect is better.
5.Hand pull the power cord design
Construction to reduce the frequency of plug,Transition wire is not lost,one cabinet only need one set of air plug.

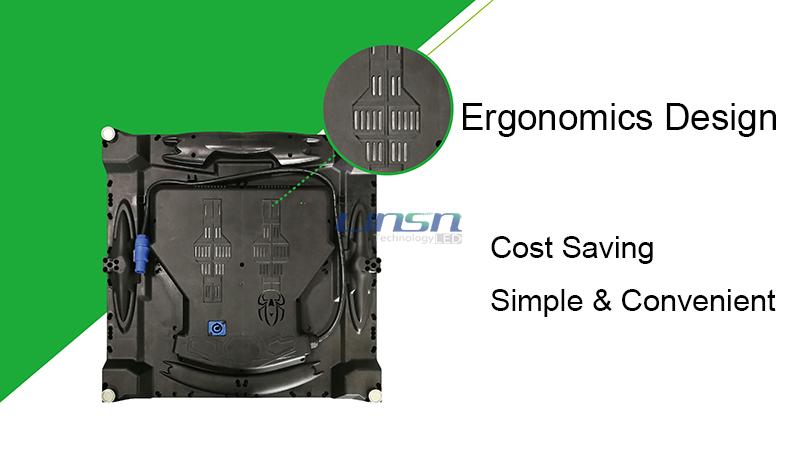

6.Signal Straight through design,45 Degree plug
The signal is more stable,cost savings,signal port with ergonomics design,more simple and convenient.
LED Cabinet Specifications: |
|
Pixel Pitch |
3mm |
Pixel Constitution |
SMD 3IN1 |
LED Encapsulation |
SMD 2121 Black LED |
Module Size |
192mm*192mm |
Nano Magnetic LED Cabinet |
576mm*576mm |
LED Cabinet Resolution |
192*192 dots |
LED Cabinet Weight |
4.2kg/cabinet |
LED Display Parameters: |
|
Display Resolution |
111,111 dots/sqm |
Brightness |
800-1200 cd/m2 (nits) |
Recommended Viewing Distance |
≥3m |
Optimum Viewing Angle |
140°/140° |
Power Supply Voltage |
110V/220V Switchable |
Max Power Consumption |
900W/sqm |
Driving Method |
1/32 Scan |
Gray Scale |
≥16.7M colors(Synchronized) |
Refresh Frequency |
≥1920Hz |
Frame Frequency |
≥60-75Hz |
Weather Protection |
IP43 |
Operating Temperature |
-20~50(-40~60optional) |
Operating Humidity |
10%-90% |
Average No Falure Time |
≥5000hours |
Life Span |
≥100,000hours |
LED Control System |
Linsn/Novastar/Colorlight/Huidu/Xixun etc |
Warranty |
3 Years Warranty |
Certificates |
CE,RoHs,FCC,UL,CCC |
