LINSN MAX500 P2.976mm Indoor rental led display For High-End Rental Events.

Linsn MAX 500 Series Indoor  & outdoor led display is LINSN latest LED display product with unique design and feature. the back cover is Removable the display visual effect is better, the image and video is more clean with uniformity color.

INSPIRATION

As a professional LED display manufacturer, LINSN MAX 500 Series LED display is inspired by the unity of design and elegance with the features of Texture, Nimble, Professional, Flat and Handy.

MORE MUTURE

LINSN MAX500 Series LED display is a more mature and more stable LED display product with the features of solid, easy, simple, precise, fast.the product can meet various requirements of indoor & outdoor applications.

LIGHTWEIGHT AND THIN

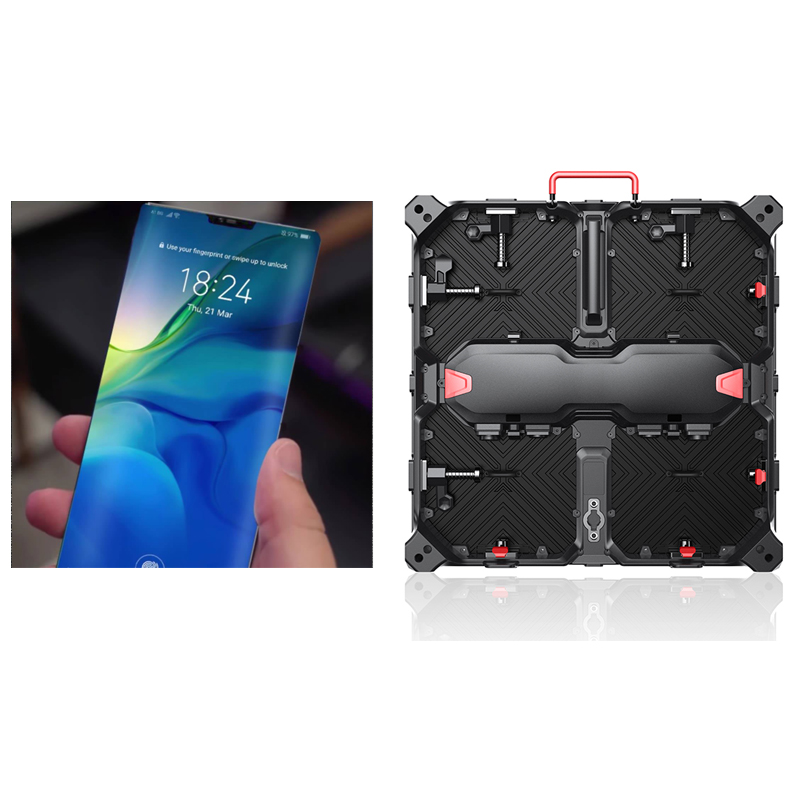

LINSN MAX500 Series LED display cabinet is portable and good stability with weight of 7.1kg of indoor led display and 7.5kg of outdoor LED display, the cabinet thickness is only 80mm. the cabinet size is 500×500mm.

the feature of lightweight make the LED display is easy to carry, transport and install,saving good amount of money on your labor costs.

PERFECT STRUCTURE

LINSN MAX 500 Series LED display with perfect cabinet from lifting handle, fast locks, panel handle, removable power & receiving box,hidden test button, stack installation joggle, power & signal indicator, power connector, signal connector.

Main Specifications:

Model	LINSN-MAX500-P2.976-I
LED	SMD 3in1
Pixel	2.976mm
Module size	250*250mm
Module resolution	84*84dots
Density	112896 pixels/sqm
LED Cabinet Size	500*500*75(mm)
Cabinet Weight	7.3kg/pc
Material	Die Casting Aluminum Cabinet
Brightness	800-1200 cd/m2 (Nits)
Average power consumption	250w/2
Maximum power consumption	600w/2
Optimal Viewing Distance	2.9m to 29m
Grey Level	14-16 bits
Fresh frequency	3840HZ
Humidity-operating	10% ~ 95%
Temperature-operating	-20℃~+50℃
Screen life	≥100000 hours
Controlling system	Novastar/Linsn/Huidu
Protective grade	IP54
Certificates	CE,RoHs,FCC,UL
Warranty	3 Years

QUICK REMOVABLE

LINSN MAX 500 Series LED display is designed with quick removable back cover for Power & Receiving box & hub board & connectors.the procuct is for different pixel pitches of indoor & outdoor installation.

FRONT SERVICE OR BACK SERVICE

LINSN MAX 500 Series LED Display is designed with Magnetic front service or Back service with screw. Strong handle for LED module.There are 10 magnetics for each led display module with strong installation pins.

EXCELLENT QUALITY

LINSN MAX 500 Series LED Display use Black LED. the product is High refresh rate, high contrast ratio, no ghosting.

Excellent visual quality, zero-gap alignment. No AB module(no up and down direction installation)Strengthen housing structure design, no deformation.

HIGH QUALITY MODULE

LINSN MAX 500 Series LED Display use Mask with screws. Convex surface No deformation. Strengthen edges. the LED display is High contrast ratio, High uniformity, High flatness and High alignment. Ultra viewing angle. Anti-collision protection for LEDs.

EASY INSTALLATION

LINSN MAX 500 Series LED Display is very easy for installation with Human engineering design.

OPTIMIZED PCB BOARD DESIGN

LINSN MAX 500 Series LED Display adopts Optimized PCB board design with 4 layers PCB.  There are Calibration-memo in PCB board.Perfect matched with LED display control system. Perfect heat sinking CE / EMC certified optional.the LED display installation is also very convenient for single person. fast and quickly.

THE CONTROL BOX

LINSN MAX 500 Series LED Display adopts Optimized Control Box with Quick removable without any tools optional. Hidden testing button avoid false touch.Universe hub board for different pixel pitches. No cable connection for power supply & hub board.Optimized heat sinking design and Good quality connector pins.

INSTALLATION WAY

LINSN MAX 500 Series LED Display can be installed with Ground Stack Installation, Hanging Installation,Special shape / Panel Dislocation Installation, Concave & convex installation Easy, fast, quickly and save time.
