Indoor Rental LED Display

Detachable NZ Series Indoor Rental LED Display

LINSN-IR-NZ-500X500
Indoor Rental LED Display
3 Years Warranty
CE,RoHS,FCC Approved
Product Description: Detachable Indoor Rental LED Display With 500*500mm Dual Service Rental LED Panel
Inquiry Now

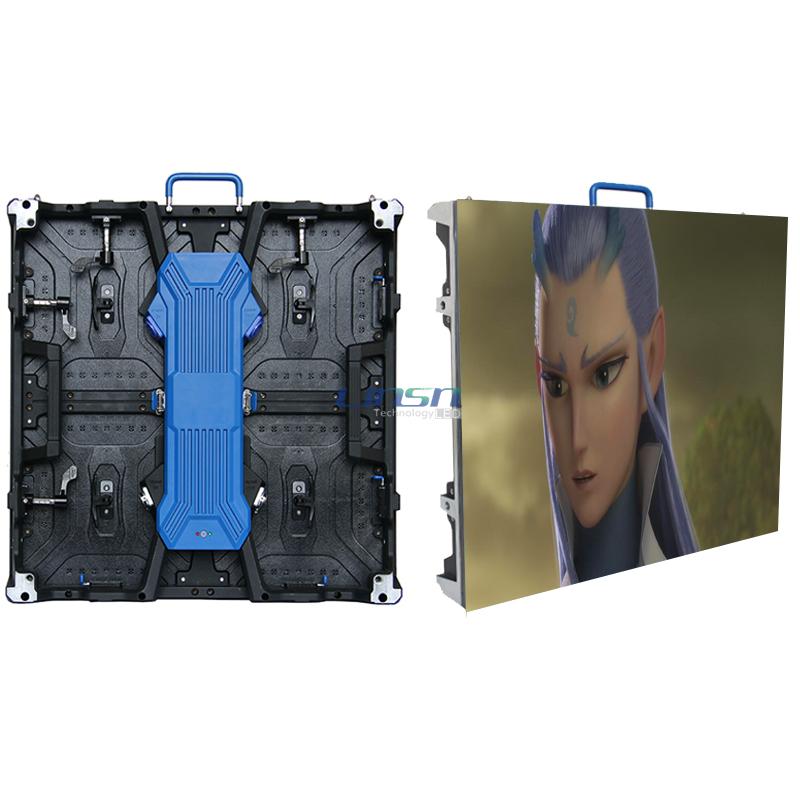

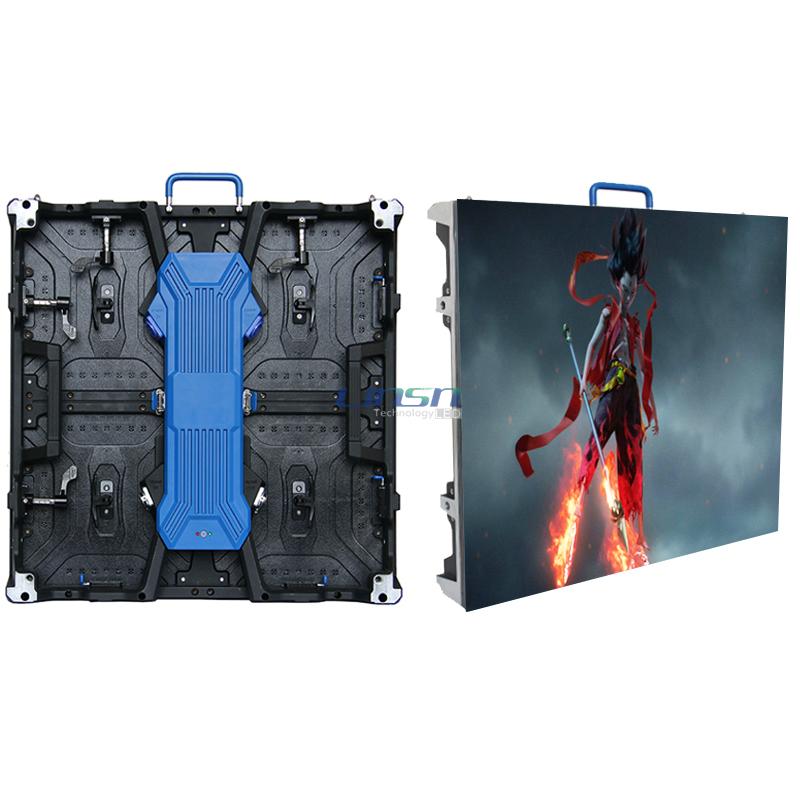

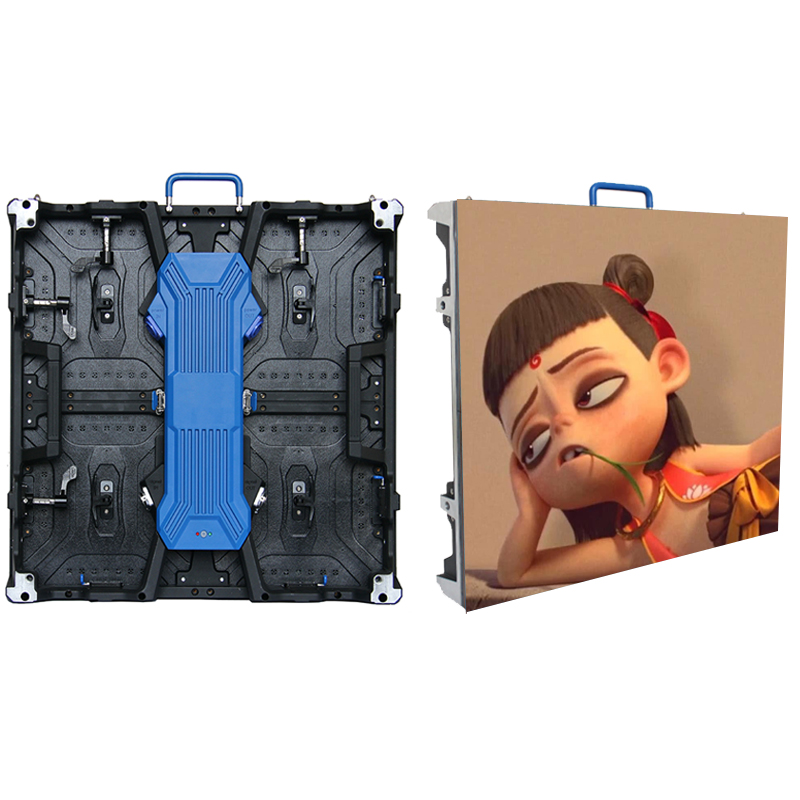

LINSN Detachable NZ Series Indoor rental led display

LINSN NZ500 Series Rental LED Display for indoor & outdoor events and applications. New desgin, better quality, better performance, better Color consistency.

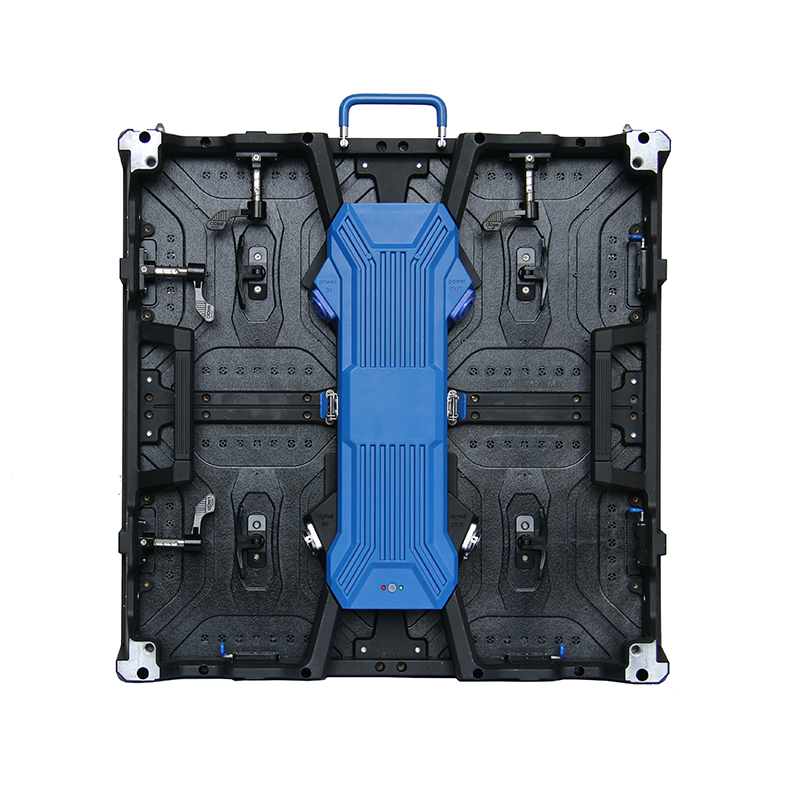

Standard size 500×500mm cabinet size, ultra lightweight High strength die-casting aluminum and back cover separation designto make the LED display maintenance simple.

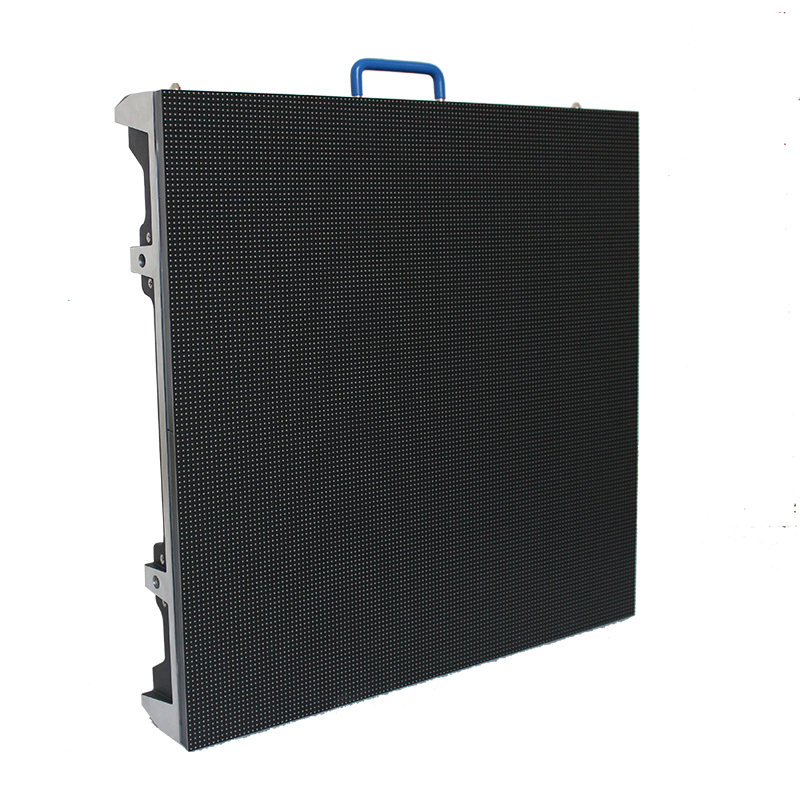

LIGHTWEIGHT AND THIN

The weight of NZ500 series rental LED display cabinet is 7.5kg/cabinet and thickness is only 80mm. It’s lightness and strength would make it widely deployable, portable and easy to use, install, assamble and disassamble.

LINSN NZ500 Rental LED Display Specifications:

Pixel Pitch	2.604mm	2.976mm	3.91mm
Application	Indoor	Indoor	Indoor
Pixel Density	147456	112896	65536
Pixel Configuration	SMD1515	SMD2121	SMD2121
Scan	1/32	1/28	1/16
MAX Power Con	680w/Sq.m	640w/Sq.m	620w/Sq.m
AVG Power Con	350w/sq.m	320w/sq.m	300w/sq.m
Module Dimension	250x250mm	250x250mm	250x250mm
Module Resolution	96x96 dots	84x84 dots	64x64 dots
Cabinet Dimension	500x500x80mm	500x500x80mm	500x500x80mm
Cabinet Resolution	192x192 dots	168x168 dots	128x128 dots
Cabinet Weight	7.5kg	7.5kg	7.5kg
Service Access	Front / RearDetachable	Front / RearDetachable	Front / RearDetachable
Rotation Angle	-15° and +15°	-15° and +15°	-15° and +15°
Brightness (nits)	≥1000	≥1000	≥1000 / ≥5000
Refresh Rate (HZ)	1920-3840	1920-3840	1920-3840
Grey Scale (bit)	16	16	16
Viewing Angle (H/V)	160 / 160	160 / 160	160 / 160
IP Rate	IP54	IP54	IP54
Input Voltage (AC)	110 / 240V	110 / 240V	110 / 240V

PERFECT STRUCTURE

While adhering to the spirit of Innovation, NZ500 Series rental led screen elaborate on the structure design and rigorous quality testing.the product have improved the quality of design, and embody the rule of human-central.

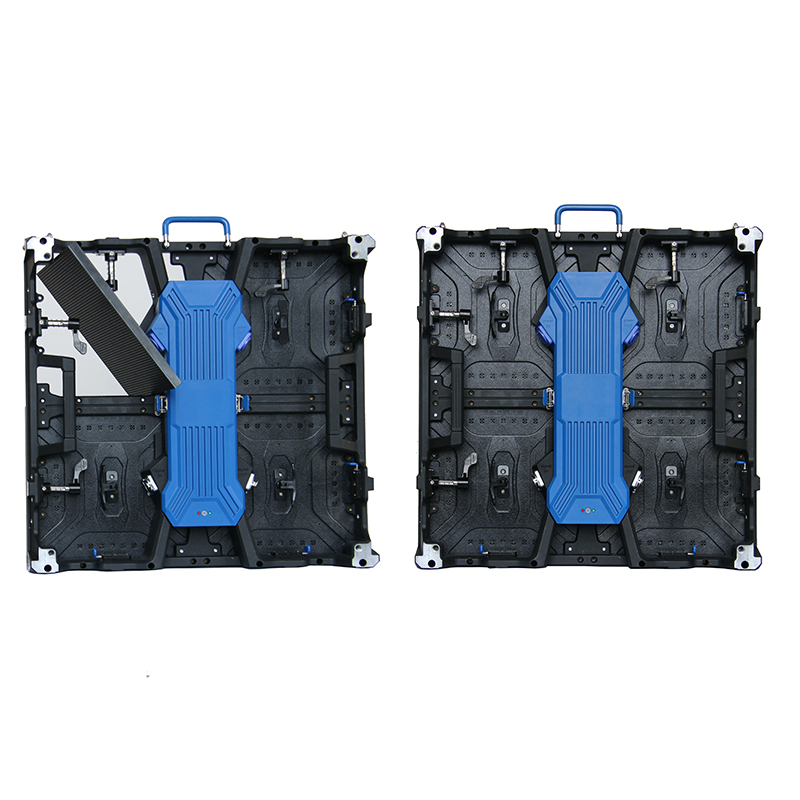

FULL FRONT MAINTENANCE

Front and rear maintenance is optional, NZ500 series rental LED display make the LED display panel easy replacement, assembling and disassembling.
Magetic modules design, one-person work, the modules can be assembled in a few seconds without specical tool.Very easy and simple, save labor force and human resources.

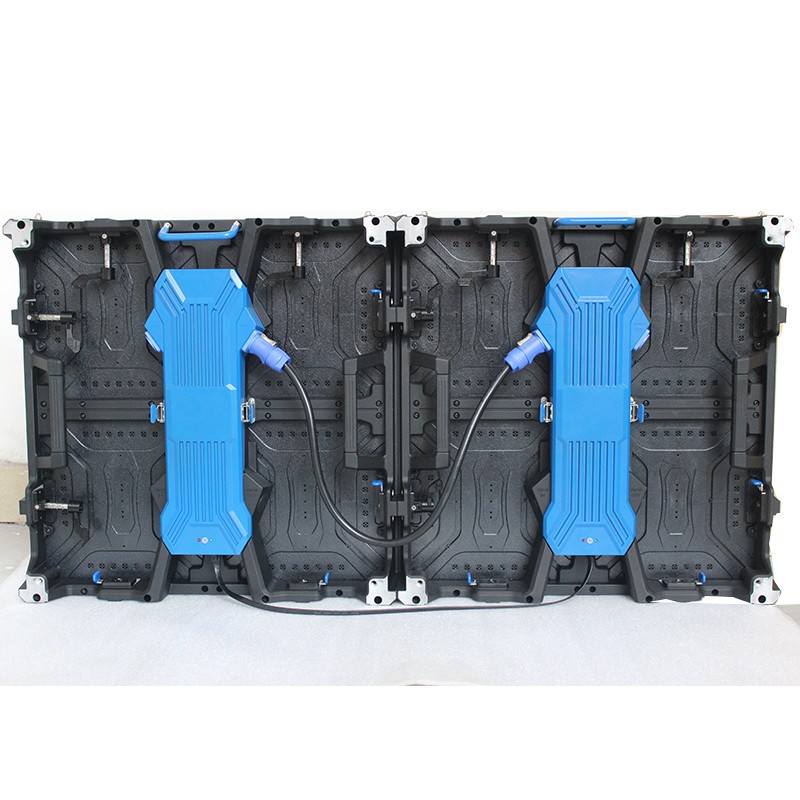

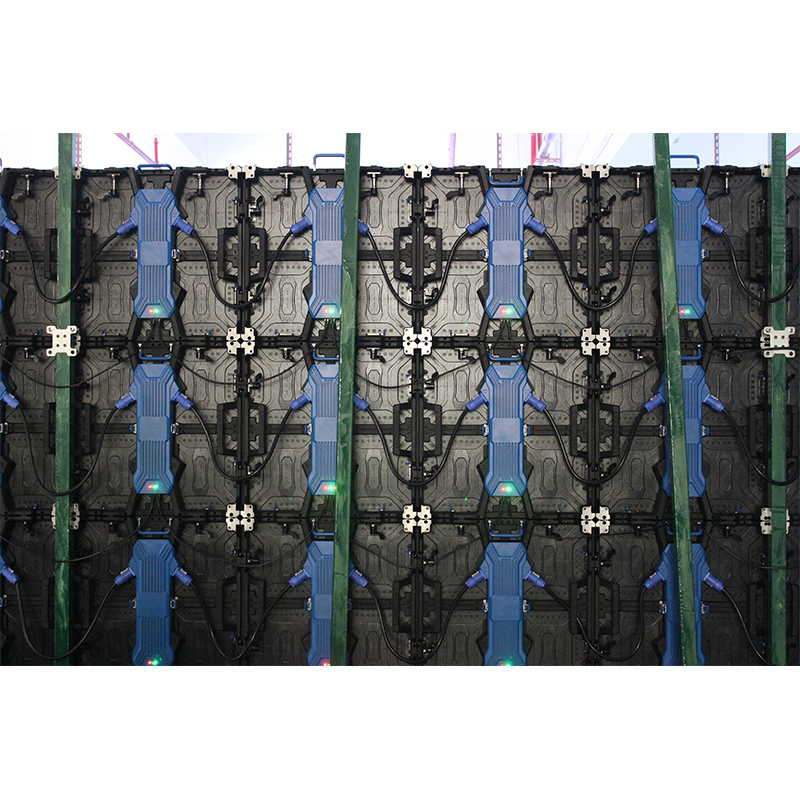

SEAMLESS DISPLAY AND BETTER VISUAL EFFECTS

Seamless splicing design with better cabinet connectors, top / down fast locks, and left/ right fast locks,offering the audience excellent visual experience without any gaps and the LED disply with ultra high flatness.

CURVED INSTALLATION

NZ500 Series Rental LED Display is designed with cured lock to make the LED display has the ability of curved Installation to meet various requirement of installation.
The cabinet can be curved with every 2.5° between -15°and 15°, which can make convex and concave.

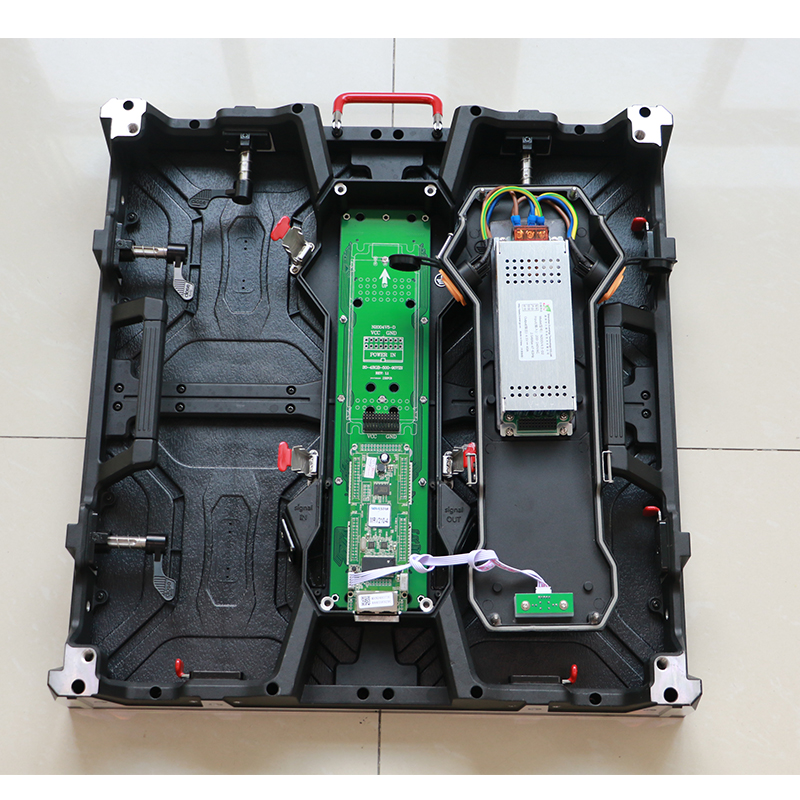

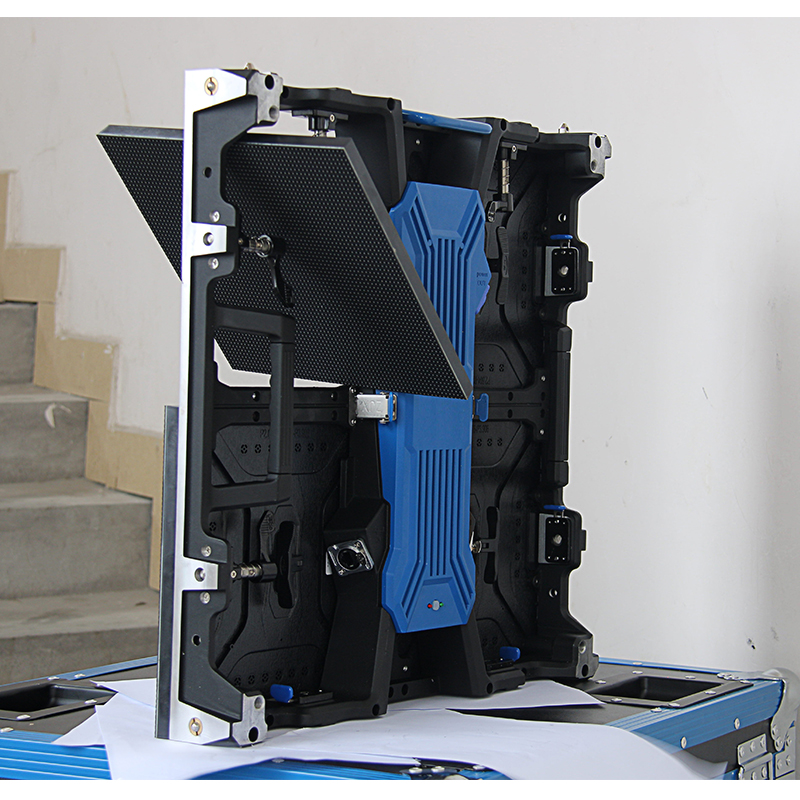

BACK COVER DETACHABLE

NZ500 Series rental LED display adopts the latest structure design with back cover detachable cabinet,the control box can be fully taken out for maintenance. More, assemble and disassemble is easy too.

Carton Packing,Wooden Box Packing,Flight Case Packing

Noramlly, Rental LED Display Cabinet packed by Flight Case Packing, For some special purpose linsn led provide Carton Packing and Wooden Box Packing to save your cost.

linsn led Factory View

LINSN LED has builded a long term relationship with LED Display Material Supply,such as Epistar LED,Kinglight LED, Nationstar LED,Meanwell LED Power Supply,Linsn,Novastar etc.
