Indoor rental led display 480mmx480mm Magnesium Alloy LED Panel

Magnesium Alloy Indoor LED Display Cabinet-480*480mm Features:

1.Super light---About 40% lighter than die-cast aluminum cabinet

2.Fast cooling--excellent heat dissipation performance to protect the modular circuit

3.Anti-interference---Special anti electromagnetic interference function

4.high-strength --- tensile test to reach 300kg，more strength than aluminum

5.Easy installation---Special fast lock,only need 20s to install

6.High precision---seamless splicing after CNC processing

7.High universality---Can be installed arbitrary hole machining, indoor and outdoor

8 .Easy maintenance---can be maintenance from the front

9.High cost-effective---complete production and supply chain

Ph2.5mm Rental LED Display Specifications:

LED Cabinet Specifications:
Pixel Pitch	2.5mm
Pixel Constitution	SMD 3IN1
LED Encapsulation	SMD 2121 Black LED
Module Size	160mm*160mm
Die Casting Aluminum LED Cabinet Size	480mm*480mm
LED Cabinet Resolution	192*192 dots
LED Cabinet Weight	7.5kg/cabinet

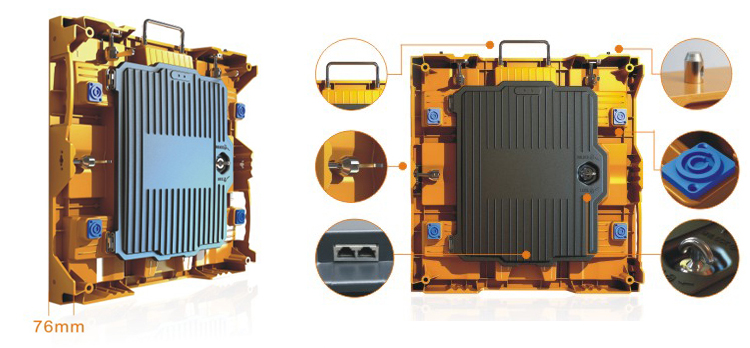

LED Display Cabinet Specifications:

1. Size: W480*H480*D76（mm）

2. Weight: 3.2kg

3. Module: P2，P2.5

4. Material: magnesium alloy

5. Installation: lifting, fixed installation

6.The use of the environment: indoor IP30

7. Included accessories: fast lock, handle, system / power installation plate, connecting piece

8.Cabinet color: 1 black, 2 gold, 3 silver

9.Door color: 1 black, 2 gold, 3 silver, 4 blue, 5 orange

Indoor Rental LED Display Applications:

Accessory Products.

1.Ultra Thin LED Power Supply With CE,RoHs,FCC,UL Approved : 200W/ 5V40A  300W /5V60A

2. Aerial Plug &Data and Power Connector with Reliable Quality for The Stable Signal :20A  3×2.5㎡ National standard,the length of connecting line L=600mm,the  length of plug L=300mm,L=200mm

3. We provide Woode Box Packing and Flight Case Packing : six led display cabinet in one,eight led panel in one,ten led cabinet in one for your choice.

4. Installation way, Fixed Installation, Standing Installation,Hanging Beam For Hanging Installation: one hang one,one hang two,one hang three for your hanging installation.
