P3mm Indoor Right Angle LED Display Module

P3mm Indoor Right Angle LED Display Module

LINSN-P3-IL-192X192
Indoor LED Display Module
2 Years Warranty
CE,RoHS,FCC Approved
Product Description: P3mm Indoor Right Angle LED Module For 90 Degree LED Display Panel With 192mmx192mm Module Size
Inquiry Now

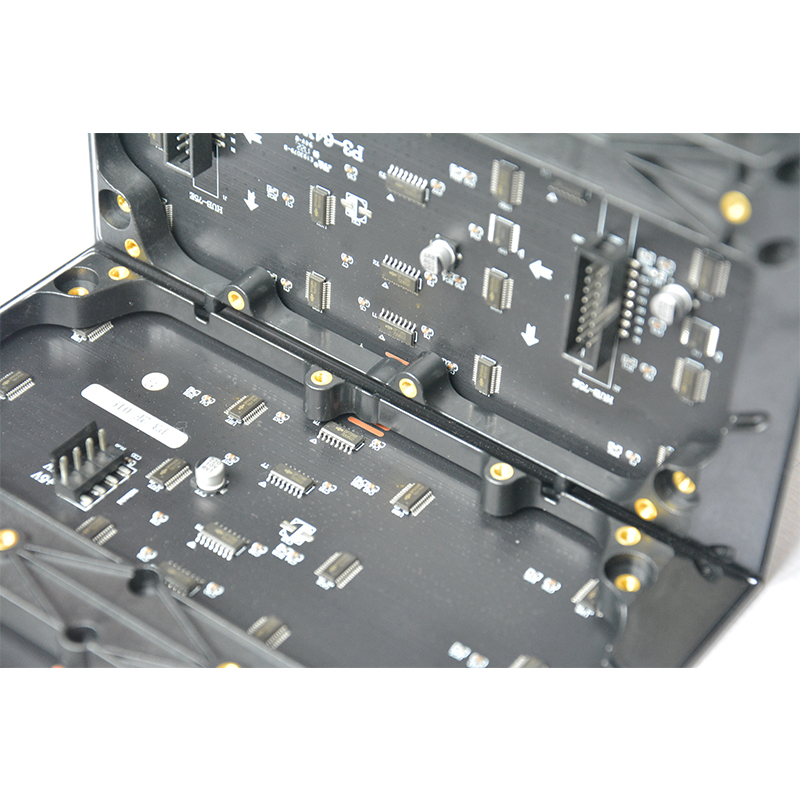

P3mm Indoor Right Angle LED Module For 90 Degree LED Display Panel With 192mmx192mm Module Size

p3 right angle <a href=../index.html target='_blank'>led display module</a>

1. LED Module Including the Data & Power Cables.

2. Epistar LEDs, 2 Years Warranty, Ship in 24 hours,Free Online Support.

3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.

right angle led panel,90 degree <a href=../index.html target='_blank'>led display screen</a>

High Quality LEDs

The LEDs we choose that have the high reliability and contrast,wide view angle and good consistency which meet the need of high brightness,high refresh rate,high gray scale and keep natural color at one time with best color uniformity.

Driving IC

To achieve the best visual performance of our indoor led display,we use the Best Driving IC,such as MBI5124,SUM16136 with high refresh rate,high grey level with latest technology. and config the best Brightness Efficiency by the led screen Software.

P3mm Right Angle LED Panel Specifications:

P3 Indoor Right Angle led display module Features:
Module Specifications
1	Pixel Pitch	3mm
2	Pixel Configuration	SMD3in1
3	Module Resolution	64x64 pixels
4	Module Pixles	4096 pixels
5	Module Size	192x192mm
Specifications
1	Screen Brightness	≥1000cd/m2
2	Driving Method	1/32 scan
3	Mini Viewing Distance	3m
4	Max. Power Consumption	600W/m2
5	Average Power Consumption	250W/m2
6	Gray Level	14bits input, 4096 levels(212)
7	Display Color	16M
8	Frame Frequency	≥60Hz
9	Refresh Frequency	≥1920Hz
10	Uninterrupted Working Hours	≥72 hours
11	Screen Life-span	≥100,000 hours
12	MTBF	≥5,000 hours
13	Discrete Blind Spot Rate	<1/10000
14	Continuous Blind Spot Rate	None
15	Blind Spot Rate	<1/10000
16	Screen Plainness	<±1mm
17	Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
18	Environment Temperature & Humidity	Temperature:-20 Celsius~+60 Celsius Humidity:10%~90% RH
19	Control Mode	Synchronous display with control PC by DVI
20	Control System	DVI video card + full color control card + fiber system( optional)
21	Display Content	Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
22	Interface	Standard Ethernet
23	Transmission Distance	Multi mode fiber <500m, single mode fiber <30km,internet cable <100m

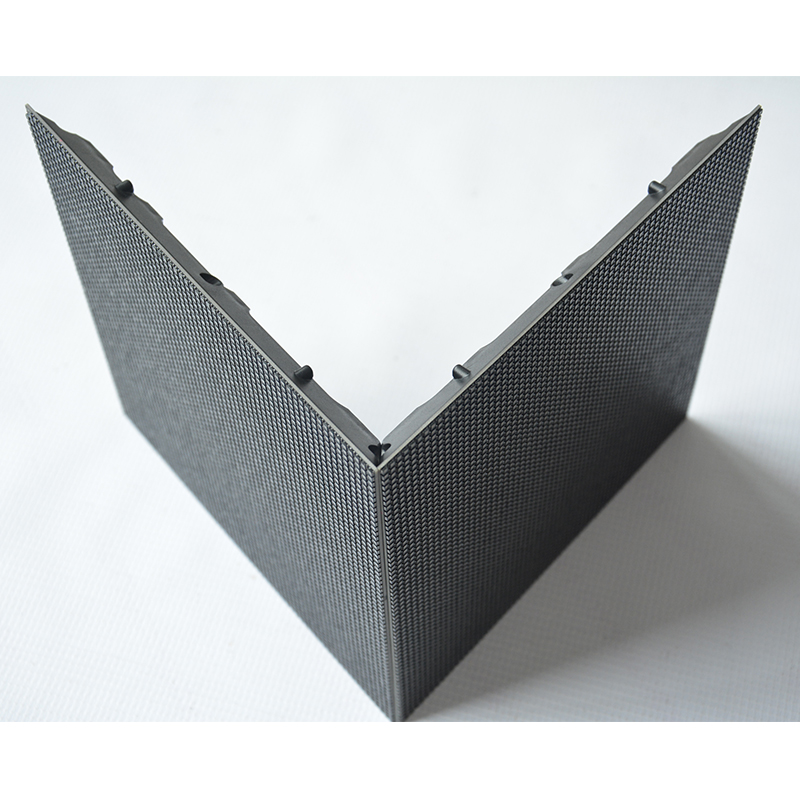

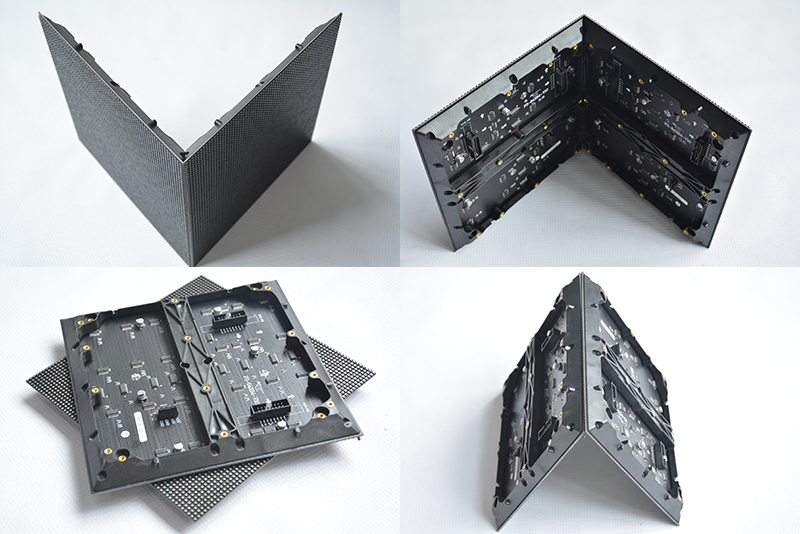

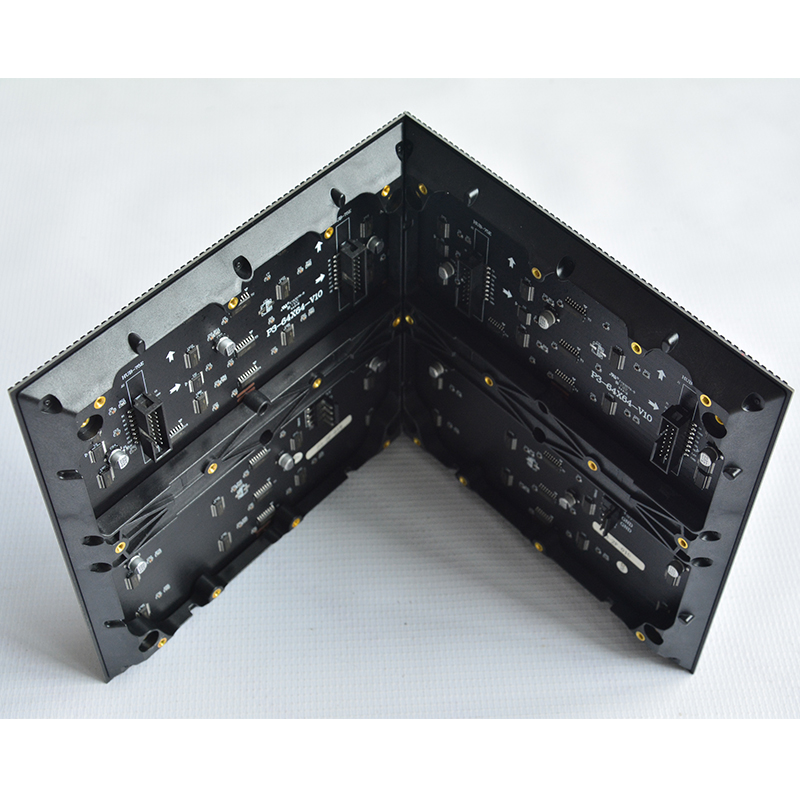

Right Angle LED Display Application:

Right Angle LED Display Module usually used for 90 Degree LED Display Panle to make sure the right angle led screen with no gaps, showing the smooth videos for different advertising purpose.
