INTERFACE

QUANTITY

CONNECTOR

SPEC

INPUT

VIDEO

2

BNC

PAL, NTSC, PAL-M/N, SECAM

1Vpp±3DB(0.7V Video+ 0.3V Sync) 75ohm

VGA

2

DB-15

VESA STANDARD , PC to 1920x1200

DVI

1

DVI- I

VESA STANDARD , PC to 1920x1200 ,HD to 1080p

HDMI

1

HDMI1.3

DVI1.0, HDMI1.3 PC to 1920x1200,

HD to 1080p

VGA/VID/DVI/SDI*

(Optional one of the input)

1

SD/HD/3G-SDI.

1080p 60/50/30/25/24/  720p 60/50 1080i

60/50 1035i 625i  525i

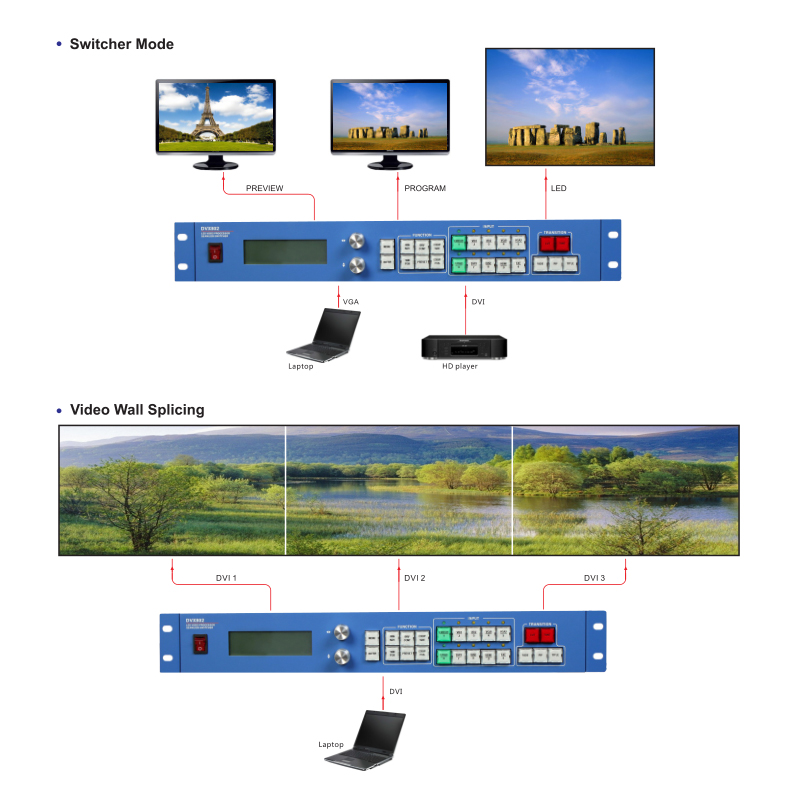

OUTPUT

PREVIEW OUTPUT

VGA

1

Preview

+

Program

+

LEDOUT

Output Resolution:

12000(MAX)x650@60Hz

1350x5760(MAX)@60Hz

VESA Standard

640x480@60Hz 720P@50Hz 800x600@60Hz

1080P@50Hz

1024x768@60Hz 1280x1024@60Hz

1280x1920@60Hz

1080P@60Hz

1440x900@60Hz 1536x1536@60Hz 1

680x1050@60Hz

1920x1200@60Hz

1920x1280@60Hz  2048x1152@60Hza

2304x1152@60Hz

2560x960@60Hz

1366x768@60Hz    1600x1200@60Hz

DVI

1

PROGRAM OUTPUT

DVI

1

DVI/VGA

1

LED OUTPUTOUTPUT

DVI

2

VESA Standard

640x480@60H 720P@50Hz

800x600@60Hz 1080P@50Hz

1024x768@60Hz 1280x1024@60Hz

1280x1920@60Hz  1080P@60Hz 1440x900@60Hz 1536x1536@60Hz

1 680x1050@60Hz   1920x1200@60Hz

1920x1280@60Hz  2048x1152@60Hza

2304x1152@60Hz

2560x960@60Hz   1366x768@60Hz

1600x1200@60Hz

GENERAL

Weight

4.7kg

Dimension

6.5cm(H)x44cm(W)x32cm(D)

Power supply

100VAC – 240VAC 50/60Hz

Power consumption

40W

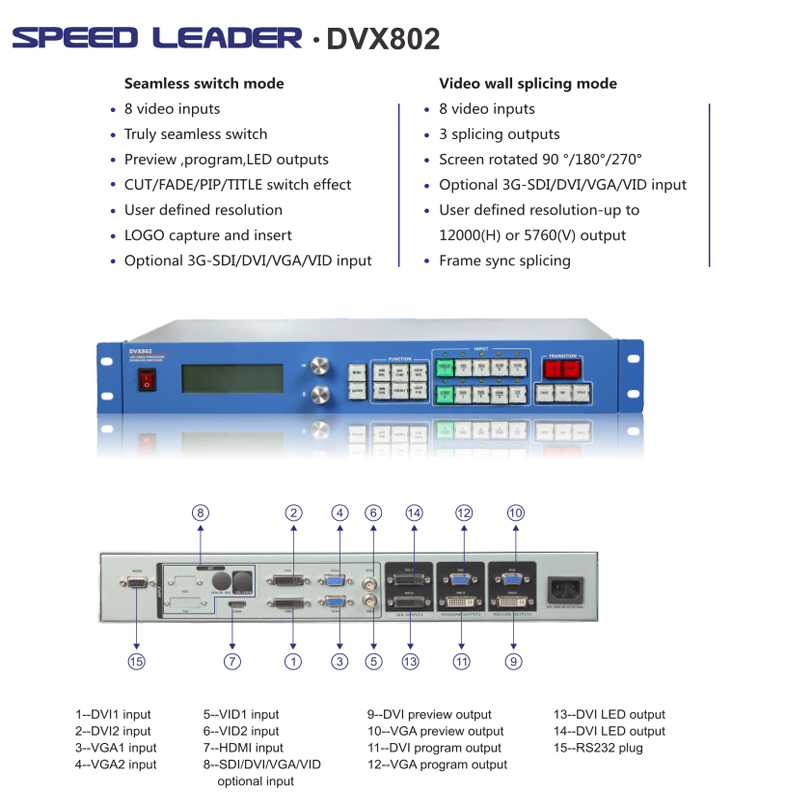

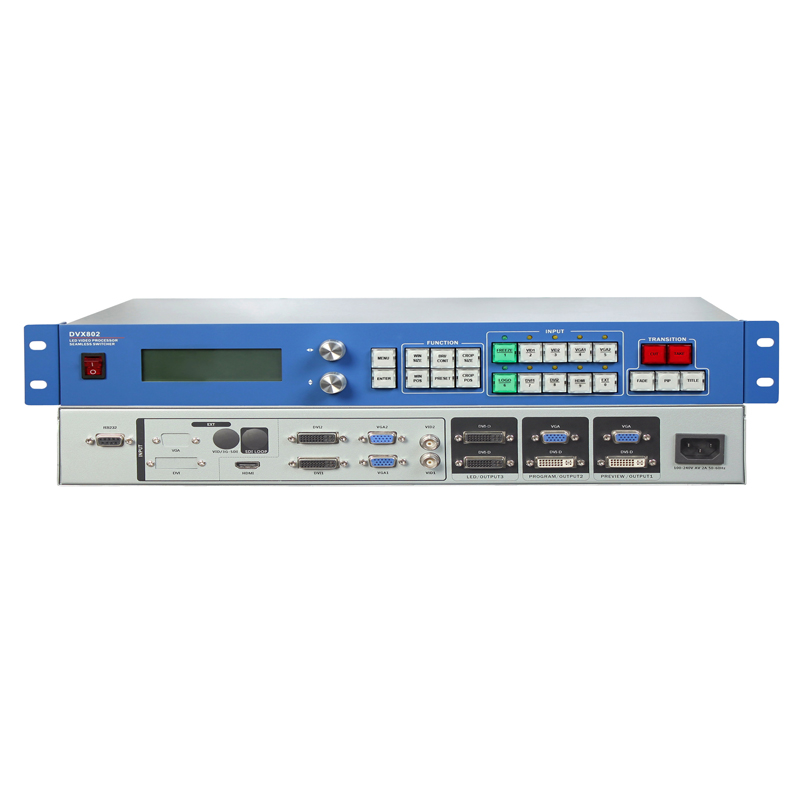

Model

DVX802

Basic

DVX802S

Basic + Expanding 1*SDI input(include SDI Loop)

DVX802D

Basic + Expanding 1*DVI input

DVX802V

Basic + Expanding 1*VGA input

DVX802C

Basic + Expanding 1*VID(CVBS) input
