Indoor Fixed LED Display

Build Your Own 3.91mm Indoor LED Display

Build Your Own 3.91mm Indoor LED Display

Model:UNIT-IF-3.91
Indoor LED Display
2 Years Warranty
CE,RoHS,FCC Approved
Product Description: Build Your Own 3.91mm Indoor LED Display 500mmx1000mm Easily
Inquiry Now

Build Your Own 3.91mm indoor led display 500mmx1000mm

3.91mm Indoor LED Display 500mmx1000mm Materials:

1x Laptop install LEDStudio led control software, You can download from here.

1x linsn ts802D led sending card

（Attention:Now all Receiving Card Need Working With Sending Card）

1x linsn rv908M led receiving card.
2x Meanwell LRS-350-5 LED Power Supply.
8x 250mmx250mm led display module.
4x 5V DC power cables with 2 outputs.
8x Flat Data cable for LED Modules.
2x AC Power cable for LED Power Supply.
1x 5V DC Power cable for led receiver.

After you assembled them together,connect it to your laptop and open the control software-LEDStudio.
1.Setup the right
2.Send the Right RCG files to LED Module
3.Make the Right Resolution for LED Receiver
4.Play your advertising or videos on LED video screen

For this part,after you place the order,we will send you the detailed instruction.

P3.91mm indoor led screen Specifications:

Item	Main Specifications:
Model	UNIT-I-3.91
Type	Indoor
Pixel Pitch(mm)	3.91
LED Configuration	1RGB
LED Type	SMD1212 Black
Module Size(mm*mm)	250*250
Module Resolution(PX*PX)	64*64
Drive Mode	Constant Current Drive
Module Consumption	45W Maximun
Scanning Mode	1/16
Horizontal Viewing Angle(Deg)	140
Vertical Viewing Angle(Deg)	140
Brightness(cd/m2)	800-1200cd
Grey Scale	14 Bits
Refresh Rate(HZ)	>960
Cabinet Resolution(PX*PX)	128*128
Cabinet Size(mm*mm)	500*500
Cabinet Weight(Kg)	7.5 kg
Cabinet Resolution(PX*PX)	128*256
Cabinet Size(mm*mm)	500*1000
Cabinet Weight(Kg)	14.5 kg
Cabinet Thickness(mm)	70
Warranty	2 Years
Certificates	CE,RoHs,FCC

LED Display Module ,LED Receiving Card, LED Power Supply Connnection

Aslo you need a Screwdriver to assemble all parts together as below:

After you assembled them together,connect it to your laptop and open the control software-LEDStudio.

1.Setup the right
2.Send the Right RCG files to LED Module
3.Make the Right Resolution for LED Receiver

4.Play your advertising or videos on LED video screen

For this part,after you place the order,we will send you the detailed instruction.

To make such a led video screens, you might not need much experience on engineer to create an awesome led display panel.it looks very cool when you make a really cool-looking led screen.the good news is that we provide all necessary led display spare parts with instruction, you can do this with a minimum of efforts. and using parts that are easily purchased at our online store: www.ledcontrolcard.com or your local electronics stores.whether you are trying to make the commercial led display or just get creative ideas.this is every easy to make yourself led video screen.

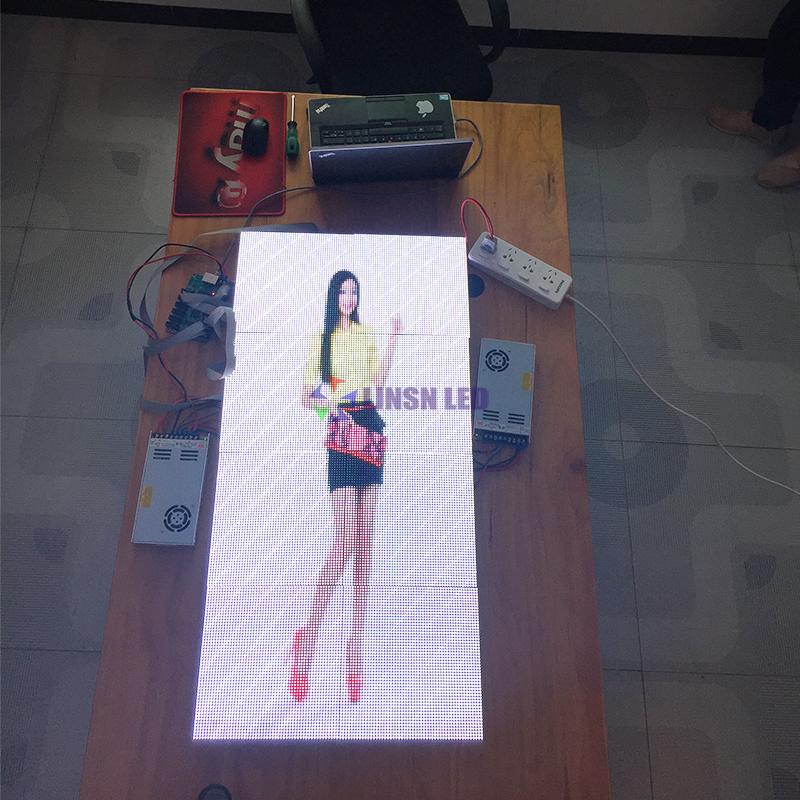

here it is the demo we made a led screen size of 500mmx1000mm.one is 3.91mm indoor led display, another is 4.81mm outdoor led screen. which one do you like?

P4.81mm outdoor led display 500mmx1000mm

P3.91mm Indoor LED Display 500mmx1000mm

Let us try it to make your own led dislays,Once you’ve done this, you’re pretty much ready to put your led screen out and enjoy the benefits of your effects for your business.Of course, you can always purchase the finished led video display from led display factories or reseller if you don’t want to do the work by yourself, but it’s really nice to know that the job is very easy if you think you might want to build it on your own. any questions about the configuration or assembling,you can contact our engineer department by support@linsnled.com
