The domestic LED display rental market began in 2005, and the 2008 Beijing Olympic Games reached its peak. The LED display rental market has developed rapidly for 4 or 5 years; the application fields are mainly in large-scale cultural performances, high-end conferences, and large-scale exhibitions. With the growing market size, the current leading LED display companies regard the rental market as a key development direction and have developed rapidly in recent years.
This guide is to let customers better understand the LED rental screen, the content will be introduced one by one from the following 6 aspects.
With the rapid advancement of science and technology, high-tech electronic products are increasing with the market demand. In the LED industry, LED displays have been used more and more widely in the market, and their superior advertising effects have been recognized by more and more audiences, which has led to the demand of LED rental screen market, in many conferences, exhibitions, In the occasions such as performances, the use of LED rental screens can be seen everywhere. LED rental screens have become an important choice for many merchants to be convenient, efficient and cost-effective.
Rental LED Display is a display specially designed for stage performances and literary events. It is generally represented by the form effect of the Rental, so it is named LED rental screen.
The LED rental display is designed as a custom die-casting aluminum or die-casting magnesium alloy box with light, thin and quick installations as its most important features. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for large-area rental and fixed installation applications. And using synchronous control system processing, can accept DVI, VGA, HDMI, S-video, composite, YUV and other video input signals, free to play video, graphics and other programs, play in real-time, synchronous, clear information transmission . The color is realistic and the adaptability is strong.
1. The standard tends to be standardized:
The easy-to-install, easy-to-calculate area (such as 500mm*500mm and 500mm*1000mm) is an irreversible development trend of the domestic rental market.
2. The clarity is getting higher and higher:
The main trend of using LED main screens and color screens on the market is to develop with high precision. The brightness requirements can be debugged and the control system requirements are uniform for use and control in place.
3. Universality enhancement:
One-screen multi-purpose, can be used as the main screen, color screen and floor tile screen is a development direction, that is, the versatility of strengthening product functions is the main development trend of such products in the future market.
4. Fast and safe installation:
Fast and accurate installation of fast products; self-locking mechanism to eliminate misuse
5. Easy maintenance, can be dismantled and replaced separately:
With power supply and signal working status self-checking function, it can display the power and signal working status of each product in real time. When the product does not display the screen, it can quickly determine the problem and quickly make corresponding repairs.

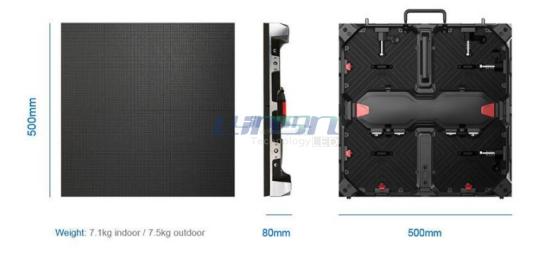

6. Light weight, thin cabinet:
The weight of a single box is less than 9 kg, the left and right occupied space is small, saving the stage space and transporting the packing space.
Compared with fixed installation screens, LED rental screens mainly differ in that they need to be moved frequently, repeatedly disassembled and installed, so the requirements for products are high, and they are all in product shape design, structural design and material selection. Pay attention to it, there are three main differences between the two:
First, the fixed installation screens are installed in sequence, the size is very standardized, and the rental screen is required to be easily installed, disassembled, and transported repeatedly, and the staff can quickly complete the work and reduce the labor cost of the customer;
Second, the rental screen is highly resistant to light bumps in transportation and handling, and the size is in line with the loading system of the transport, especially the handling of intercontinental, which is greatly different;
Third, because of the need for handling, the design of the LED screen itself must be able to withstand the sturdiness of handling. Otherwise, it is easy to collide during the handling process, causing LED damage. Even if a LED lamp is broken, it will affect the whole. When providing rental screen services for customers, the difference between the rental screen and the fixed installation screen is that the fixed installation screen - installed, the effect is immediate, and the rental display must show a perfect display effect throughout the concert. This is also the point that customers value most.
Screen Body
The display screen is made up of a number of display unit cabinets. The screen body can be combined with horizontal and vertical unit boxes according to different size requirements. The LED display accepts the full digital signal output from the controller transmitted from the fiber for decoding and display. The display unit case is provided with an LED lighting module, a driving part, a switching power supply, a cooling fan, and the like.
Computer
The commonly used notebook for rental and the external sending card are used together;
Led Controll System
The general screen is not too big, only one card is used. The receiving card is actually calculated according to the length and height of the screen. We will give a suitable amount to ensure the display effect and cost (individual color display). The screen project can be remotely controlled or wirelessly controlled according to actual requirements.
Power distribution cabinet
Don't configure it in the hardware store for the sake of cheapness. It is very unprofessional. Once it is not good, it will have a great impact on the life and normal use of the screen. We recommend that customers find a professional manufacturer to buy, or We are purchasing.
Video processor
General fixed installation of small screen if the information update is not very frequent, do not do live broadcast can be used, if it is a large screen or to do live broadcast, you need to buy;
Multi-function card
It can provide parameters such as temperature, humidity and brightness, and can realize automatic brightness adjustment. Customer configuration is recommended;
Amplifier and audio
According to the installation environment, the indoor needs to be waterproof, customers can buy it themselves, or we can provide it together;
Main connecting wire
Mainly the power electric power to the power distribution cabinet, the power distribution cabinet to the screen cable, and the main computer cable to control the computer to the main screen, these are generally prepared by the customer. The wires between other screens are provided by us;
Steel frame structure
We provide CAD reference design drawings of full-color led display, which can be produced locally or by our company.
With the concentration of the LED display industry, LED displays are constantly evolving in the market, providing a beautiful stage for large-scale events and celebrations. With the continuous development of electronic technology, LED displays have been sought after by the majority of users, so the popularity of LED displays is also growing.
l Sports Venues
Nowadays, LED display screens have become the main means of game information display and live broadcast of games. They have gradually replaced traditional lighting and CRT behind display screens. LED display screens in modern stadiums have become essential game facilities. .
l Outdoor Advertising
In addition to the previous single large indoor and outdoor led display as advertising media, cluster LED display advertising system, train LED advertising display release system, etc. have also been adopted and are being widely promoted.
l Stage Rental
Indoor and outdoor stage background, concerts, large-scale events, large opera houses, theaters, hotels, auditoriums, multi-purpose halls, lecture halls, conference rooms, entertainment venues, di bars, nightclubs, etc., these with the stage LED display The screen is also inseparable.
l Exhibition Rental
LED display large screen as one of the important service contents provided by the company's corporate exhibition organizers, to provide users with their own brand culture and product use. There are also studios and monitoring rooms. Nowadays, in the radio and television studios and security monitoring rooms, LED displays also play an important role.
l Wedding Rental
We know that the application of stage LED display rental market such as weddings and concerts has a wide range of needs.
l Hotel Rental
Now more and more companies open annual conferences, conferences, thank-you meetings, etc. When they book a conference venue, they will ask if there is an LED display in the hotel venue. If there are any, they will give priority to these venues; as the frequency of LED display is increasing There will be more and more hotels for LED display rental applications.
First, the quality of the led rental screen.
Due to the flatness, brightness and viewing angle of the LED display, the reproducibility of the color, and the presence or absence of dead spots, these will affect the playback effect of the stage LED display, so the quality of the performance will cause a lot of atmosphere on the scene of the performance. Great impact.
Second, the issue of the reputation of led rental screen companies.
The rental company must have a professional stage LED display rental technology engineering team. The selection must be a first-class stage rental equipment. In terms of customer service, the customer's needs must be put in the first place, and the customer's needs should be met as much as possible. If you don't handle these preludes, it will be a very troublesome thing to collect the final payment later.
Third, the price of led display rental.
The price of the stage LED display rental, the current market price is about USD 500-1500 per square meter, but the actual budget also needs to calculate the price according to the length of the lease, screen size and type, in order to give a reasonable offer.
Fourth, the stage led rental screen must ensure a good use of the environment.
The stage LED rental screen is mainly composed of a control board, a switching power supply, a light-emitting device, etc., the life and stability of all these components are closely related to the working temperature.
1. If the actual working temperature exceeds the scope of use specified by the product, not only will its life be shortened, but the product itself will also be seriously damaged.
2. In addition, the threat of dust cannot be ignored. Working in a dusty environment, because the PCB absorbs dust, the deposition of dust will affect the heat dissipation of the electronic components, which will cause the temperature of the components to rise, resulting in a decrease in thermal stability or even leakage, which may cause burns in severe cases. Dust also absorbs moisture, which can corrode electronic circuits, causing some short-circuit problems that are difficult to check. Therefore, pay attention to keep the studio clean, avoid dust, and prepare in advance.
